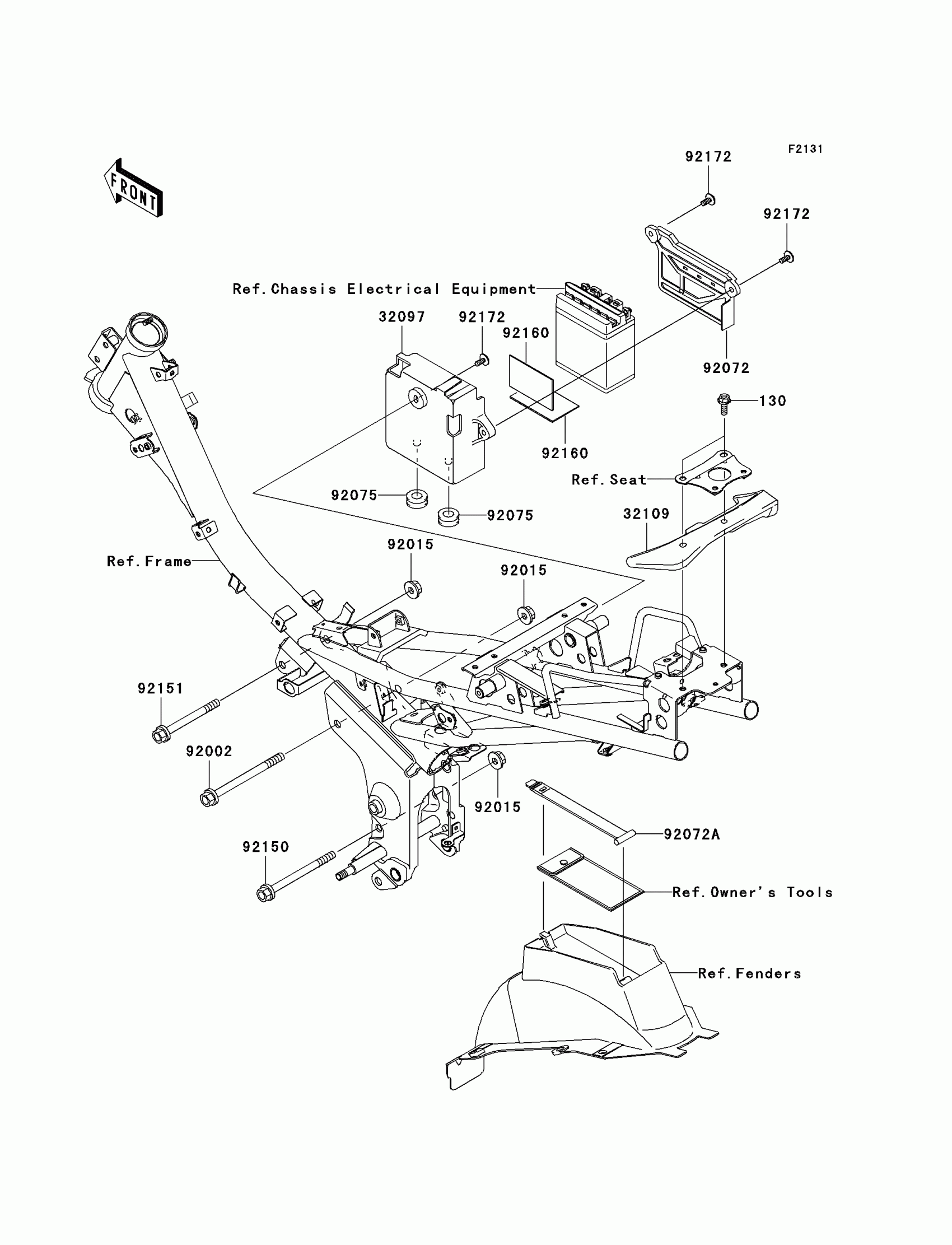

Kawasaki AN112 Frame Fittings Diagram

Description

Price

130

BOLT-FLANGED,8X20

130BA0820

$3.04

32097

CASE-BATTERY

32097-1169

$7.44

32109

GRIP-FRAME,RR,G.SILVER

32109-0009-4K

$84.23

92002

BOLT,FLANGED,10X130

92002-1087

$9.02

92015

NUT,FLANGED,10MM

92015-1180

$3.29

92072

BAND,BATTERY

92072-1345

$4.93

92072A

BAND,TOOL

92072-1424

$1.10

92075

DAMPER RUBBER

92075-051

$2.99

92150

BOLT,FLANGED,10X120

92150-1831

$6.03

92151

BOLT,FLANGED,10X100

92151-1196

$4.17

92160

DAMPER,BATTERY

92160-1292

$1.39

92172

SCREW,6X14

92172-0055

$0.44
