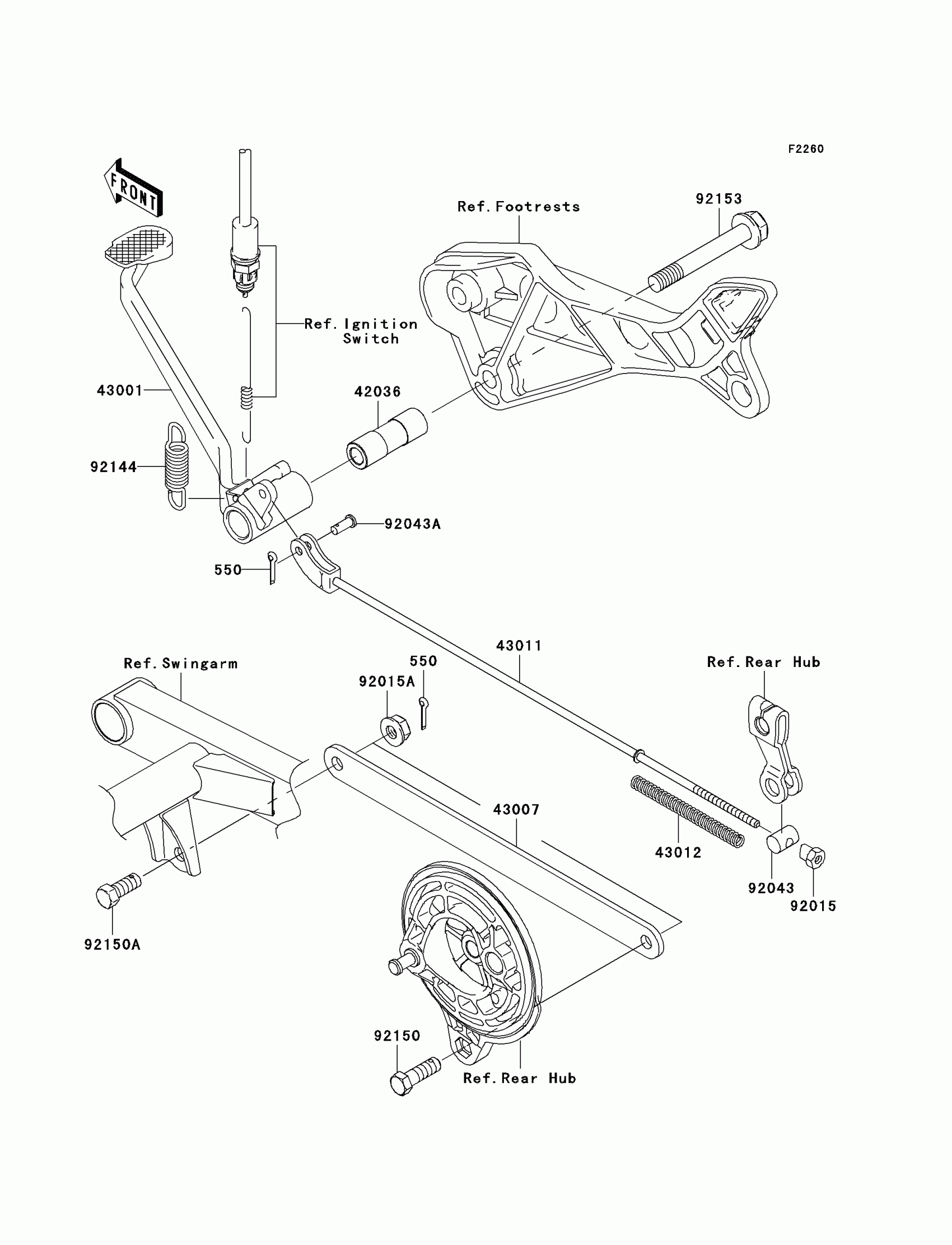

Kawasaki AN112 Brake Pedal Diagram

Description

Price

550

PIN-COTTER,2.0X18

550AA2018

$1.80

42036

SLEEVE

42036-1332

$9.12

43001

LEVER-BRAKE,PEDAL

43001-1443

$20.14

43007

ROD-TORQUE

43007-1202

$4.24

43011

ROD-BRAKE

43011-1177

$15.19

43012

SPRING,BRAKE ROD

43012-001

$3.54

92015

NUT,BRAKE ROD

92015-042

$4.67

92015A

NUT,FLANGED,10MM

92015-1428

$3.81

92043

PIN,BRAKE ROD

92043-0065

$5.17

92043A

PIN,6X12.8

92043-1542

$0.66

92144

SPRING,BRAKE PEDAL RETURN

92144-1910

$2.14

92150

BOLT,10X32

92150-1872

$5.42

92150A

BOLT,10X25

92150-1873

$4.02

92153

BOLT,FLANGED,12X88

92153-0820

$8.08
