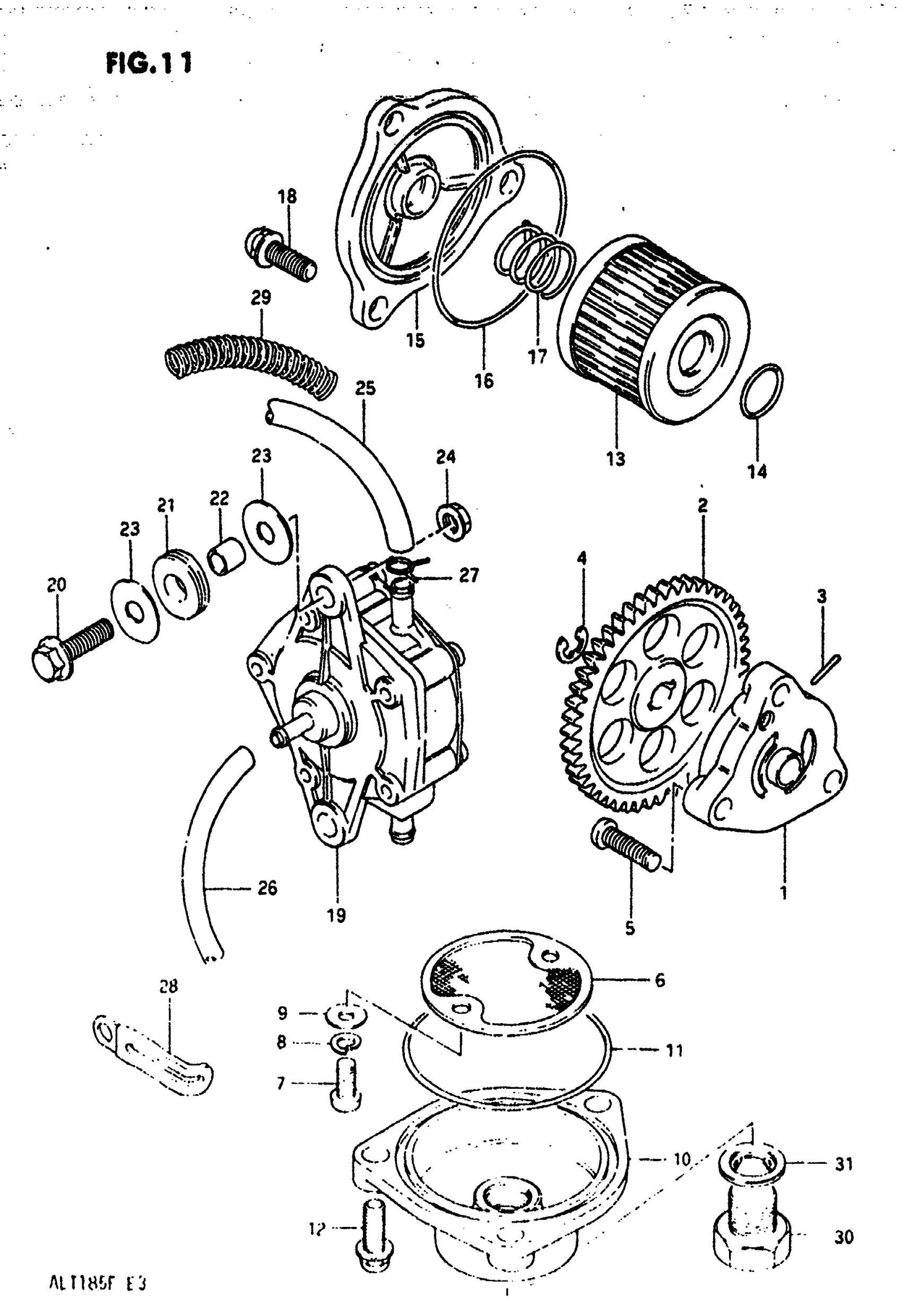

Find the part on the OIL Pump - Fuel Pump diagram for your 1985 Suzuki ALT185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Suzuki ALT185 OIL Pump - Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 16400-18900.

16400-18901

1
Out of stock

2

GEAR, DRIVEN (NT:30)

16331-18900

1
Out of stock

3

PIN

09261-02008

1

$1.77

In stock

4

1

$1.52

In stock

5

3

$2.22

In stock

6

STRAINER, ENGINE OIL

16520-05202

1

$5.95

In stock

7

2

$1.55

In stock

8

LOCK WASHER This part replaces 08321-21056.

08321-0105A

2
Out of stock

9

2

$1.97

In stock

10

CAP, OIL STRAINER This part replaces 16523-24400.

16523-18A00

1
Out of stock

11

1

$3.08

In stock

12

BOLT This part replaces 01547-06208.

01547-06207

3
Out of stock

13

FILTER, ENGINE OIL

16510-05240

1
Out of stock

14

O RING

09280-13004

1
Out of stock

15

CAP

16512-18900

1
Out of stock

16

O RING

09280-54001

1
Out of stock

17

SPRING

09440-18002

1
Out of stock

18

BOLT This part replaces 01547-06165.

01547-0616B

3
Out of stock

19

1

$88.22

In stock

20

BOLT This part replaces 01517-06258.

01550-06257

2
Out of stock

21

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

2
Out of stock

22

SPACER

09180-06038

2

$2.16

In stock

23

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

4
Out of stock

24

2

$2.18

In stock

25

1

$8.88

In stock

26

1

$13.49

In stock

27

CLIP

09401-10401

2

$1.55

In stock

28

1

$1.89

In stock

29

SPRING This part replaces 09440-13017.

09440-13043

1
Out of stock

30

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

1
Out of stock

31

GASKET

09168-14004

1

$1.96

In stock
