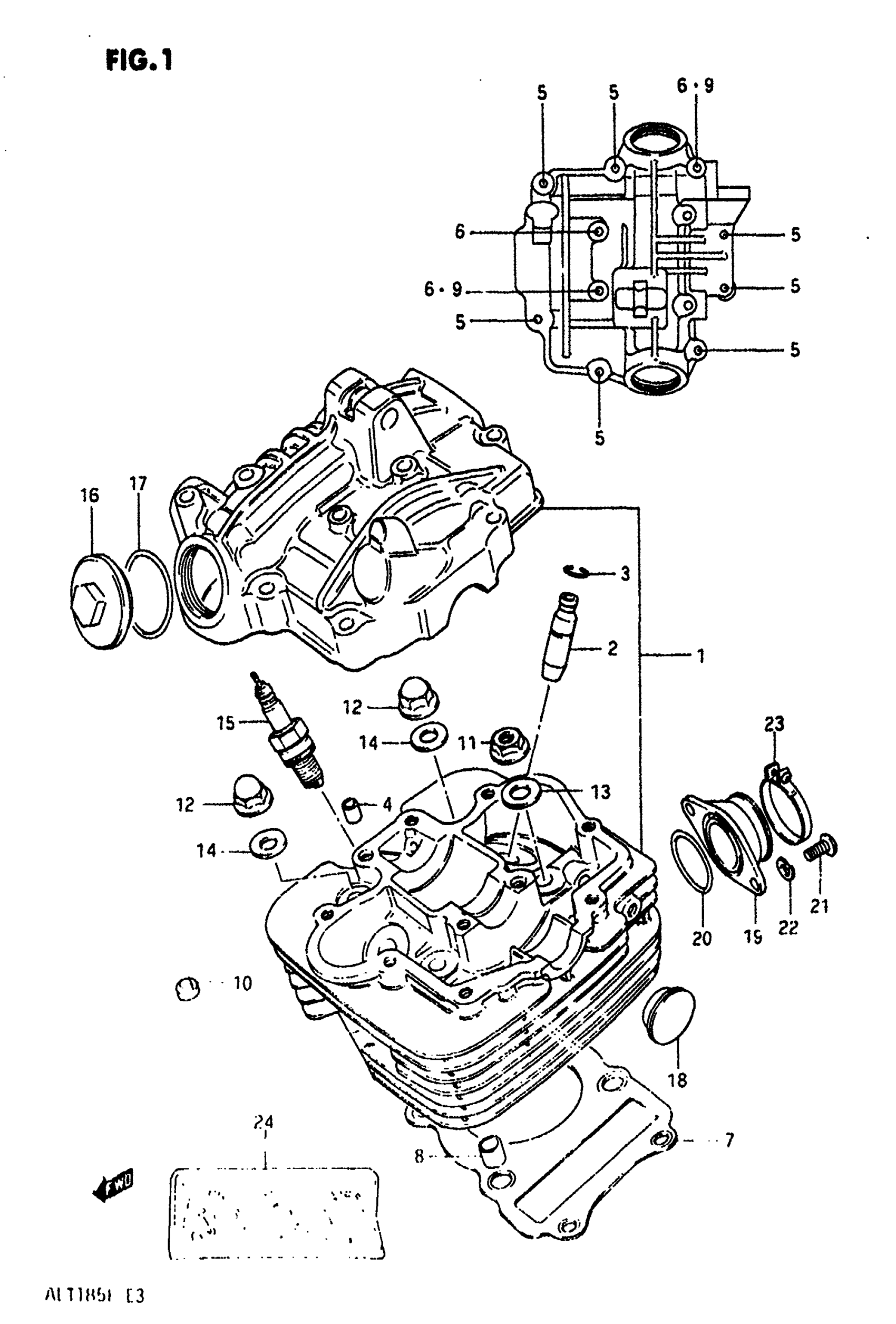

Suzuki ALT185 (1985) CYLINDER HEAD Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 6 This part replaces 11100-24401.

11100-24403

Unavailable

2

GUIDE, VALVE (0S:0.3)

11115-05270

$31.58

3

.RING (10X85)

09381-10004

$1.41

4

PIN

09206-08001

$1.82

5

BOLT This part replaces 01517-06358.

01550-06357

$2.80

6

BOLT This part replaces 01517-06608.

01550-06607

$4.53

7

GASKET, CYLINDER HEAD This part replaces 11141-24400.

11141-18A00

$13.59

8

PIN

04211-11169

$1.82

9

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

$2.09

10

PAD, RUBBER

11151-45000

$3.79

11

NUT This part replaces 09159-08031.

09159-08034

$1.66

12

NUT

09159-08029

$5.51

13

WASHER

09160-08039

$1.95

14

GASKET This part replaces 09168-08012.

09168-08013

$2.80

15

SPARK PLUG (NGK,DR7EA) This part replaces 09482-00182.

09482-00398

$2.80

15

SPARK PLUG (DENSO,X22ESR-U) This part replaces 09482-00183.

09482-00222

$5.08

16

CAP INSPECTION This part replaces 11175-37111.

11175-18920

$11.67

17

.O RING (D:3,ID:29.5)

09280-30001

$1.70

18

PLUG, HEAD

09241-22002

$4.86

19

PIPE, INTAKE

13110-18900

$38.67

20

O RING

09280-32006

$2.06

21

SCREW This part replaces 02112-06168.

02112-06167

$1.46

22

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

23

CLAMP This part replaces 09402-42306.

09402-42303

$4.52

24

GASKET SET | OPT This part replaces 11400-24820.

11400-24823

Unavailable
