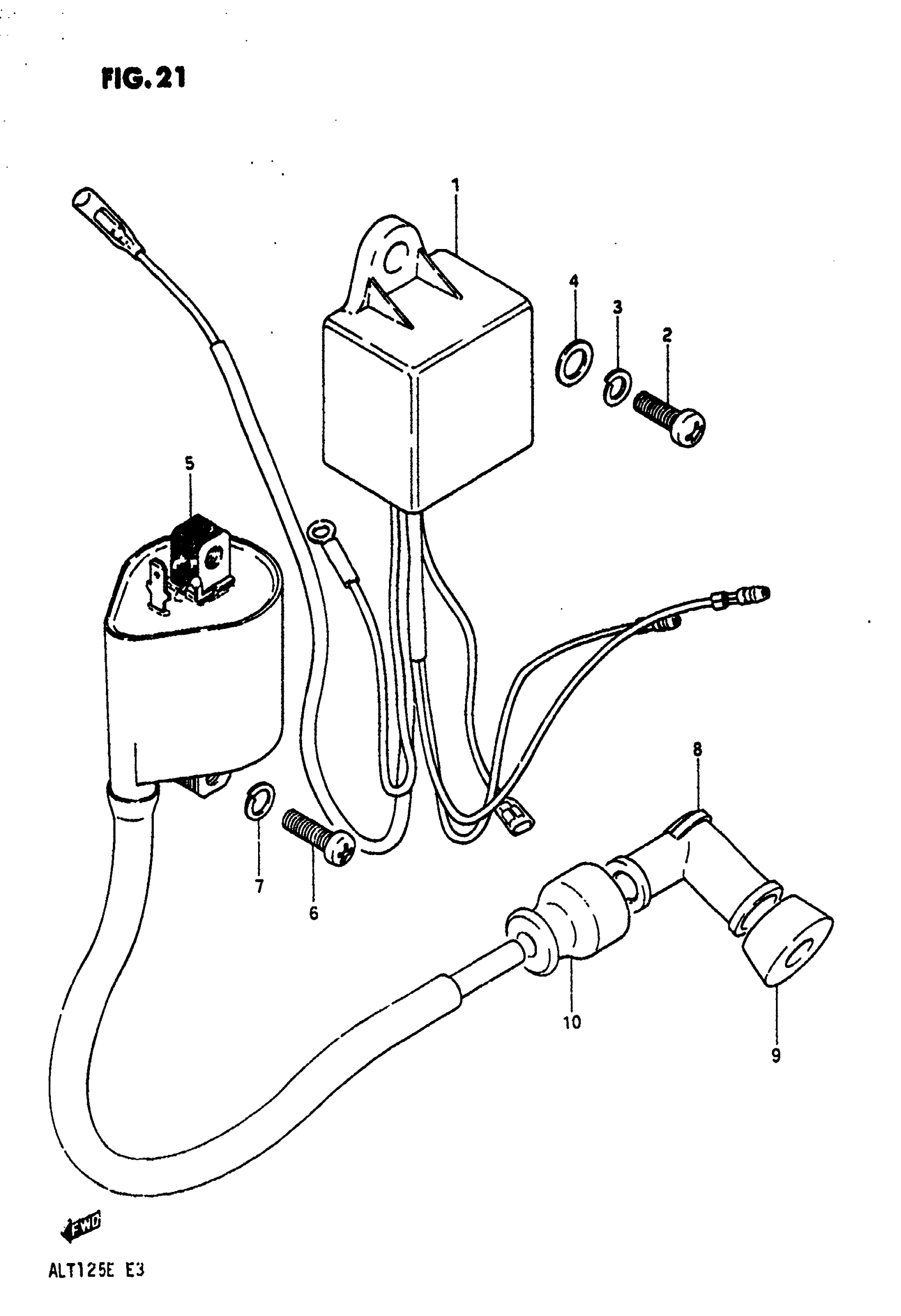

Suzuki ALT125 (1984) ELECTRICAL Diagram

#

Description

Price

1

C.D.I UNIT This part replaces 32900-24310.

32900-24401

Unavailable

2

SCREW This part replaces 02112-06168.

02112-06167

$1.46

3

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

4

WASHER This part replaces 08322-21068.

08322-01067

$1.94

5

COIL ASSY,IGNIT This part replaces 33410-24310.

33410-09412

Unavailable

6

SCREW This part replaces 02112-06208.

02112-06207

$1.83

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

8

CAP, SPARK PLUG This part replaces 33510-22010.

33510-97313

$14.10

9

SEAL, SPARK PLUG

33541-38210

$4.60

10

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.15
