1984 Suzuki ALT125 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1984 Suzuki ALT125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

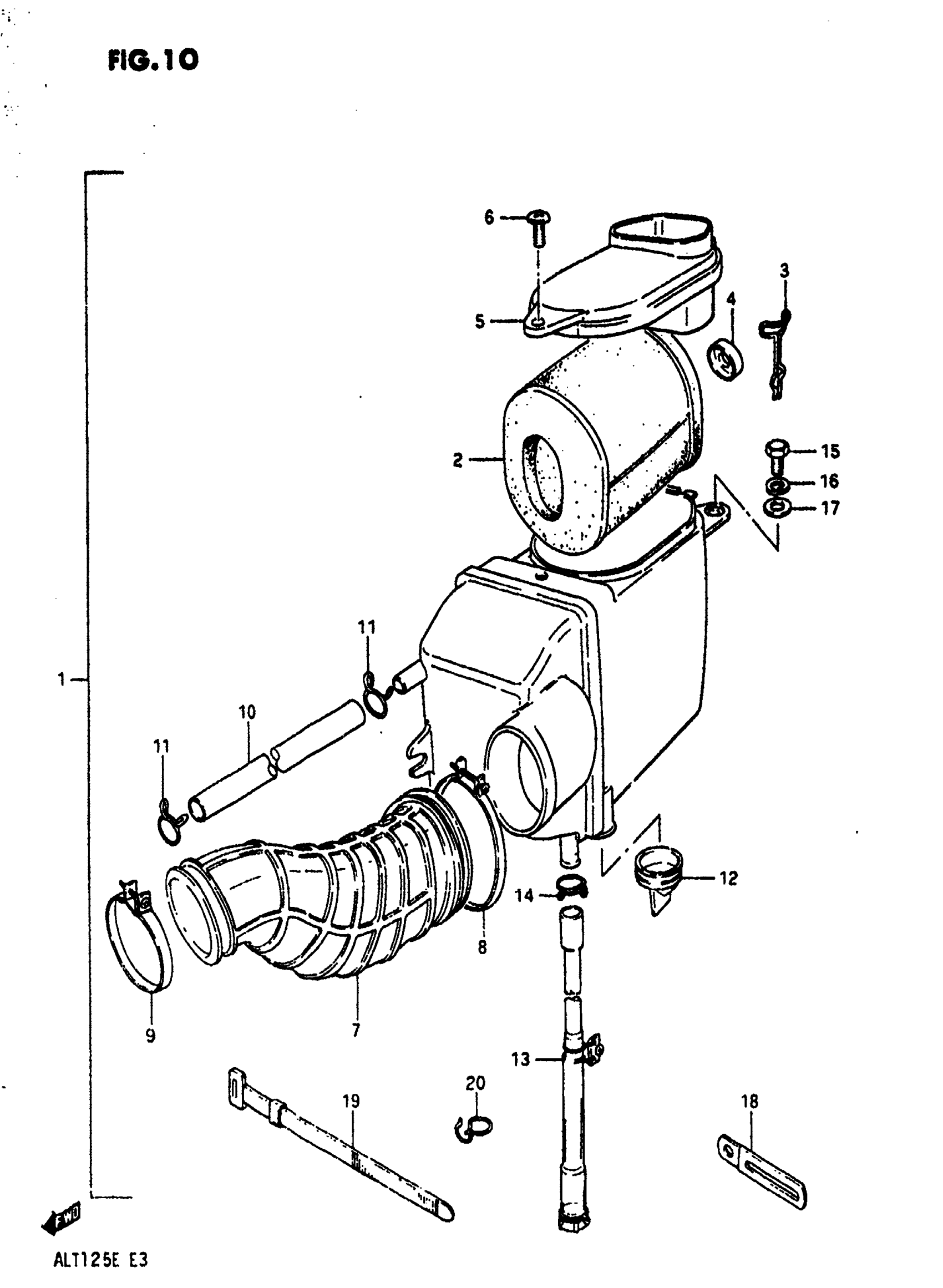

1984 Suzuki ALT125 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR | MODEL D

13700-18900

1
Out of stock

1

CLEANER ASSY, AIR | MODEL E; Includes Item(s) 2 - 14 This part replaces 13700-18910.

13700-18923

1
Out of stock

2

FILTER This part replaces 13781-18900.

13780-18920

1
Out of stock

3

SNAP PIN

13823-20400

1
Out of stock

4

WASHER

13796-20400

1
Out of stock

5

CAP This part replaces 13740-18900.

13740-18920

1
Out of stock

6

SCREW

02142-06167

2
Out of stock

7

HOSE, OUTLET

13881-18900

1
Out of stock

8

CLAMP This part replaces 09402-70306.

09402-70306-XC0

1
Out of stock

9

CLAMP This part replaces 09402-48206.

09402-48208

1
Out of stock

10

HOSE, BREATHER,L:270 | MODEL D

13851-18900

1
Out of stock

10

NO DESCRIPTION AVAILABLE | MODEL E This part replaces 13851-18910.

13850-18911

1
Out of stock

11

CLIP This part replaces 13828-37300.

09401-16401

2
Out of stock

12

HOSE, DRAIN (1)

13873-18900

1
Out of stock

13

NO DESCRIPTION AVAILABLE This part replaces 13870-00220.

13870-18910

1
Out of stock

14

CLIP

09401-14301

1
Out of stock

15

3

$2.10

In stock

16

3

$2.28

In stock

17

WASHER This part replaces 08322-21068.

08322-01067

3
Out of stock

18

CLAMP This part replaces 09404-06412.

09404-06039

1
Out of stock

19

CLAMP, CARBURETOR AIR VENT | MODEL D

09407-18401

1
Out of stock

20

CLIP, DRAIN HOSE This part replaces 13821-18901.

13821-18902

1
Out of stock
