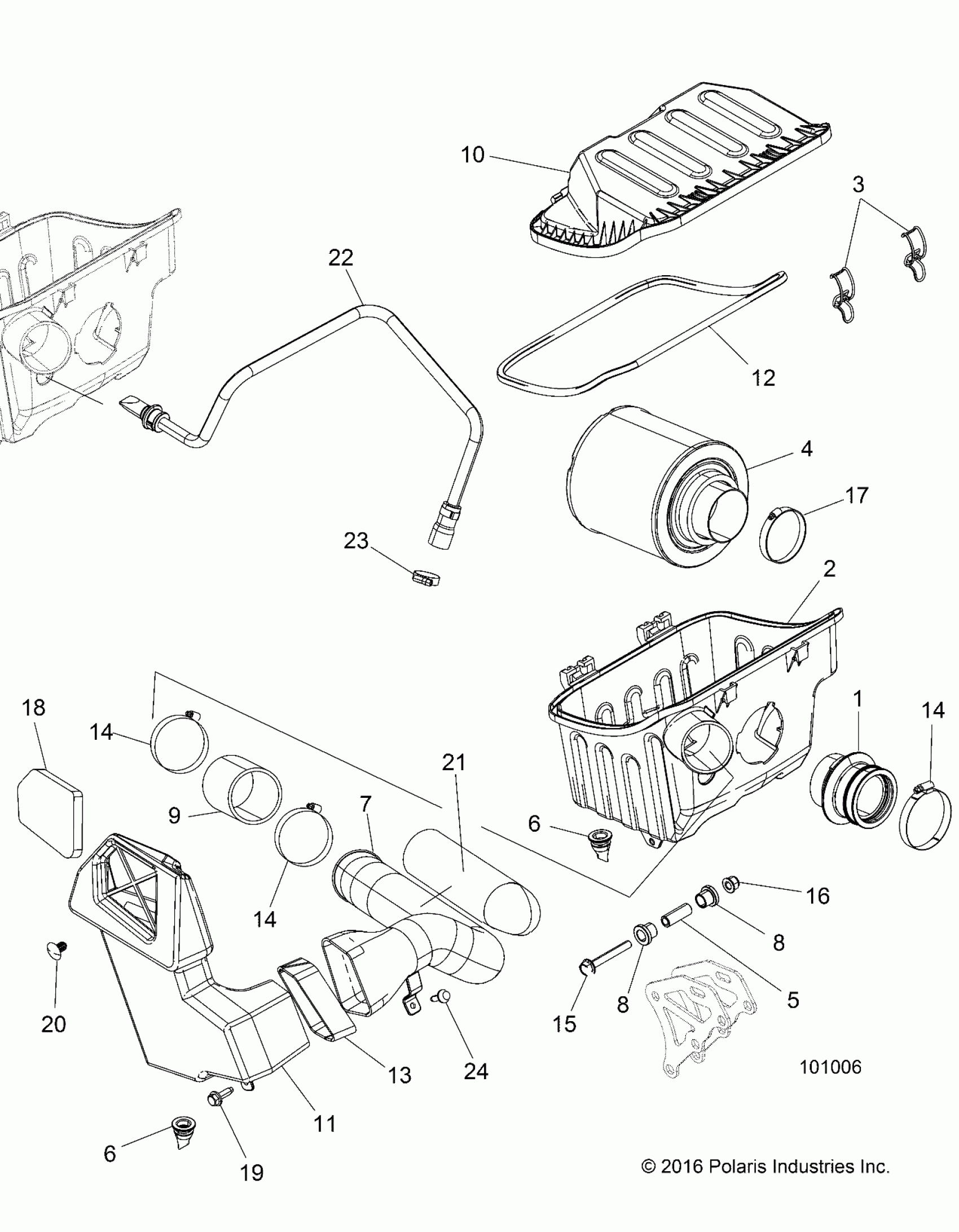

Polaris ACE 570 (R08) - A18DAE57B2 ENGINE, AIR INTAKE SYSTEM - A18DAE57B2 (101006) Diagram

#

Description
Price

1

BOOT, ENGINE, INTAKE

5414973

$44.51

2

BOX, AIR INTAKE

5450495

$137.60

3

CLIP-AIRBOX

7081707

$4.76

4

FILTER-AIR

7082037

$30.16

5

SHAFT, COMPRESSION

5138987

$14.56

6

PLUG-DRAIN

5414472

$5.56

6

PLUG-DRAIN

5414472

$5.56

7

DUCT, INTAKE

5452665

$47.62

8

BUSHING-MOUNT

5414719

$2.38

8

BUSHING-MOUNT

5414719

$2.38

9

HOSE, INTAKE

5414582

$32.37

10

COVER-AIRBOX

5450175

$24.27

11

BOX, INTAKE, RH

5450728

$119.99

12

SEAL-AIR BOX COVER

5814106

$12.13

13

SEAL, FOAM

5814033

$12.13

14

CLAMP-WORM GEAR,44-70MM,HOSE

7081623

$3.17

14

CLAMP-WORM GEAR,44-70MM,HOSE

7081623

$3.17

14

CLAMP-WORM GEAR,44-70MM,HOSE

7081623

$3.17

15

SCREW

7519298

$3.97

16

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

17

CLAMP-BAND,NARROW 60-80MM

7080707

$3.17

18

FILTER, INTAKE, FOAM

5814026

$12.94

19

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

20

CLIP-PLASTIC DART, NYLON

7670088

$1.59

21

SHIELD-SLEEVE

5814546

Unavailable

22

HOSE, BREATHER

5415578

$84.99

23

CLAMP, HOSE

7080696

$5.56

24

RIVET, TUFLOK

7661855

$1.19
