Find the part on the Frame - Seat diagram for your 1971 Suzuki AC50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

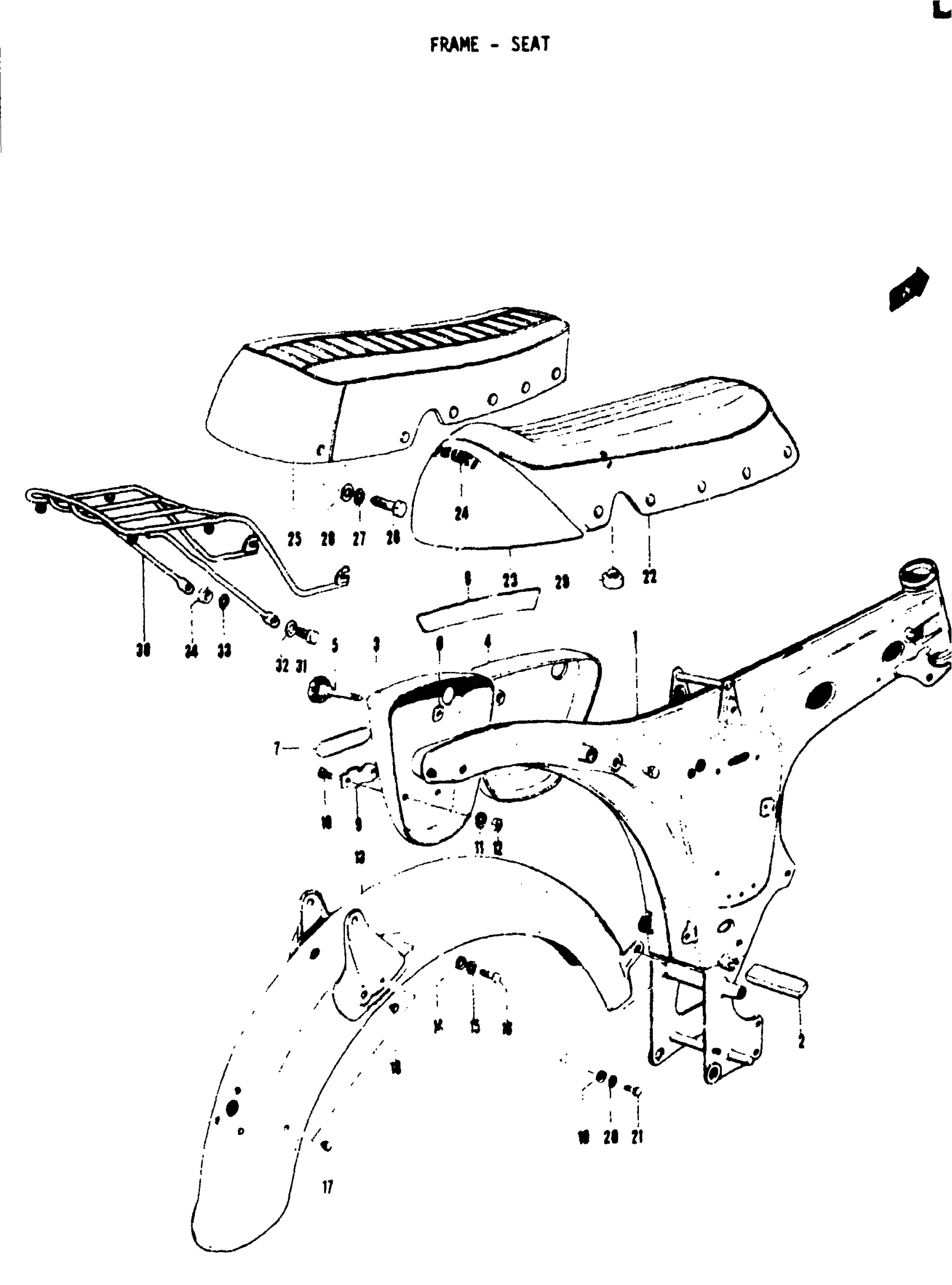

1971 Suzuki AC50 Frame - Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 41100-05100.

41100-05100-799

—
Out of stock

1

NO DESCRIPTION AVAILABLE This part replaces 41100-21200-019.

41100-21200-799

1
Out of stock

2

FRAME DUST SEAL

41531-05000

—
Out of stock

3

FRAME LH COVER | MARY PAINTED

47211-12100

—
Out of stock

3

FRAME LH COVER

47211-12100-156

—
Out of stock

4

NO DESCRIPTION AVAILABLE This part replaces 47211-22200-186.

47211-22200-019

1
Out of stock

5

COVER KNOB

47130-01000

—
Out of stock

6

COVER KNOB STOPPER

09152-06002

1
Out of stock

7

FRAME LH COVER EMBLEM | UKI

68165-05600

1
Out of stock

8

FRAME LH COVER EMBLEM

68141-22200

1
Out of stock

9

FRAME LH COVER EMBLEM

68132-05600

—
Out of stock

10

CROSS HEAD SCREW

02111-03088

—
Out of stock

11

WASHER,LOCK This part replaces 08321-21038.

09162-03001

2
Out of stock

12

NUT | ATED This part replaces 08311-11038.

08310-0003B

2
Out of stock

13

REAR FENDER | ATED

63110-05610

1
Out of stock

13

REAR FENDER

63110-22200

—
Out of stock

14

WASHER This part replaces 08322-21088.

08322-01087

2
Out of stock

15

2

$2.28

In stock

16

BOLT, REAR This part replaces 01121-08208.

01500-08207

2
Out of stock

16

SMALL HEXAGON BOLT

01121-08258

—
Out of stock

17

REAR FENDER PLUG (A) | NO.42898

09321-10004

—
Out of stock

18

REAR FENDER PLUG

09250-05001

2
Out of stock

19

WASHER This part replaces 08322-21068.

08322-01067

2
Out of stock

20

2

$2.28

In stock

21

HEXAGON BOLT

01111-06128

—
Out of stock

22

DUAL SEAT ASS'Y

45100-05100

—
Out of stock

23

NO DESCRIPTION AVAILABLE This part replaces 45280-05100.

45280-05100-126

—
Out of stock

24

SEAT EMBLEM

68165-05600

1
Out of stock

25

DUAL SEAT ASS'Y

45100-22200-403

—
Out of stock

26

BOLT This part replaces 01321-08308.

01500-08307

2
Out of stock

27

2

$2.28

In stock

28

WASHER This part replaces 08322-21088.

08322-01087

2
Out of stock

29

DUAL SEAL BUTFER

09321-10002

2
Out of stock

30

CARRIER

46310-22200

—
Out of stock

31

HEXAGON BOLT

01111-06128

—
Out of stock

32

WASHER This part replaces 08322-21068.

08322-01067

2
Out of stock

33

2

$2.28

In stock
