1977 Suzuki A100 Rear Combination Lamp Diagram

← All diagrams

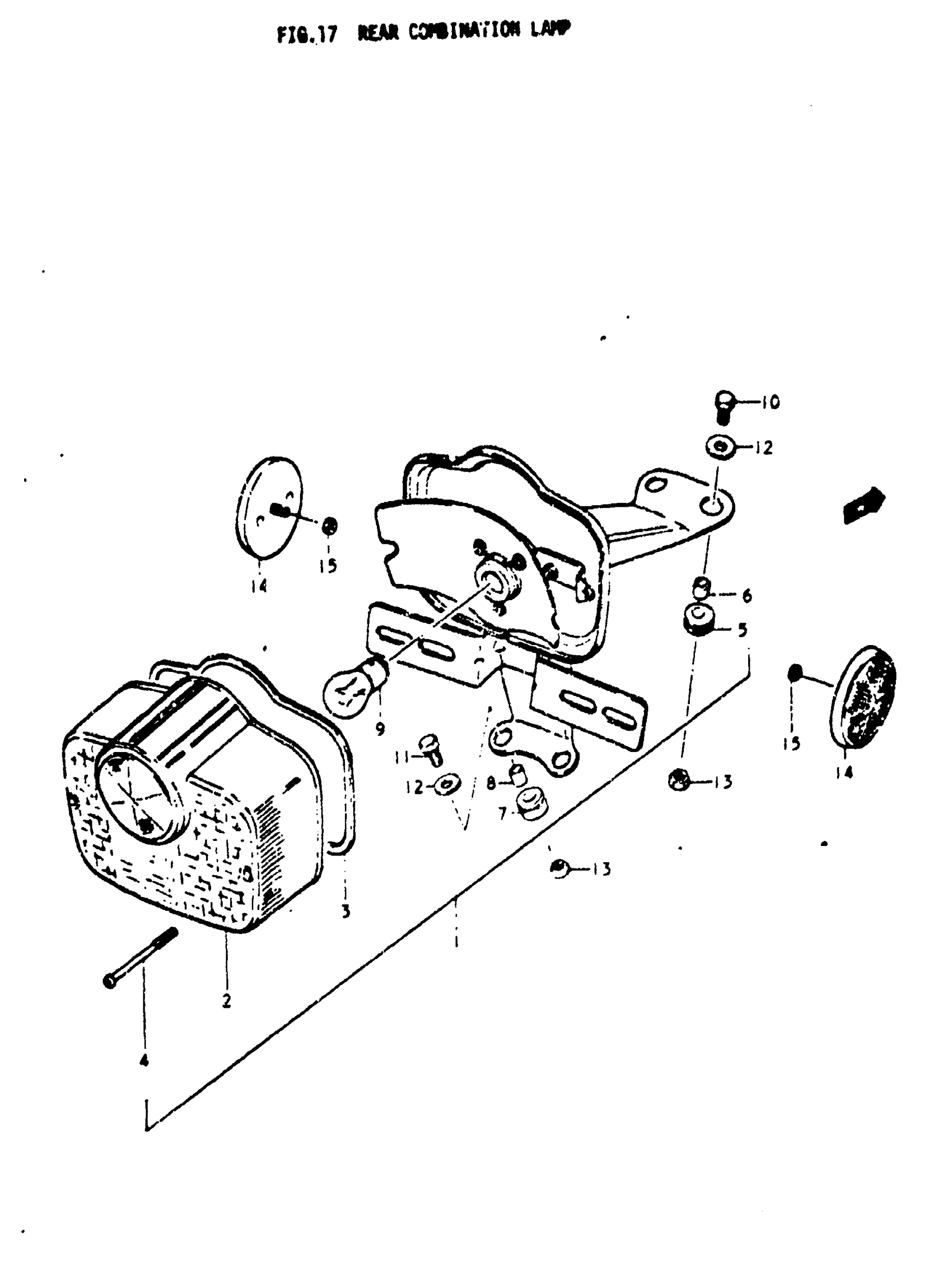

Find the part on the Rear Combination Lamp diagram for your 1977 Suzuki A100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki A100 Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMBINATION | A,B; Includes Item(s) 2 - 9

35710-23610

1
Out of stock

2

LENS RR COMB LA | A,B This part replaces 35712-27630.

35712-23011

1
Out of stock

3

GASKET | A,B

35713-27630

1
Out of stock

4

SCREW 4X55 | A,B This part replaces 02111-04558.

02112-04558

2
Out of stock

5

CUSHION, FRONT | A,B

35765-15010

2
Out of stock

6

SPACER | A,B This part replaces 35766-15010.

35766-37110

2
Out of stock

7

CUSHION, REAR | A,B

35765-22210

2
Out of stock

8

SPACER | A,B This part replaces 35766-22210.

35766-37120

2
Out of stock

9

BULB | A,B

09471-06030

1
Out of stock

11

BOLT | A,B This part replaces 01112-06208.

01500-06207

2
Out of stock

12

WASHER (6.5X20X1.2) | A,B This part replaces 09160-06027.

09160-06077

4
Out of stock

13

.NUT | A,B This part replaces 08311-11068.

08310-00067

4
Out of stock

14

REFREX REFRECTOR, REAR SIDE | A,B

35970-15010

—
Out of stock

15

NUT | A,B This part replaces 08311-11058.

08310-00057

4
Out of stock
