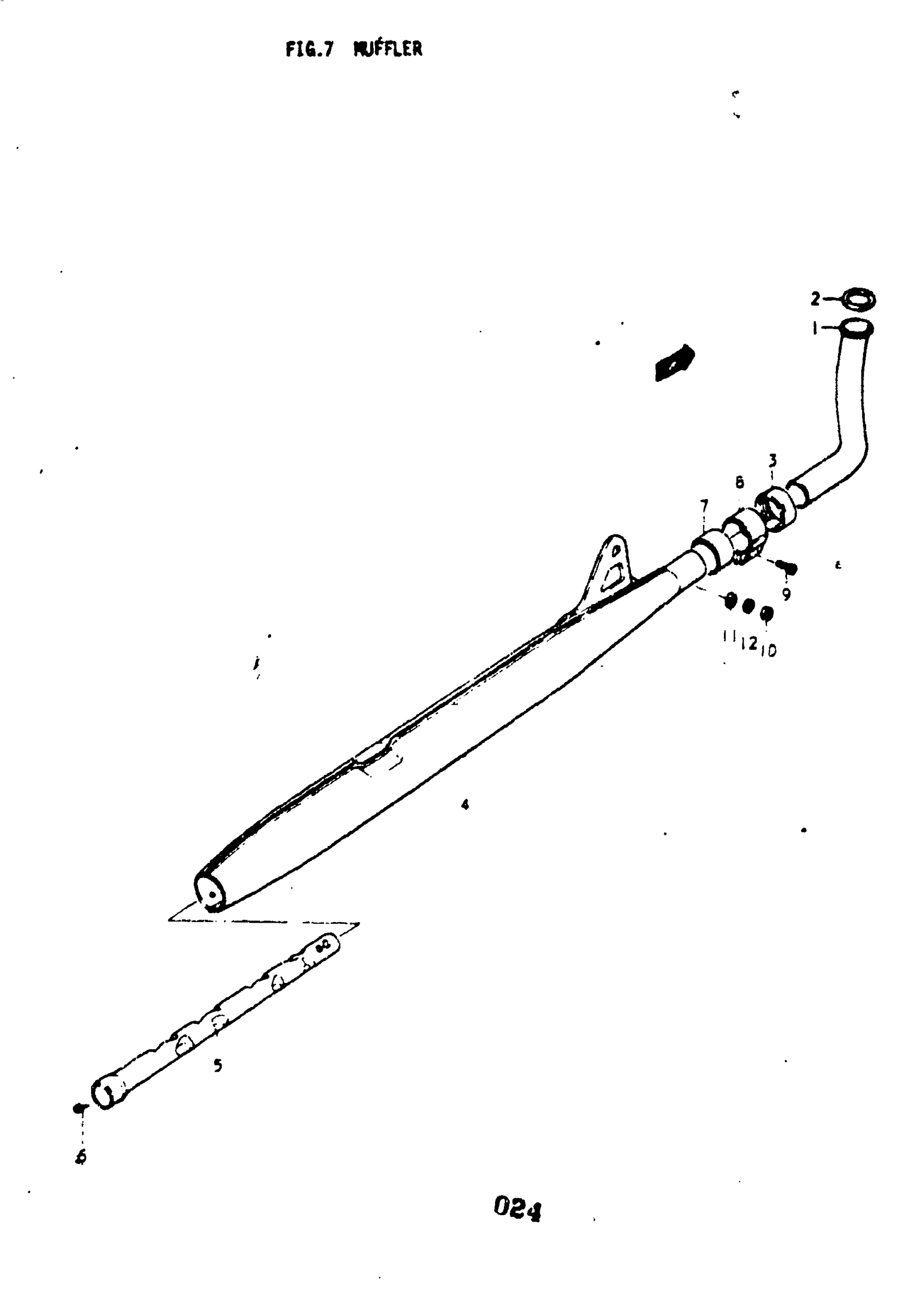

Suzuki A100 (1977) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST | A,B

14151-12000

Unavailable

2

GASKET, EXHAUST PIPE | A,B This part replaces 14181-12000.

14181-42A00

$10.46

3

CLAMP | A,B

14182-12600

Unavailable

4

NO DESCRIPTION AVAILABLE | A,B; Includes Item(s) 5 - 6 This part replaces 14301-21201.

14301-21202-H01

Unavailable

5

NO DESCRIPTION AVAILABLE | A,B This part replaces 14510-12002.

14510-05003

Unavailable

6

SCREW | A,B This part replaces 02111-05068.

09125-05122

$2.14

7

CONNECTOR, MUFFLER | A,B

14771-12011

Unavailable

8

CLAMP | A,B

09402-39701

Unavailable

9

SCREW | A,B This part replaces 02112-06258.

02112-06257

$1.68

10

NUT | A,B This part replaces 08312-11088.

08310-00087

$1.91

11

WASHER | A,B This part replaces 08322-11088.

08322-01087

$1.92

12

.LOCK WASHER | A,B This part replaces 08321-21088.

08321-01087

$1.89
