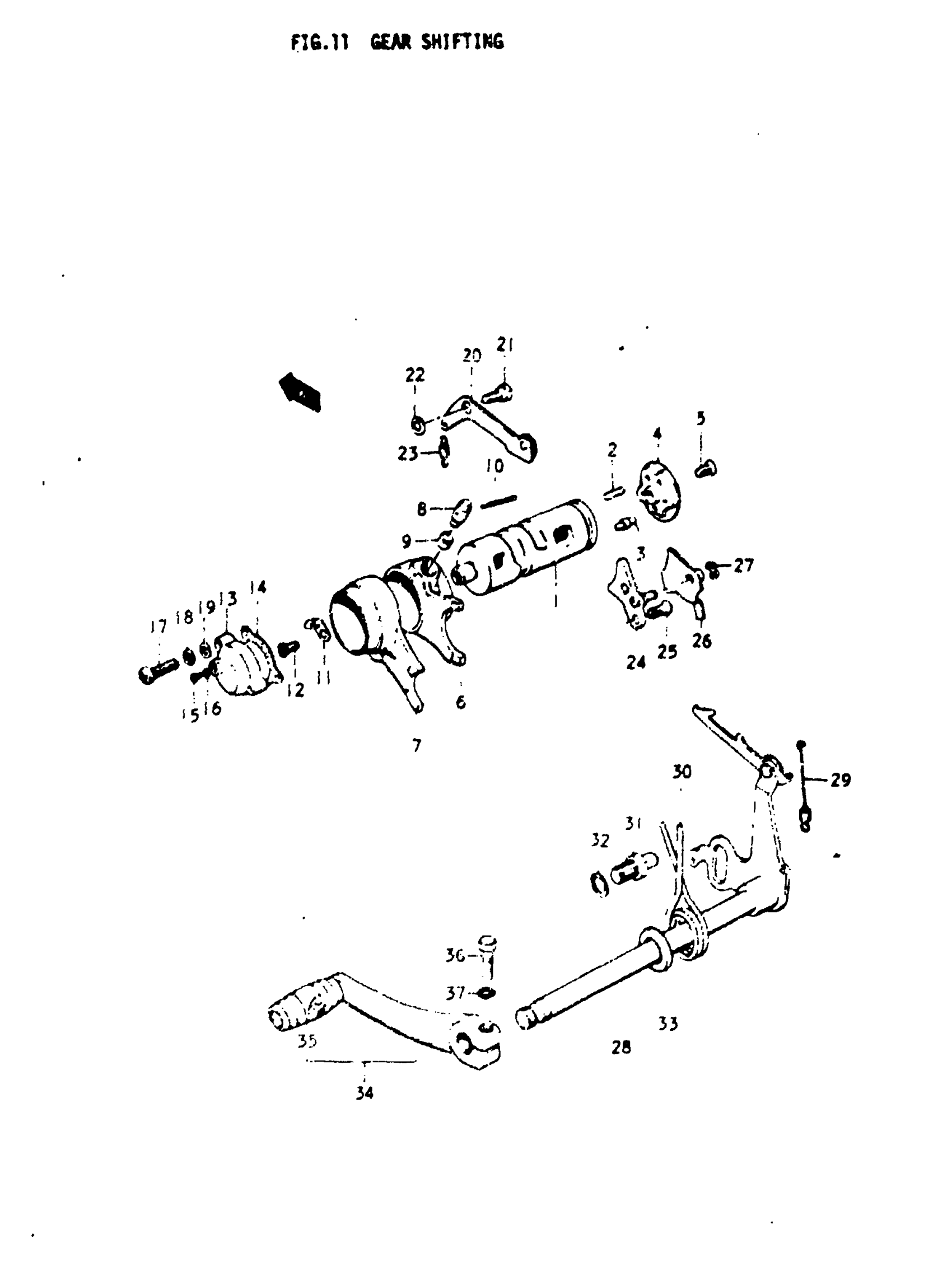

Suzuki A100 (1977) GEAR SHIFTING Diagram

#

Description
Price

1

CAM, GEAR SHIFTING | A,B

25311-12102

Unavailable

2

PIN, SHIFTING CAM | A,B

09261-04003

Unavailable

3

PIN, SHIFTING CAM STOPPER | A,B

09209-04012

$2.77

4

PLATE, SHIFTING CAM STOPPER | A,B

25380-25030

Unavailable

5

SCREW | A,B This part replaces 02122-06208.

02122-0620A

$1.45

6

FORK, GEAR SHIFTING A | A,B

25211-25101

Unavailable

7

FORK, GEAR SHIFTING B | A,B

25221-12100

Unavailable

8

PIN, SHIFTING FORK GUIDE | A,B

09209-10002

Unavailable

9

ROLLER | A,B; 6x9.8x6 This part replaces 09180-06004.

09180-06086

$2.72

10

CITTER PIN | A,B This part replaces 04111-25208.

04111-2520A

$1.22

11

CONTACT, GEAR SHIFTING SWITCH | A,B

37711-05101

$3.50

12

SCREW | A,B This part replaces 02122-06128.

02122-06127

$1.83

13

BODY,CHANGE SWI | A,B This part replaces 37721-05100.

37721-05101

$13.73

14

GASKET | A,B

37712-01000

$2.50

15

SCREW | A,B This part replaces 02111-03048.

02112-03047

$2.35

16

WASHER | A,B This part replaces 08322-21038.

08322-01037

$1.95

17

SCREW | A,B This part replaces 02111-04208.

02112-0420A

$1.30

18

LOCK WASHER | A,B This part replaces 08321-21048.

08321-0104A

$1.86

19

WASHER | A,B This part replaces 08322-21048.

08322-01047

$1.88

20

STOPPER, SHIFTING CAM | A,B

25350-12101

Unavailable

21

BOLT | A,B

09111-06003

Unavailable

22

WASHER | A,B; 6.5x16x2.3

09160-06022

Unavailable

23

SPRING | A,B

09443-07003

Unavailable

24

GUIDE, SHIFTING CAM | A,B

25340-12101

Unavailable

25

SCREW | A,B This part replaces 02122-06168.

02122-06167

$1.45

26

PAWL, SHIFTING CAM STOPPER | A,B

25370-12101

Unavailable

27

E RING | A,B This part replaces 08332-11059.

08332-1105A

$1.95

28

SHAFT,GEAR SHIF | A,B This part replaces 25510-12100.

25510-12102

Unavailable

29

SPRING | A,B

09443-06008

Unavailable

30

SPRING | A,B

09444-26008

$5.57

31

STOPPER, SHIFTING ARM | A,B

25671-19000

Unavailable

32

LOCK WASHER | A,B This part replaces 08321-21108.

08321-01107

$1.83

33

OIL SEAL (12X22X9) | A,B This part replaces 09285-12001.

09285-12006

$5.70

34

LEVER ASSY, GEAR SHIFTING | A,B; Includes Item(s) 35

25600-05104

Unavailable

35

.RUBBER,GEAR SHIFT PEDAL | A,B This part replaces 25652-16500.

25652-16510

$3.42

36

BOLT | A,B This part replaces 01112-06208.

01500-06207

$1.99

37

LOCK WASHER | A,B This part replaces 08321-21068.

08321-01067

$1.83
