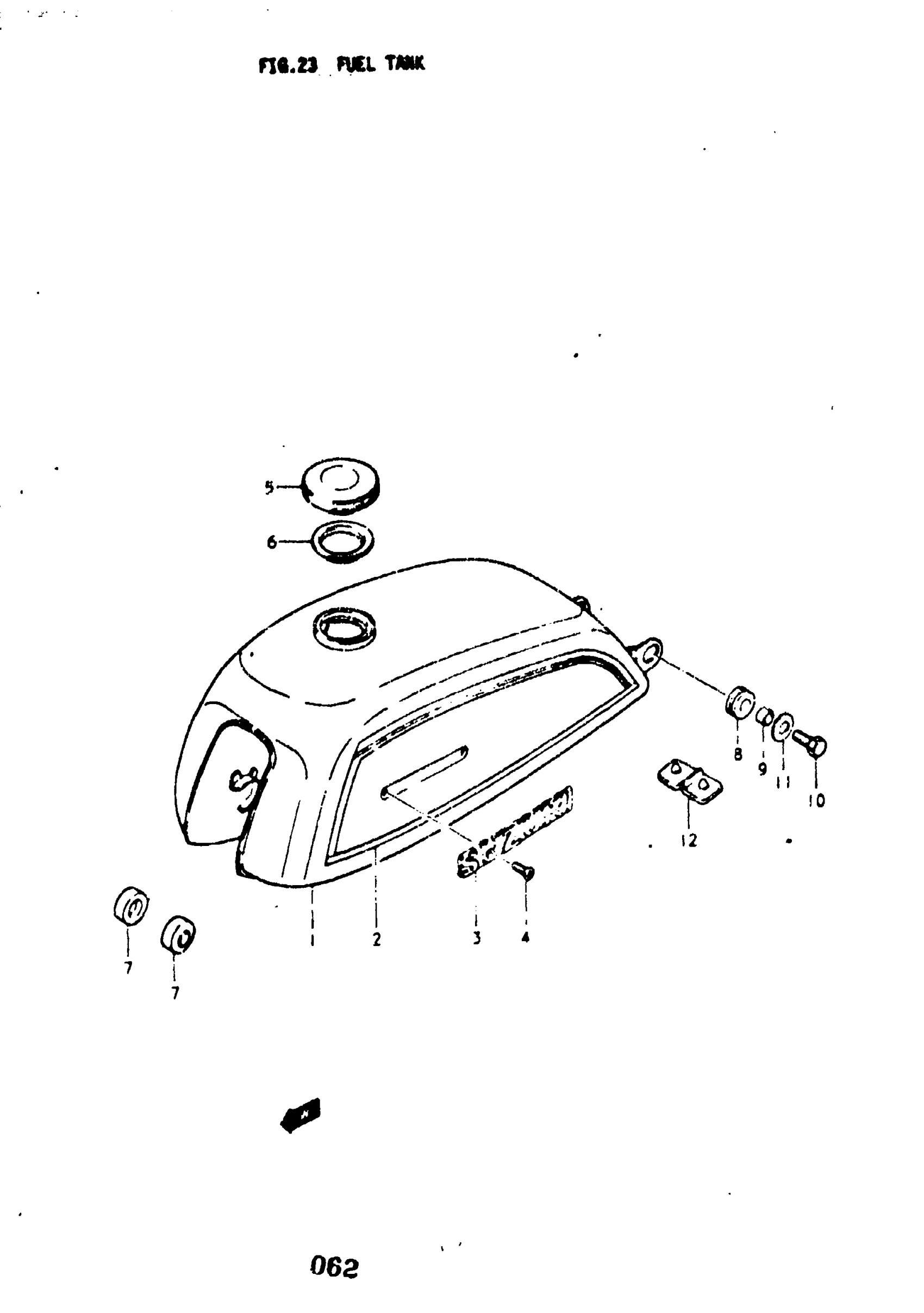

Suzuki A100 (1977) FUEL TANK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | A,B This part replaces 44110-22670-00U.

44110-22630-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | A,B; B MODEL; Includes Item(s) 2 This part replaces 44110-22670-03H.

44110-22630-13L

Unavailable

2

NO DESCRIPTION AVAILABLE | A,B This part replaces 68101-22810-61K.

68101-22811-61K

Unavailable

3

EMBLEM | A,B

68111-34000

$18.98

4

SCREW | A,B This part replaces 09127-03002.

02122-0306B

$2.28

5

CAP FUEL TANK | A,B This part replaces 44210-23300.

44200-23810

$63.75

6

GASKET, CAP | A,B

85413-70000

$4.03

7

CUSHION | A,B

09329-10005

$2.19

8

CUSHION | A,B

09320-09002

$2.00

9

SPACER (6.5X10X7) | A,B; 6.8x10x7 This part replaces 09180-06002.

09180-06283

$1.89

10

BOLT, CANISTER | A,B This part replaces 01112-06168.

01500-06167

$1.97

11

WASHER, FRONT | A,B; 6.5x25x1.5 This part replaces 09160-06004.

09160-06134

$1.89

12

CUSHION | A,B

09321-05006

Unavailable
