1977 Suzuki A100 Fender - Seat Diagram

← All diagrams

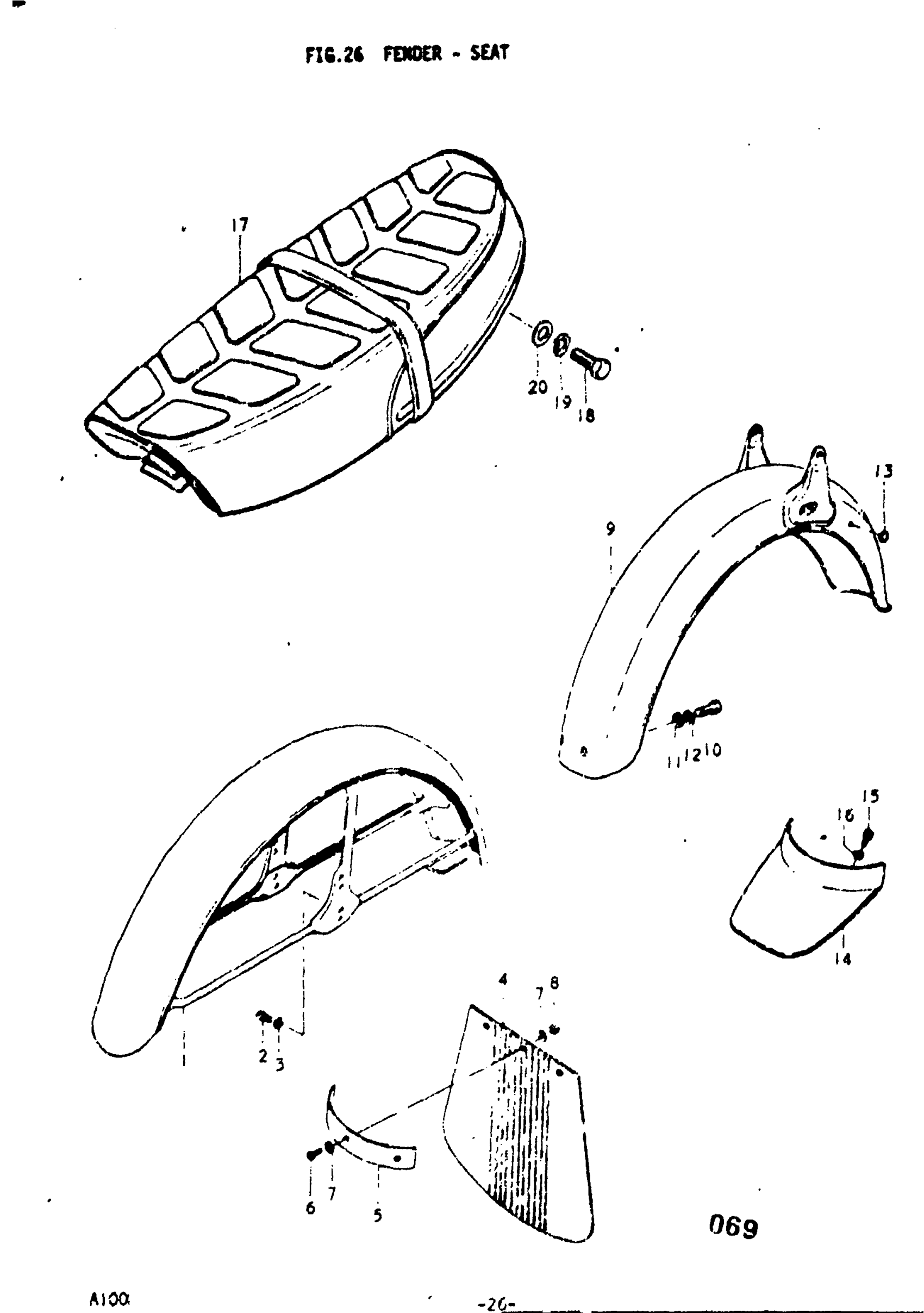

Find the part on the Fender - Seat diagram for your 1977 Suzuki A100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki A100 Fender - Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | A,B This part replaces 53110-12600.

53110-39620

1
Out of stock

2

BOLT | A,B This part replaces 01112-06108.

01500-06107

4
Out of stock

3

4

$2.28

In stock

5

PLATE | A,B; OPT

53321-09100

1
Out of stock

6

3

$1.67

In stock

7

6

$2.03

In stock

8

3

$2.43

In stock

9

FENDER, REAR | A,B

63110-23710

1
Out of stock

10

2

$2.10

In stock

11

2

$1.84

In stock

12

2

$2.28

In stock

13

CAP, REAR FENDER | A,B

09250-07001

2
Out of stock

14

PLATE, REAR FENDER EXTENSION | A,B; OPT

63310-12701

—
Out of stock

15

BOLT | A,B; OPT This part replaces 01111-05108.

01500-0510B

2
Out of stock

16

LOCK WASHER | A,B; OPT This part replaces 08321-21058.

08321-0105A

2
Out of stock

17

NO DESCRIPTION AVAILABLE | A,B This part replaces 45100-22650-403.

45100-22650-48F

1
Out of stock

18

2

$2.94

In stock

19

2

$2.28

In stock

20

WASHER | A,B This part replaces 08322-21088.

08322-01087

2
Out of stock
← Center Stand Frame →
