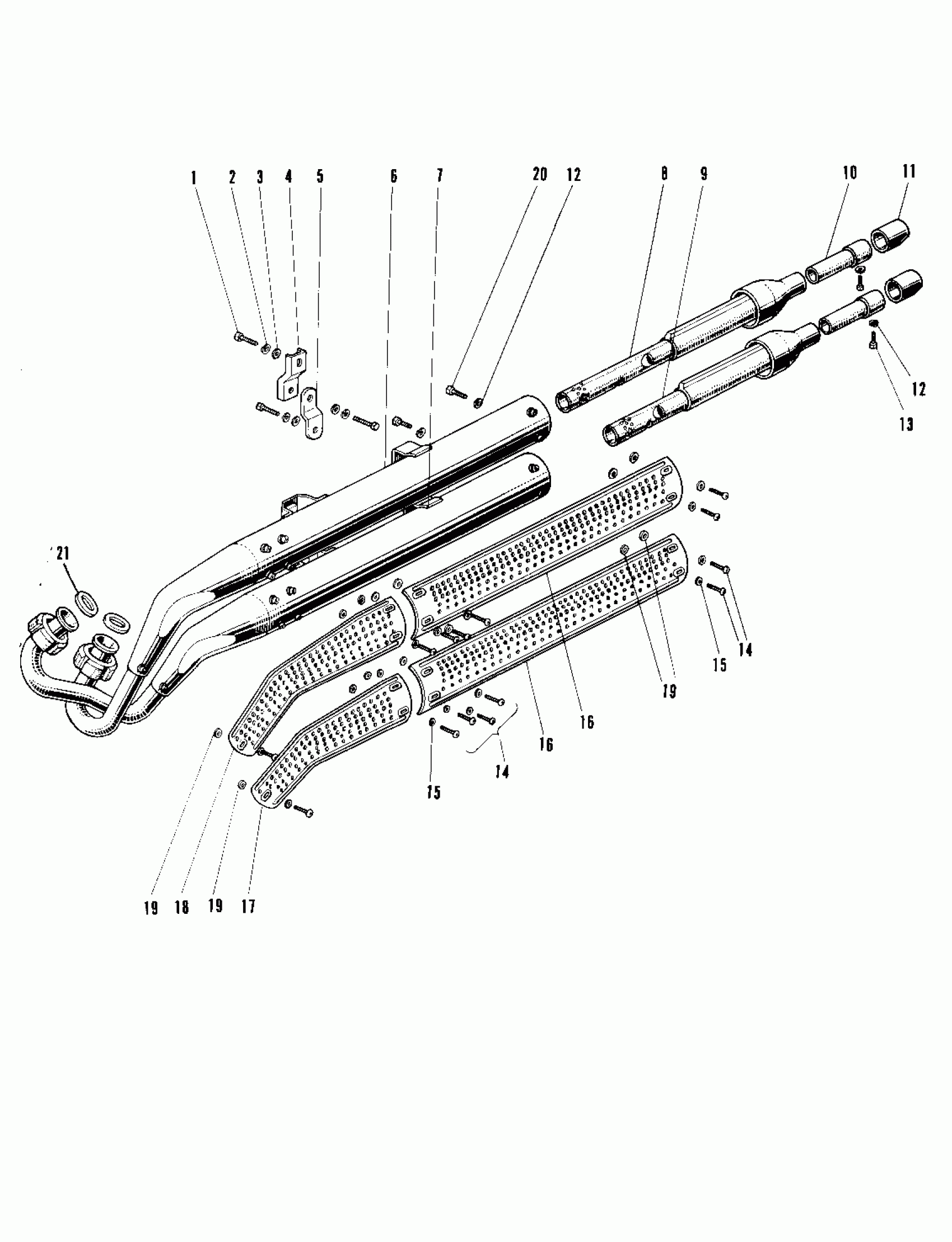

Kawasaki A1-B MUFFLER/SPARK ARRESTER A1SS, A7SS Diagram
#
Description
Price
1
BOLT,8X20
115G0820
Unavailable
2
WASHER SPRING 8MM
461F0800
Unavailable
3
WASHER PLAIN 8MM
410B0800
Unavailable
4
BRACKET UPPER MUFFLER
18061-007
Unavailable
5
BRACKET LOWER MUFFLER
18061-008
Unavailable
6,8,10
MUFFLER ASSY UPPER
18002-057
Unavailable
7,9,10
MUFFLER ASSY LOWER
18003-024
Unavailable
8
SPARK ARRESTOR COMP U
18033-020
Unavailable
10
BAFFLE TUBE
18033-039
Unavailable
10
BAFFLE TUBE
18033-023
Unavailable
11
TAIL PIECE
18048-006
Unavailable
12
WASHER SPRING 6MM
461F0600
Unavailable
13
BOLT,6X10
112G0610
Unavailable
13
SCREW PAN HEAD 6X10
220B0610
Unavailable
14
SCREW PAN HEAD 6X8
220E0608
Unavailable
15
WASHER PLAIN 6MM
411B0600
Unavailable
16
COVER MUFFLER REAR
18057-014
Unavailable
17
COVER MUFFLER LOWER
18057-013
Unavailable
18
COVER MUFFLER UPPER
18057-012
Unavailable
19
INSULATOR HEAT
18065-002
Unavailable
20
BOLT,6X10
112G0610
Unavailable
