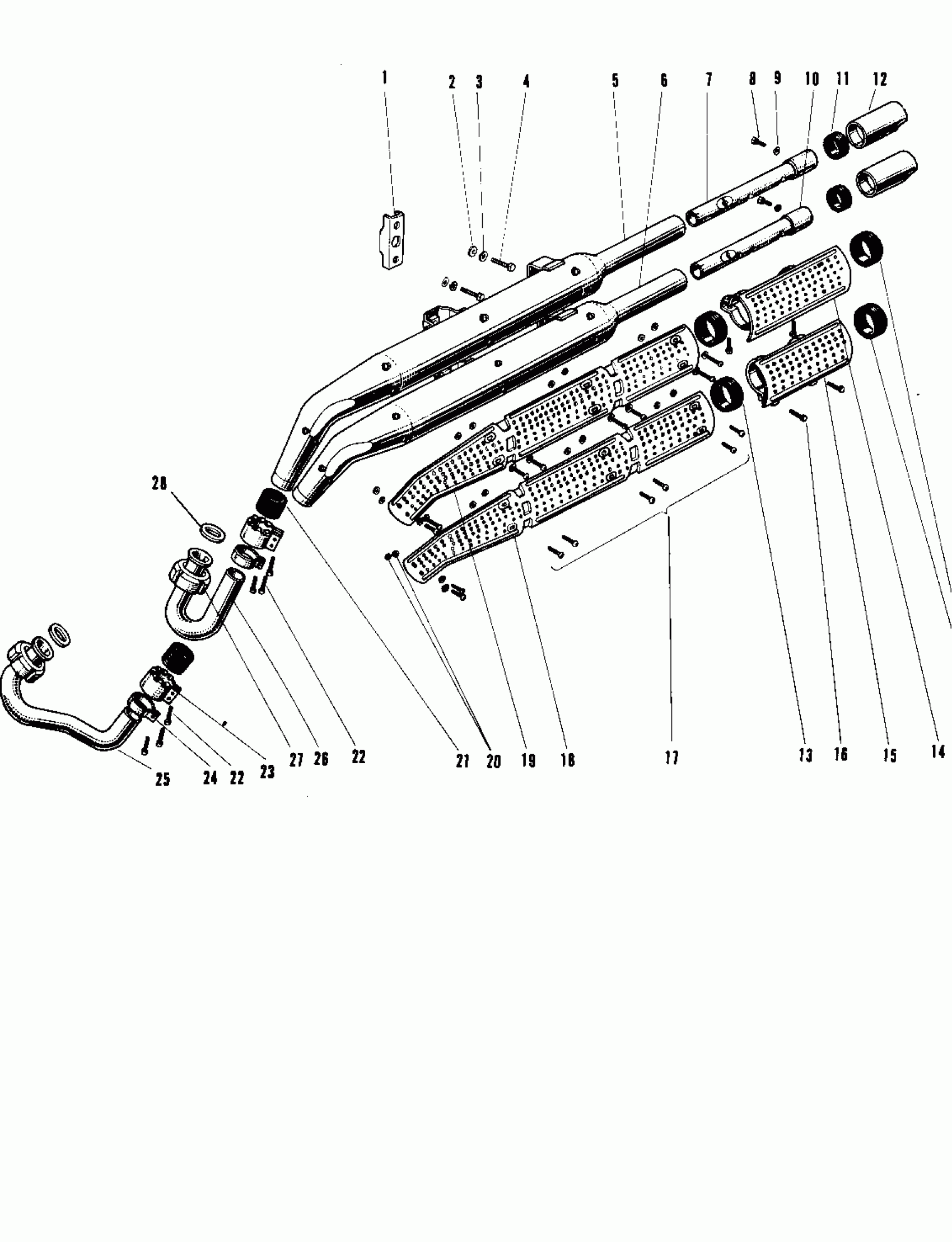

Kawasaki A1-B MUFFLER A1SS SEPARATE TYPE Diagram

#

Description
Price

1

BRACKET MUFFLER

18061-026

$5.22

2

WASHER PLAIN 8MM

410B0800

Unavailable

3

WASHER SPRING 8MM

461F0800

Unavailable

4

BOLT,8X20

115G0820

Unavailable

5,7~9

MUFFLER ASSY UPPER

18002-062

$108.19

6,8~10

MUFFLER ASSY LOWER

18003-026

$155.08

7

BAFFLE TUBE UPPER

18033-016

$28.66

8

BOLT-UPSET,6X12

112G0612

Unavailable

9

WASHER SPRING 6MM

461F0600

Unavailable

10

BAFFLE TUBE LOWER

18033-017

$18.81

11

RUBBER SEAL

18068-003

Unavailable

12

TAIL PIECE

18048-004

$15.12

13

BAND RUBBER 40MM

92072-025

Unavailable

14

COVER UPPER TAIL PIPE

18057-017

Unavailable

15

COVER LOWER TAIL PIPE

18057-018

Unavailable

16

SCREW-PAN-CROS,6X16

220B0616

Unavailable

17

SCREW PAN HEAD 6X6

220E0606

$0.63

18

COVER MUFFLER LOWER

18057-010

$16.71

19

COVER MUFFLER UPPER

18057-009

Unavailable

20

INSULATOR HEAT

92065-024

Unavailable

20

INSULATOR

18065-006

$1.29

21

CONNECTOR MUFFLER

18043-010

$60.03

22

SCREW PAN HEAD 6X25

220B0625

Unavailable

23

HOLDER MUFFLER CONECT

18044-008

Unavailable

24

HOLDER MUFFLER CONECT

18044-007

Unavailable

25

PIPE EXHAUST R.H

18049-044

$32.47

26

PIPE EXHAUST L.H

18049-030

$32.47

27

CLAMP EXHAUST PIPE

18069-033

Unavailable

28

GASKET EXHAUST PIPE

18067-008

$14.62
