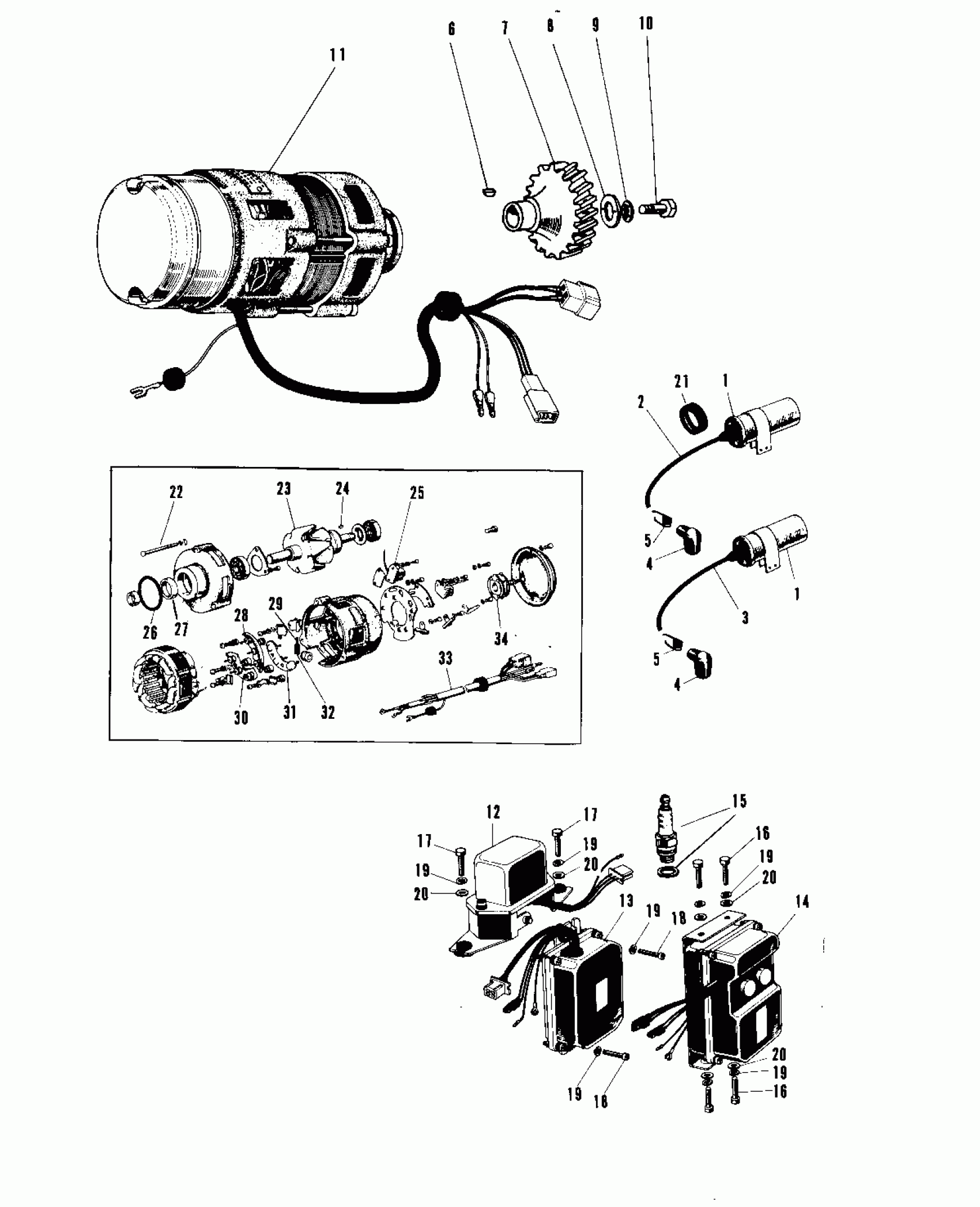

Kawasaki A1-B IGNITION CDI Diagram

#

Description
Price

1

COIL IGNITION

21121-031

$61.15

2

CORD HIGH TENSION R.H

21133-007

Unavailable

3

CORD HIGH TENSION L.H

21133-008

Unavailable

4

CAP-SPARK PLUG

21130-009

$17.85

5

TERMINAL,SPARK PLUG CAP

92101-001

$1.24

6

KEY-WOODRUFF

510A3100

$1.87

7

GEAR DYNAMO

21069-006

Unavailable

8

WASHER PLAIN 8MM

92022-079

$2.69

9

WASHER LOCK 8MM

463H0800

Unavailable

10

BOLT,8X20

115G0820

Unavailable

11

DYNAMO

21001-015

$590.60

12

UNAVAILABLE IN PRICE BOOK

21072-005

Unavailable

13

IGNITION UNIT A

21119-005

$568.54

14

IGNITION UNIT B

21120-001

$440.99

15

UNAVAILABLE IN PRICE BOOK

92070-016

$4.53

16

BOLT-UPSET,6X16

112G0616

Unavailable

17

BOLT-UPSET

112G0618

Unavailable

18

SCREW PAN HEAD 6X12

220B0612

Unavailable

19

WASHER SPRING 6MM

461F0600

Unavailable

20

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

21

UNAVAILABLE IN PRICE BOOK

92073-009

$1.61

22

SCREW-PAN-CROS

220B0570

Unavailable

23

ROTOR

21007-013

$232.19

24

WOODRUFF KEY

92038-012

$4.49

25

PICK UP

21152-002

Unavailable

26

"0" RING

92055-032

$11.95

27

OIL SEAL SC20307

92050-031

$21.12

28

RECTIFIER A

21151-001

$47.54

29

SPRING CARBON BRUSH

21089-006

Unavailable

30

RECTIFIER C

21151-003

$51.83

31

RECTIFIER B

21151-002

$47.54

32

BRUSH CARBON

21088-010

Unavailable

33

WIRING HARNESS

21029-010

$16.93

34

ROTOR S.G.

21007-014

$51.93
