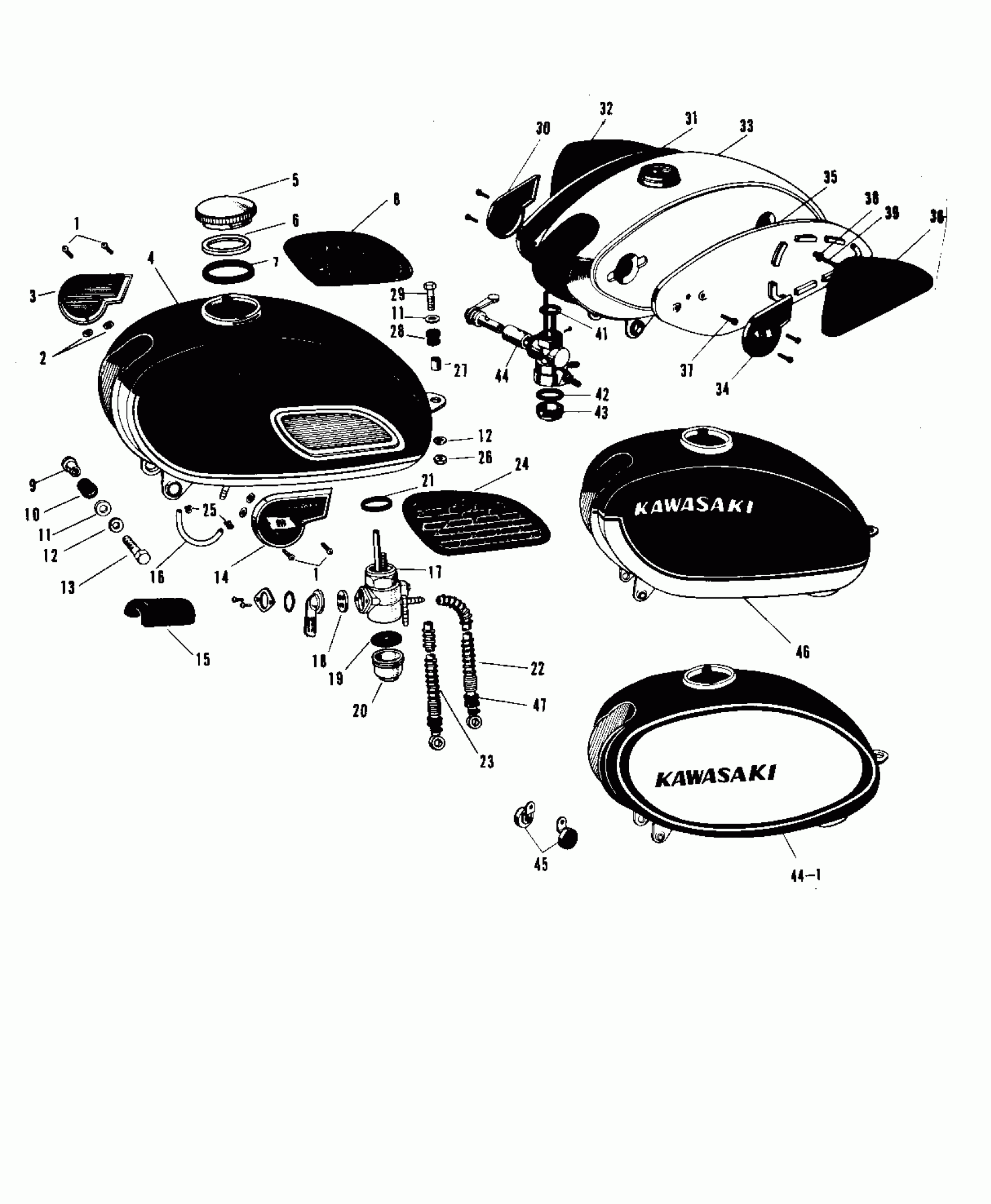

Kawasaki A1-B FUEL TANK (1) Diagram

#

Description
Price

1

SCREW-PAN-CROS,4X8

220E0408

Unavailable

1

SCREW-PAN-CROS,4X8

220E0408

Unavailable

2

SPACER FL TANK EMBLEM

56025-002

Unavailable

3

EMBLEM FUEL TANK R.H

56014-007

Unavailable

4

TANK FUEL C.RED

51001-015-24

Unavailable

4

FUEL TANK

51001-015-27

Unavailable

5,6

CAP FUEL TANK

51049-008

Unavailable

7

GASKET-FUEL TANK CAP

51059-007

Unavailable

8

GRIP KNEE R.H

51062-008

Unavailable

9

COLLAR,FUEL TANK FITT

92027-1134

$7.83

10

DAMPER RUBB TANK FRNT

92075-013

$3.76

11

WASHER,8X26X2.3

92022-1564

$3.29

12

WASHER SPRING 8MM

461F0800

Unavailable

13

BOLT 8X38

92001-1405

$12.52

14

EMBLEM FUEL TANK L.H

56013-006

Unavailable

15

MAT FUEL TANK

51067-002

Unavailable

16

PIPE FUEL TANK CONECT

51047-002

$3.00

17~21

COCK ASSY,FUEL

51023-043

Unavailable

18

GASKET FUEL COCK LEV

92065-019

Unavailable

19

GASKET FUEL COCK CUP

51037-007

Unavailable

20

CUP FUEL COCK

51036-003

$4.25

21

GASKET FUEL COCK JONT

51032-001

Unavailable

22

PIPE-FUEL

51044-041

Unavailable

23

PIPE-FUEL

51044-040

Unavailable

24

GRIP KNEE L.H

51061-009

Unavailable

25

CLAMP,TUBE

92037-010

$2.99

26

NUT,8MM

311B0800

Unavailable

27

COLLAR,8.8X12X17

92027-034

$7.15

28

DAMPER RUBB TANK REAR

92075-030

Unavailable

29

UNAVAILABLE IN PRICE BOOK

116B0836

Unavailable
