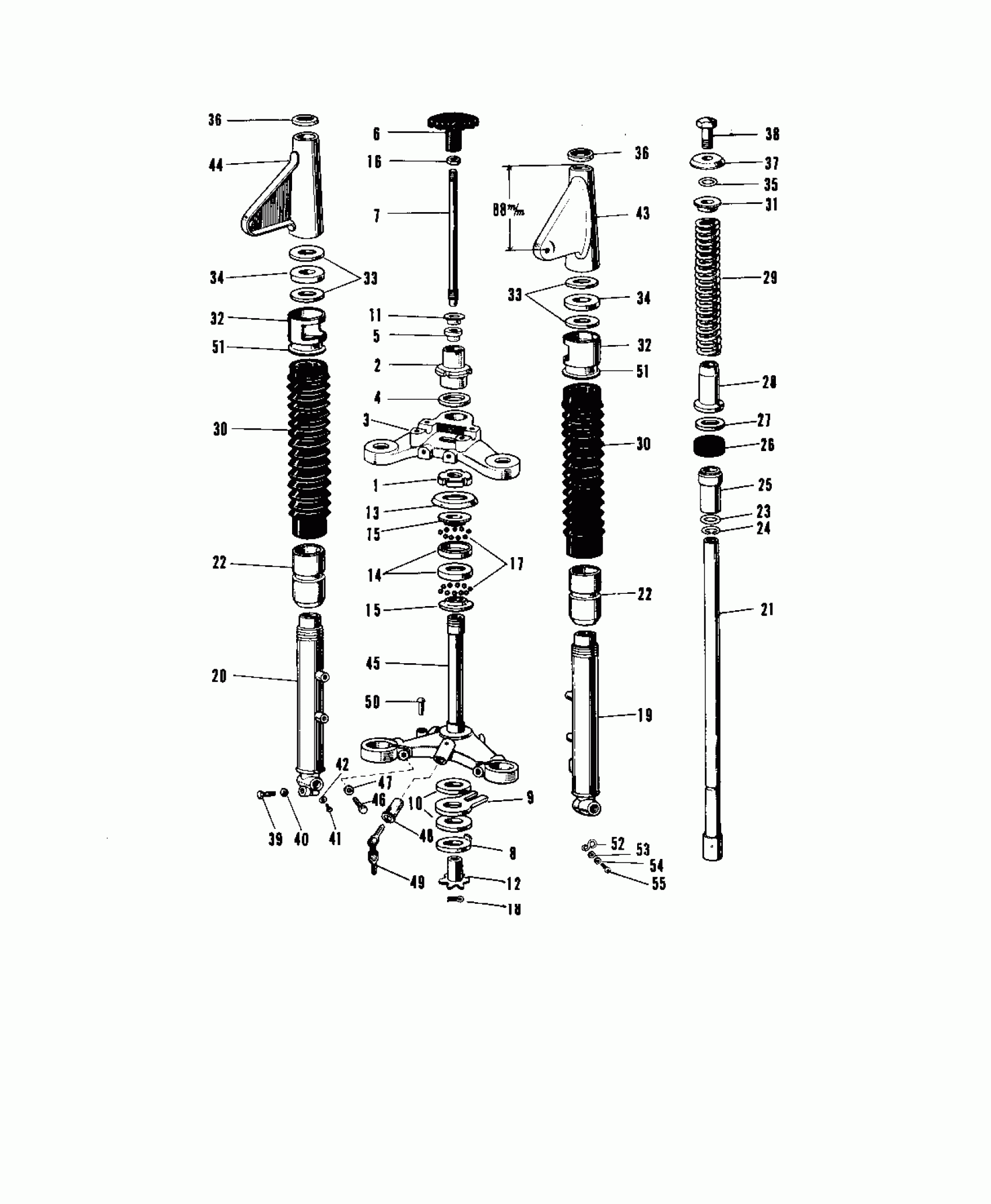

Kawasaki A1-B FRONT FORK A1-A7SS 2 Diagram

#

Description
Price

1

NUT,30MM

92090-007

$8.91

2

NUT STEERING STEM

92090-008

$11.05

3

HEAD STEERING STEM

44039-021

$73.03

4

WASHER STEERING STEM

46100-001

Unavailable

5

BUSH STRNG DAMPER ROD

46103-001

Unavailable

6

KNOB STEERING DAMPER

46101-001

$6.73

7

ROD STEERING DAMPER

46102-001

$2.93

8

DISC STTERING DAMPER

46106-001

Unavailable

9

STOPPER STEERING DAMP

46105-001

Unavailable

10

DISC STRNG DAMP FRCTN

46104-001

Unavailable

11

WASHER STRNG DAMP NUT

46108-001

Unavailable

12

SPRING FRICTION DISC

46123-001

Unavailable

13

CAP STEERING STEM

46098-006

Unavailable

14

RACE,STEERING STEM BEARING

92048-006

$8.83

15

RACE,STEERING STEM BEARING

92047-006

$12.39

16

NUT STEERING DAMP LCK

92016-001

$1.27

17

BALL-STEEL,1/4

600A0800

$0.59

18

PIN COTTER 2.0X15

550D2015

Unavailable

3,19~4

FRONT FORK ASSY,BLACK

44001-012-10

Unavailable

19

TUBE,LH,FORK OUTER

44005-013

Unavailable

20

TUBE,RH,FORK OUTER

44006-011

Unavailable

21

TUBE FORK INNER

44013-015

$114.87

22

NUT FORK OUTER TUBE

44007-010

$27.25

23

'O' RING OUTER TUBE

44046-016

Unavailable

24

CIRCLIP-TYPE-C,28MM

481J2800

$1.31

25

GUIDE FORK INNER TUBE

44015-006

$5.22

26

OIL SEAL FORK

44009-005

Unavailable

27

WASHER

44043-020

$2.32

28

DUST SHIELD FORK

44010-008

$5.03

29

SPRING FORK

44026-013

Unavailable

30

COVER FORK DUST

44027-006

Unavailable

31

GUIDE FORK SPRING

44028-009

$2.29

32

GUIDE FORK COVER

44030-005

$7.81

33

WASHER FORK COVER

44043-021

$4.83

34

GASKET FORK COVER

44045-019

Unavailable

35

'O' RING FORK BOLT

44046-006

$4.83

36

CAP FORK COVER

44032-001

$1.97

37

WASHER FORK BOLT

44043-029

Unavailable

38

BOLT FORK FITTING

44041-011

Unavailable

39

BOLT-SMALL-UPSET,8X30

115G0830

Unavailable

40

WASHER SPRING 8MM

461F0800

Unavailable

41

SCREW PAN HEAD 4X8

220B0408

Unavailable

41

SCREW PAN HEAD 4X8

220B0408

Unavailable

42

GASKET,FORK DRAIN PLUG

44045-002

$3.95

43

COVER L.H FORK BLACK

44033-021-10

$31.71

44

COVER R.H FORK BLACK

44034-020-10

$23.46

45

STEM STEERING

44037-015

$141.96

46

BOLT, PINCH, 10MM

44041-010

Unavailable

47

WASHER SPRING 10MM

461F1000

Unavailable

48, 49

UNAVAILABLE IN PRICE BOOK

27017-011

Unavailable

49

UNAVAILABLE IN PRICE BOOK

27018-008

Unavailable

49

UNAVAILABLE IN PRICE BOOK

27018-008

Unavailable

49

UNAVAILABLE IN PRICE BOOK

27018-008

Unavailable

49

UNAVAILABLE IN PRICE BOOK

27018-008

Unavailable

49

UNAVAILABLE IN PRICE BOOK

27018-008

Unavailable

50

UNAVAILABLE IN PRICE BOOK

92008-006

Unavailable

51

HOLDER DUST COVER

44035-001

Unavailable

52

CLAMP CABLE

92037-026

$1.03

53

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

54

WASHER SPRING 6MM

461F0600

Unavailable

55

SCREW-PAN-CROS,6X16

220B0616

Unavailable
