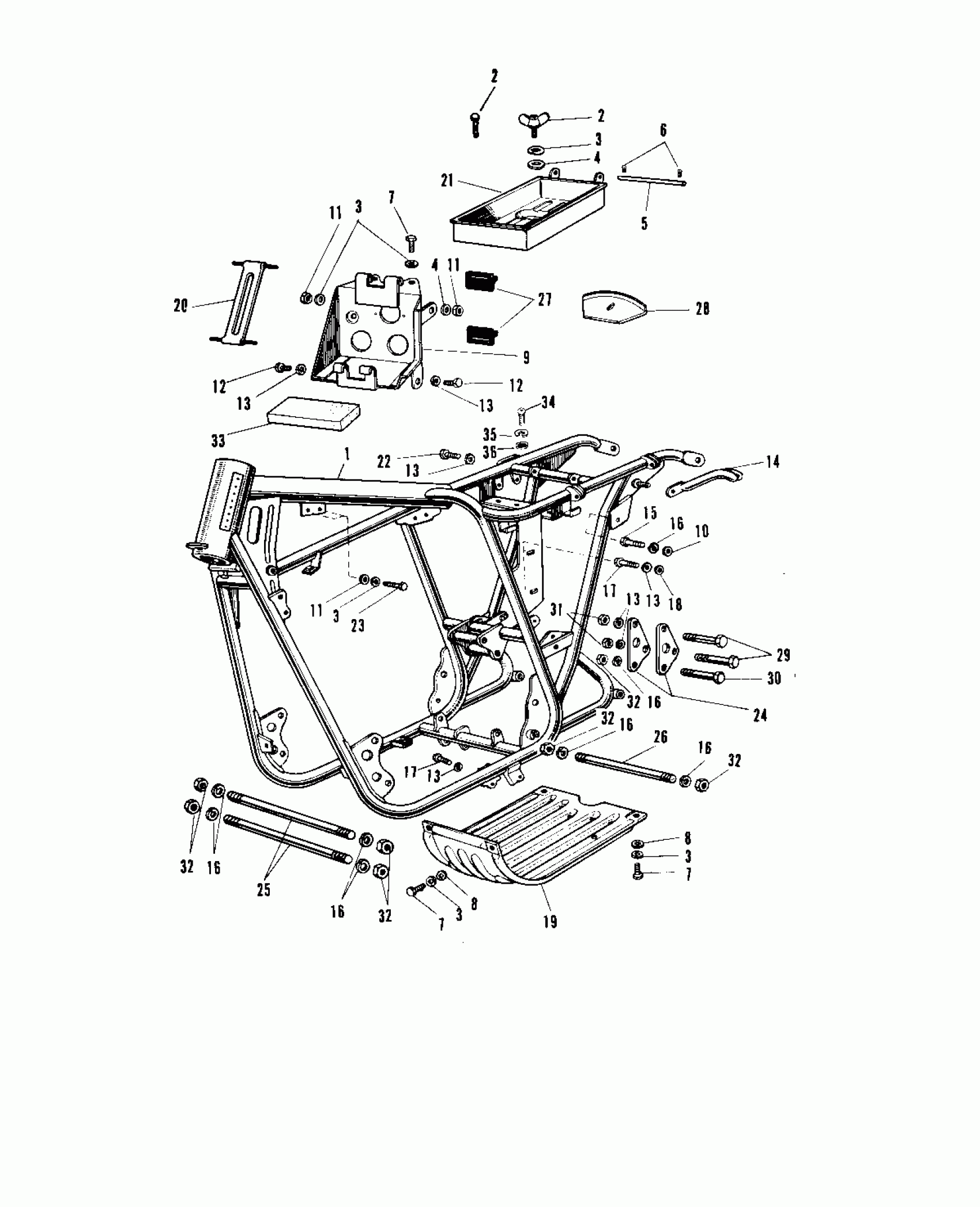

Kawasaki A1-B FRAME A1/SS, A7/SS Diagram
#
Description
Price
2
SCREW PAN HEAD 6X12
220B0612
Unavailable
3
WASHER SPRING 6MM
461F0600
Unavailable
4
WASHER PLAIN 6MM
411B0600
Unavailable
6
PIN COTTER 1.6X10
550D1610
Unavailable
7
BOLT-UPSET,6X12
112G0612
Unavailable
8
WASHER PLAIN 6MM
411B0600
Unavailable
11
NUT 6MM
311B0600
Unavailable
12
BOLT HEX HEAD 8X16
116B0816
Unavailable
13
WASHER SPRING 8MM
461F0800
Unavailable
14
GRIP FRAME
32109-004
Unavailable
16
WASHER SPRING 10MM
461F1000
Unavailable
17
BOLT-SMALL-UPSET,8X18
115G0818
Unavailable
21
BOX TOOL
32098-002
Unavailable
22
BOLT-SMALL-UPSET,8X16
115G0816
Unavailable
23
BOLT-UPSET,6X35
112G0635
Unavailable
24
PLATE ENG REAR HOLDER
32030-006
Unavailable
25
BOLT,10X225
92003-181
Unavailable
26
BOLT ENG LOWER MOUNT
92091-003
Unavailable
27
SEAT RECTIFIER RUBBER
32103-003
Unavailable
28
COVER AIR CLEANER
32104-002
Unavailable
30
BOLT,FLANGED,10X70
92001-1618
Unavailable
31
NUT,8MM
311B0800
Unavailable
32
NUT-HEX-FINE,10MM
314B1000
Unavailable
33
MAT BATTERY
32103-006
Unavailable
34
SCREW PAN HEAD 6X10
220B0610
Unavailable
35
WASHER SPRING 6MM
461F0600
Unavailable
