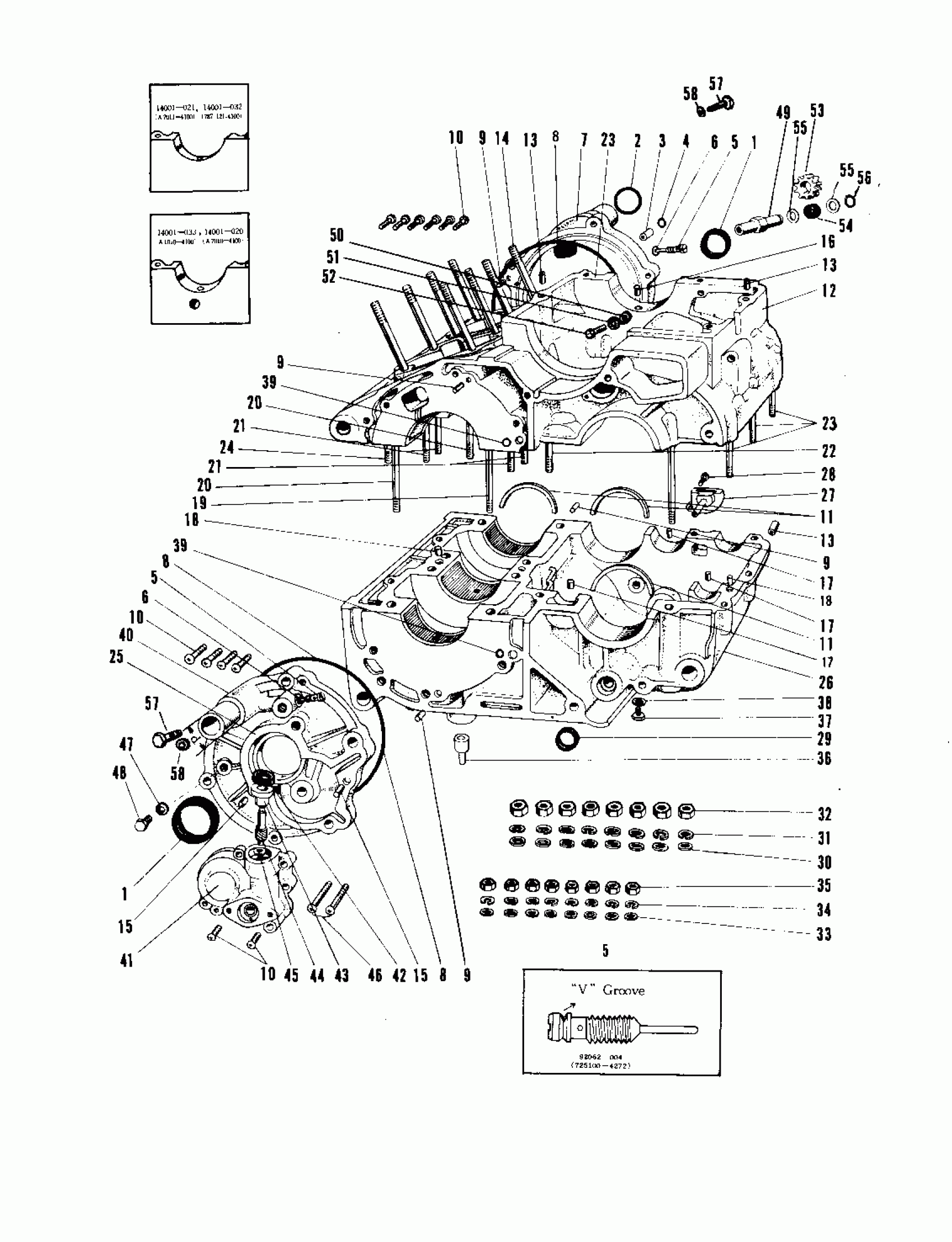

Kawasaki A1-B CRANKCASE Diagram

#

Description
Price

1

OIL SEAL TB32457

653B324507

$13.85

2

"0" RING,32MM

670B3032

$1.19

3

PIN DOWEL 8X15

92042-009

Unavailable

4

RING-O,7.8X3.5

92055-029

$3.65

5

NOZZLE OIL INJECTION

92062-002

$6.92

5

NOZZLE OIL INJECTION

92062-004

Unavailable

6

"0" RING,5MM

92055-011

Unavailable

7

COVER ROTRY DSC VLV R

14019-014

Unavailable

8

"0" RING,120MM

92055-019

Unavailable

9

ROLLER,5X12

610A0512

$4.53

10

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.61

11

RING-POSITION,T=1.98

14013-1004

$3.94

12,17,

CRANKCASE SET

14001-020

Unavailable

26

CRANKCASE SET

14001-032

Unavailable

13

PIN-DOWEL,6.5X10X12

552B1012

Unavailable

13

PIN,DOWEL,10X14

92043-1037

$0.76

14

STUD 8X65

172G0865

Unavailable

15

ROLLER,6X12

610A0612

$4.17

16

ROLLER,6X12

610A0612

$4.17

16

PIN-DOWEL,8X12

551A0812

$2.51

17

ROLLER,6X12

610A0612

$4.17

17

UNAVAILABLE IN PRICE BOOK

94042-016

Unavailable

18

PIN DOWEL 8X16

551A0816

$1.14

19

BOLT-STUD,8X95

172G0895

Unavailable

20

STUD 8X85

172G0885

$1.98

21

STUD 8X60

172G0860

Unavailable

22

STUD 6X90

172G0690

Unavailable

23

STUD 6X35

172G0635

Unavailable

24

BOLT-STUD,6X22

172G0622

Unavailable

27

RECEIVER OIL

14015-001

Unavailable

28

SCREW-CSK-CROS,6X16

221B0616

$0.63

29

SEAL-OIL,SB12205

92049-004

$7.95

30

WASHER PLAIN 8MM

410B0800

Unavailable

31

WASHER SPRING 8MM

461F0800

Unavailable

32

NUT,8MM

311B0800

Unavailable

33

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

34

WASHER SPRING 6MM

461F0600

Unavailable

35

NUT 6MM

311B0600

Unavailable

36

PIPE FUEL OVERFLOW

16116-001

Unavailable

37

PLUG,DRAIN,10X12

92067-001

$3.50

38

GASKET,10.5X16X1

92065-058

$3.16

39

O RING,5MM

670B1505

$2.49

39

O RING,5MM

670B1505

$2.49

40

COVER ROTRY DSC VLV L

14019-013

Unavailable

41

CAP ROTRY DSC VLV COV

14021-001

Unavailable

42

OIL SEAL VC7184

92054-002

$7.24

43

BUSH TACHOMETER GEAR

92028-042

$4.34

44

GEAR TACHOMETER

13223-003

Unavailable

45

WASHER THRUST

92026-026

Unavailable

46

SCREW PAN HEAD 6X55

220B0655

$3.28

47

GASKET 8MM

751P0800

Unavailable

47

GASKET,8.5X16X1

92065-023

$2.74

48

BOLT HEX HEAD 8X8

92003-013

$0.59

49

SHAFT IDLE GEAR

21059-001

Unavailable

50

WASHER PLAIN 6MM

92022-081

$1.08

51

WASHER LOCK 6MM

463H0600

Unavailable

52

BOLT-UPSET,6X16

112G0616

Unavailable

53

GEAR IDLE

21058-001

$18.97

54

BEARING NEEDLE 121613

21060-001

$7.15

55

WASHER THRUST 12MM

92022-080

$1.69

56

CIRCLIP-TYPE-C,12MM

480J1200

$0.67
