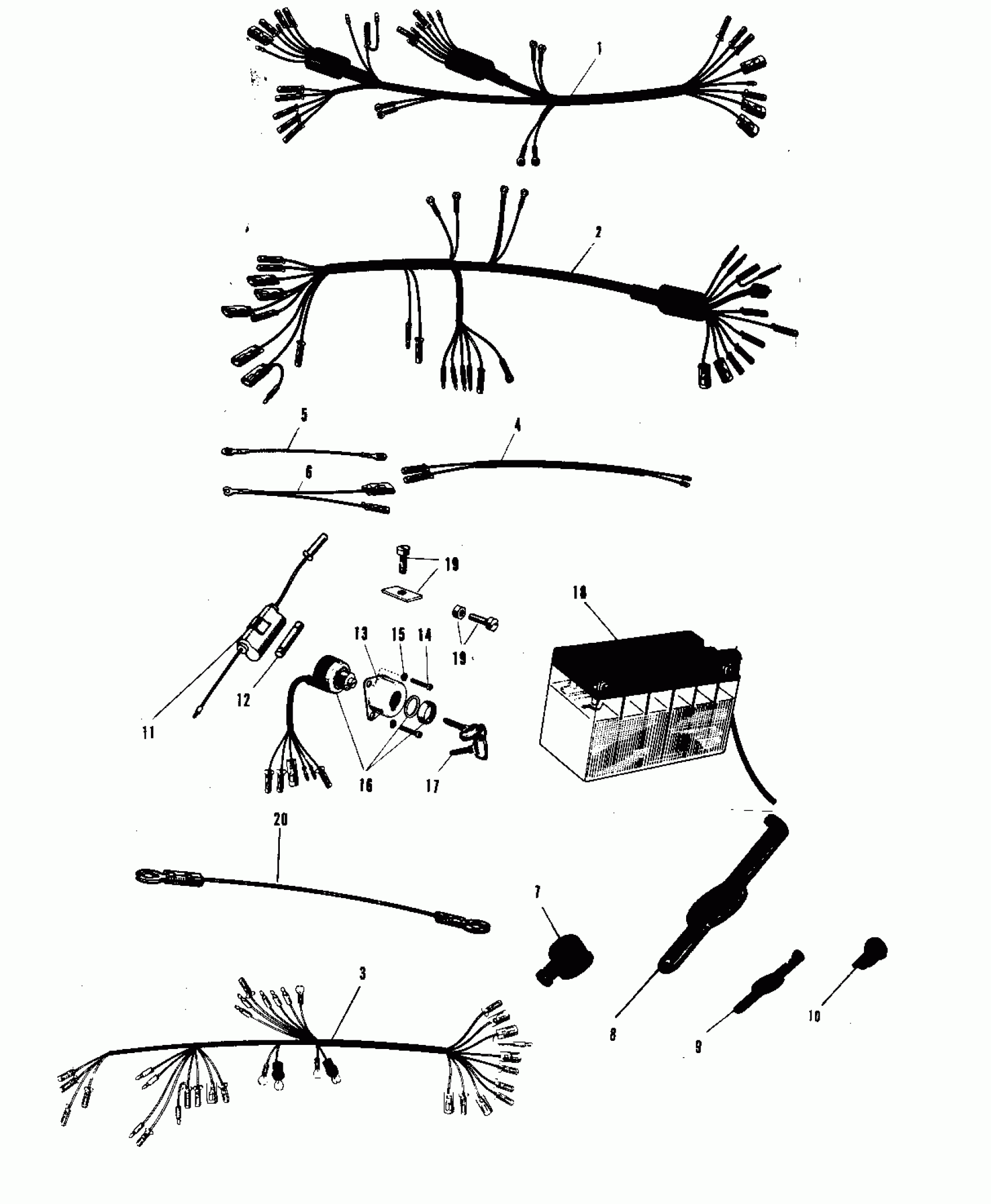

Kawasaki A1-B CHASSIS ELECTRICAL EQUIPMENT Diagram

#

Description
Price

1

WIRING HARNESS MAIN

26001-022

Unavailable

2

WIRING HARNESS MAIN

26001-036

$76.42

3

WIRING HARNESS MAIN

26001-039

$114.66

4

WIRING HARNESS REAR

26002-007

$4.97

5

WIRE BATTERY GROUND

26010-014

$3.00

6

WIRE BATTERY LEAD

26010-015

Unavailable

7

CAP BAT TERMINAL RUBB

92073-001

$12.80

8

BAND RUBBER

92072-018

Unavailable

9

BAND RUBBER

92072-013

$3.12

10

CAP IGNITION COIL

92073-003

$3.15

11,12

FUSE ASSY

26004-026

Unavailable

11,12

FUSE ASSY

26004-005

$11.54

12

FUSE 10A

26006-001

Unavailable

12

FUSE 20A

26006-002

$2.95

13

HOUSING IGNITION SW

27009-001

Unavailable

14

SCREW PAN HEAD 6X12

220B0612

Unavailable

15

WASHER SPRING 6MM

461F0600

Unavailable

16,17

SWITCH ASSY IGNITION

27005-013

Unavailable

17

KEY BLANK

27008-016

Unavailable

17

KEY BLANK

27008-016

Unavailable

17

KEY BLANK

27008-016

Unavailable

17

KEY BLANK

27008-016

Unavailable

17

KEY BLANK

27008-016

Unavailable

17

UNAVAILABLE IN PRICE BOOK

27008-027

Unavailable

17

UNAVAILABLE IN PRICE BOOK

27008-027

Unavailable

17

UNAVAILABLE IN PRICE BOOK

27008-027

Unavailable

17

UNAVAILABLE IN PRICE BOOK

27008-027

Unavailable

17

UNAVAILABLE IN PRICE BOOK

27008-027

Unavailable

17

KEY SET NO 521

27008-027-21

Unavailable

17

KEY SET NO 522

27008-027-22

$8.41

17

KEY SET NO 523

27008-027-23

Unavailable

17

KEY SET NO 524

27008-027-24

Unavailable

17

KEY SET NO. 525

27008-027-25

$6.73

18,19

YUA BAT 12N7-3B

K26012-016

$51.23

18

YUA BAT 12N9-4B-1

26012-017

$53.18

19

SCREW BATTERY TERMNAL

26013-002

Unavailable

20

WIRE GROUND

26011-025

$8.83
