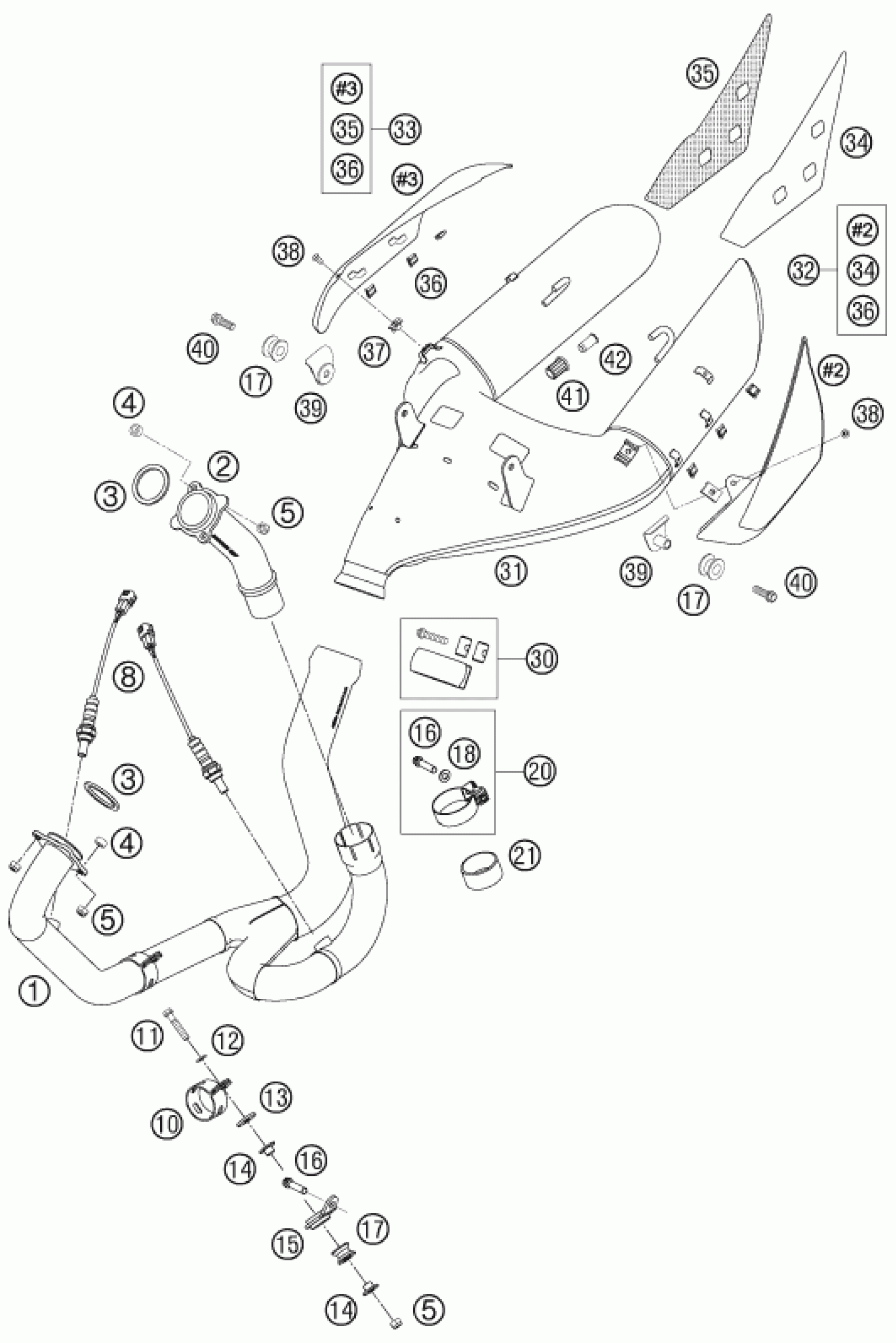

KTM 990 SUPER DUKE R 2007 EXHAUST SYSTEM Diagram

#

Description

Price

30

EXHAUST CLAMP CPL. 05

61005052000

Unavailable

31

SILENCER 07

61105083000

Unavailable

32

HEAT PROTECTOR L/S CARBON 07

6110519002049

Unavailable

33

HEAT PROTECTOR CARBON R/S 07

6110519003049

Unavailable

34

THER.PROT.FOIL SILENCER L/S

61105190022

Unavailable

35

THER.PROT.FOIL SILENCER R/S

61105190032

Unavailable

36

DAMP. COMPON. SILICONE GREY 05

61005091000

Unavailable

37

clip nut M6

54603048100

Unavailable

38

Oval head screw ISK ISO7380 M6

0738060101

Unavailable

39

ANTI-ROTATION ELEMENT CPL. 05

61005083011

Unavailable

40

HH COLLAR SCREW M 8X25 WS=10

0015080253

Unavailable

41

RUBBER SILENCER SUPPORT 05

61005013000

Unavailable

42

Sleeve silencer support

61005014000

Unavailable

1

EXHAUST PIPE FRONT 07

61105007000

Unavailable

2

EXHAUST PIPE REAR 07

61105008000

Unavailable

3

Exhaust gasket 05

61005005000

Unavailable

4

SPACER BUSH. 8,5X15X7,5 05

61005009000

Unavailable

5

self-locking nut M8 Cu

51010086100

Unavailable

8

LAMBDA SENSOR 05

61041090000

Unavailable

10

CLAMP EXHAUST PIPE 05

61005007049

Unavailable

11

HH COLLAR SCREW M 8X40 WS=10

0015080403

Unavailable

12

WASHER DIN9021-A 8,4

0021080003

Unavailable

13

INSOLATE WASHER 8,5X28X3

51005067000

Unavailable

14

collar bushing 8.5x12x23.5x10

58405050065

Unavailable

15

EXHAUST PIPE BRACKET FRONT 07

62505015150

Unavailable

16

HH COLLAR SCREW M 8X35 WS=10

0015080353

Unavailable

17

damp. component silicone grey

54305068100

Unavailable

20

EXHAUST CLAMP 52,2MM 07

61105051000

Unavailable

21

Graphite ring 45X50X25

58405005001

Unavailable

18

washer DIN 125 A -8.4

0125080003

Unavailable
