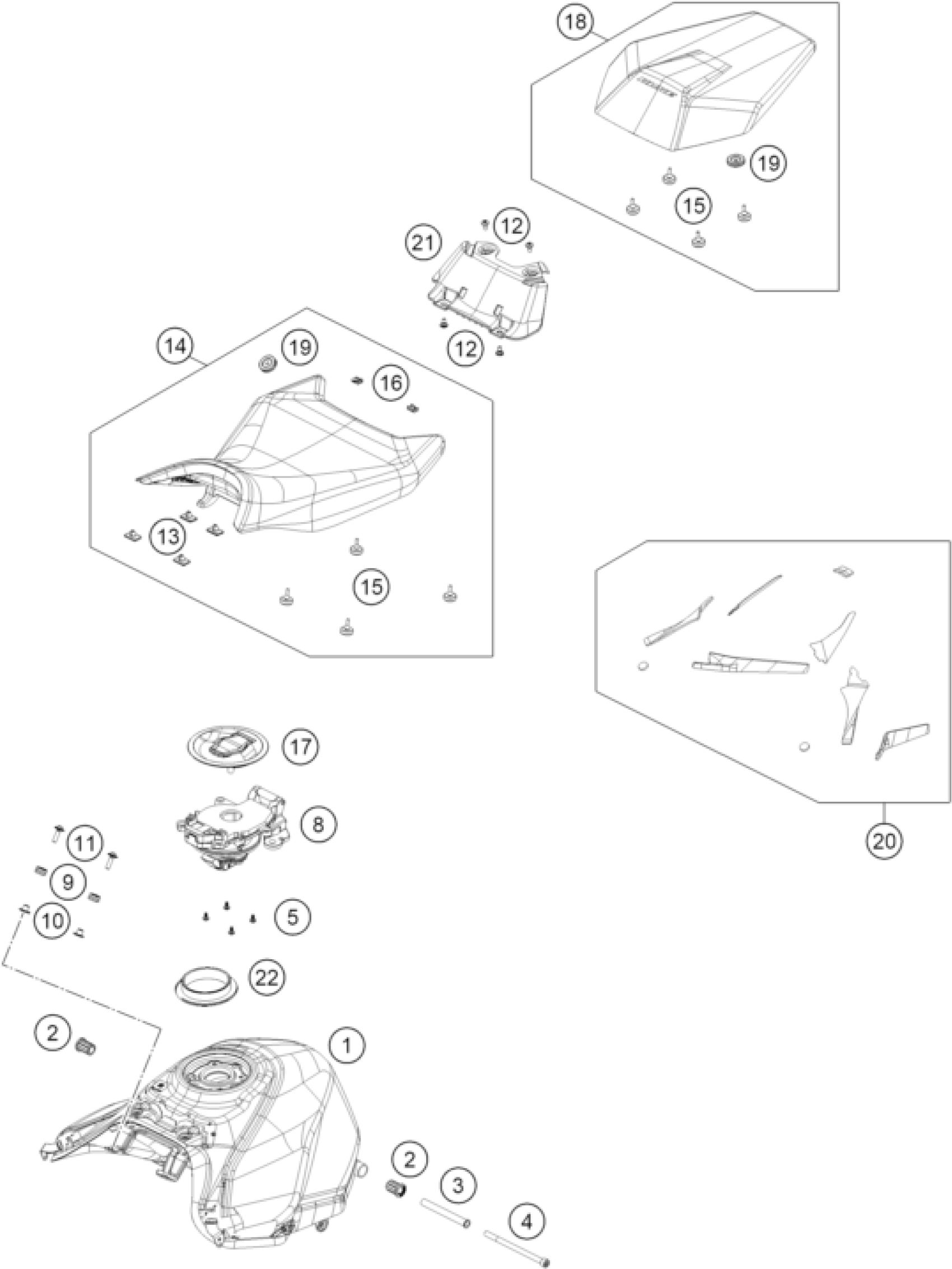

KTM 990 DUKE, orange 2024 TANK, SEAT Diagram

#

Description

Price

1

D950 552 TANK W/O -EB ELE ORNG

A60707013000EBA

Unavailable

2

Rubber bushing

0650001801100

Unavailable

3

Tank bushing

0900000809900

Unavailable

4

Cap head bolt ISO 14579 M8x130

0145790813000S

Unavailable

9

DAMP. COMPONENT ABS MODUL

62142041000

Unavailable

10

Collar bushing 6,5x9x18x8.5

61342041100

Unavailable

11

Collar screw M6x22-8.8 ISA30

69014117000

Unavailable

14

Rider seat cmpl.

A60707040000C1A

Unavailable

15

Distance rupper airbox 03

60006001021

Unavailable

16

clip nut M5

69008021080

Unavailable

12

special screw M5x12

69008021160

Unavailable

13

Isolation pad

77307040041

Unavailable

8

Fuel tank cap without cover

A60707008066

Unavailable

17

Fuel tank cap cover

A60707008060

Unavailable

18

Passenger seat

A60707047000C1A

Unavailable

19

Rubber grommet, standby gas se

60006001023

Unavailable

20

Tank protector kit 990 Duke '2

A60707013044

Unavailable

21

Seat installation

A60707040046

Unavailable

5

EJOT DELTA PT SCREW 30X6

0081030063

Unavailable

22

Fuel tank cap

96307008020

Unavailable
