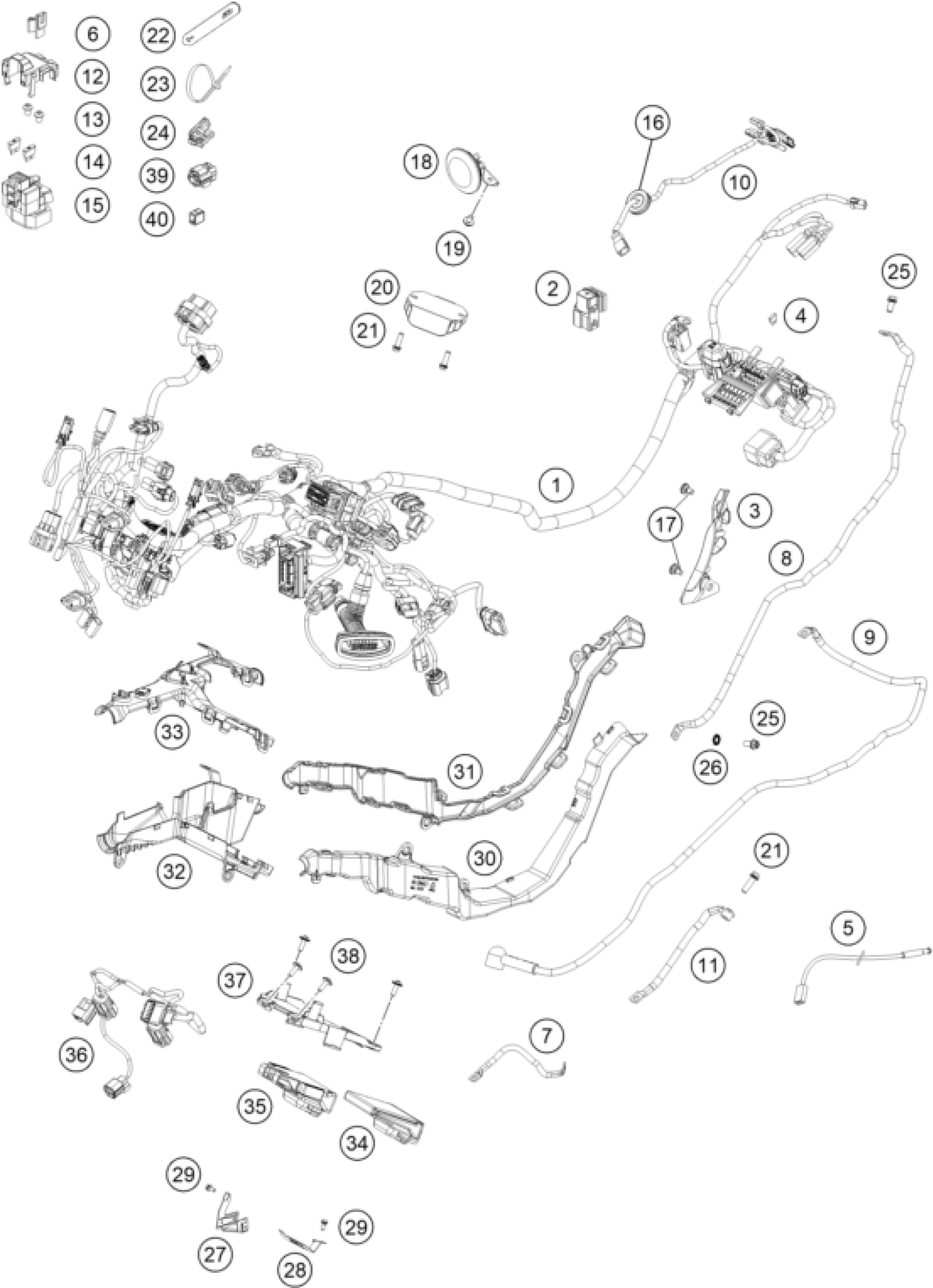

KTM 990 DUKE, black 2024 WIRING HARNESS Diagram

#

Description

Price

1

Main wiring harness

A60711075000

Unavailable

2

RELAY CM1A-R-12V-H80 07

61111057000

Unavailable

3

Line cover

A60703099000

Unavailable

4

FUSE 10A 07

75011088010

Unavailable

5

Temperatur sensor

61111018100

Unavailable

8

Ground wire starter battery

A60711097000

Unavailable

9

Starter cable

A60711059000

Unavailable

10

Rear wiring harness cmpl.

A62411076033

Unavailable

11

Battery cable

A60711059050

Unavailable

12

Cover flap, starter relay

64111058110

Unavailable

13

AH collar screw DIN 912 M6x8

0912060083

Unavailable

14

Plug-in fuse, big 30A

58011109130

Unavailable

15

Starter relay

76211058000

Unavailable

18

Direct current horn complete

64111060033

Unavailable

19

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

20

VOLTAGE REGULATOR

60311034000

Unavailable

21

HH collar screw M6x20 TX30

0025060206S

Unavailable

22

RUBBER CABLE TIE 45MM 03

60011093045

Unavailable

23

Cable tie 200/4.6mm black

44011076200

Unavailable

23

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

24

Cable tie w. socket D=6.5

69011092000

Unavailable

25

HH collar screw M6x12 TX30

0025060126

Unavailable

26

CONTACT WASHER M6 VSV-K6

58411098100

Unavailable

30

Main wiring duct cover

A60711047010

Unavailable

31

Main wiring duct

A60711047020

Unavailable

32

Kabelkanal Unterteil

A60711047030

Unavailable

33

Kabelkanal Oberteil

A60711047040

Unavailable

16

Gummitülle d 22.5/5/2

64106001025

Unavailable

17

special screw M5x12

69008021160

Unavailable

27

Lambda knock sensor conn. supp

A60711038030

Unavailable

28

Oxygen sensor connector suppor

A60711038041

Unavailable

29

HH collar screw M5x12 TX30

0025050126

Unavailable

34

BCU1.0 EXT

T03711033000

Unavailable

35

Rubber band BCU

T03711033050

Unavailable

23

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

6

Plug clip

000700000EL003

Unavailable

7

Ground wire starter frame

A60711096000

Unavailable

36

Engine wiring harness

63711085000

Unavailable

37

Bracket motorcycle control uni

A60711033010

Unavailable

38

SPECIAL SCREW M6X18 ISA30 08

69014017000

Unavailable

40

dummy plug

000700000LP001

Unavailable

39

Dummy plug KP 2p/sealed

000700000KP001

Unavailable
