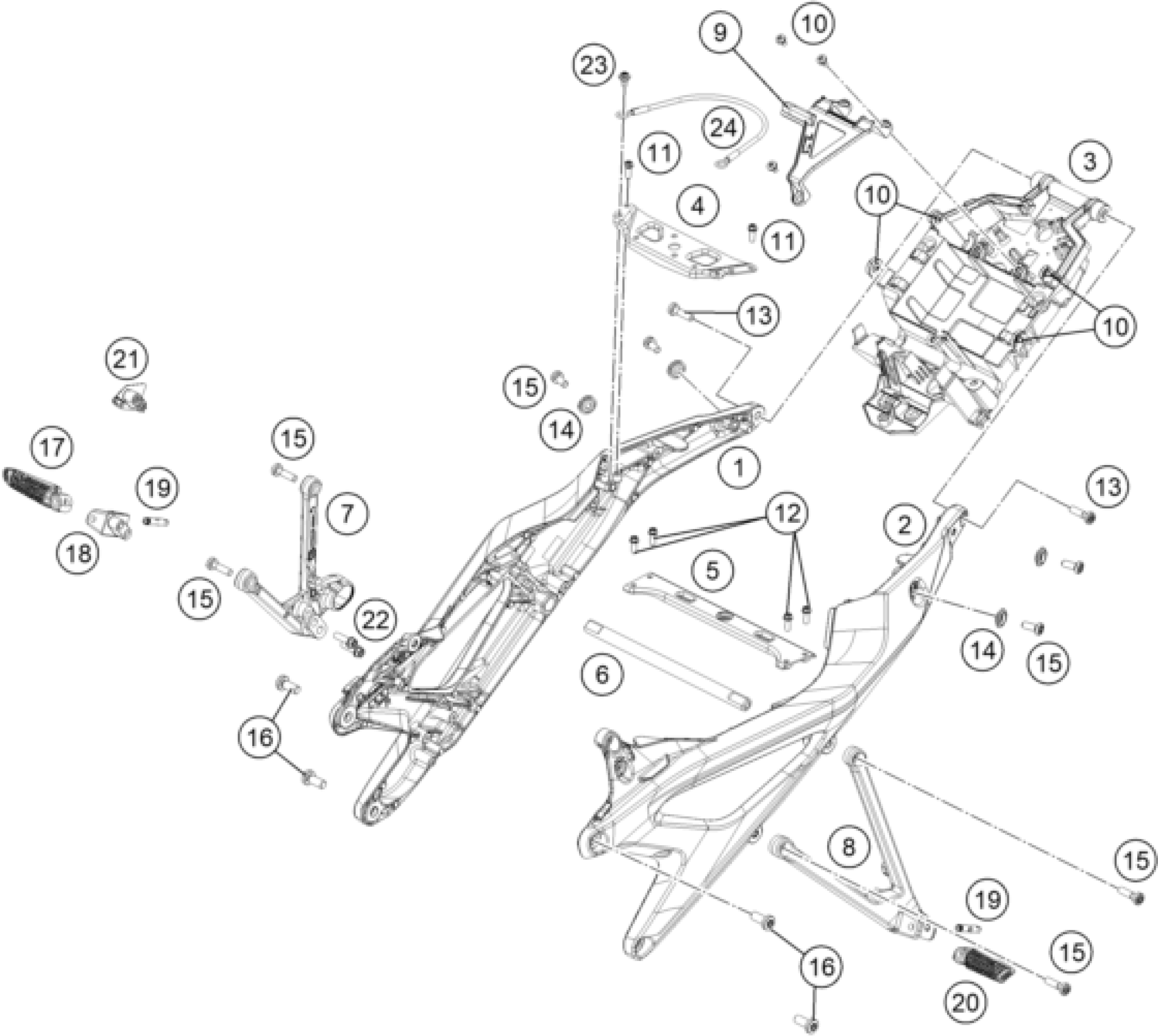

KTM 990 DUKE, black 2024 SUBFRAME Diagram

#

Description

Price

1

Subframe right

A6070300202056

Unavailable

2

Subframe left

A6070300201056

Unavailable

3

Tail piece stiffener

A60703002050

Unavailable

4

Cross-bracing subframe

A60703002060

Unavailable

5

Cross-bracing subframe

A60703002030

Unavailable

6

Cross-bracing footpeg bracket

A60703002040

Unavailable

7

Silencer bracket

A60705084000C1

Unavailable

8

Footpeg bracket rear left

A60703048000C1

Unavailable

9

Battery holding bracket

A60711055000

Unavailable

10

special screw M5x12

69008021160

Unavailable

11

Hex collar screw M5x12 ISA30 S

0025050126S

Unavailable

12

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

13

AH collar screw M8x30 ISA45

0035080306S

Unavailable

15

SHCS M8x20 TX45

0035080206S

Unavailable

16

HH collar screw M10x24 ISA45 S

0035100249S

Unavailable

17

Rear footpeg right cmpl.

61703051033C1

Unavailable

18

Footpeg bracket rear right

A60703049000C1

Unavailable

19

Rear foot peg bolt

61703053000

Unavailable

20

Rear footpeg left cmpl.

61703050033C1

Unavailable

22

HH COLLAR SCREW M8X30 TX40

0025080306S

Unavailable

14

SPECIAL WASHER D=23X7,2MM

61334041000

Unavailable

23

Special screw M6x15x5,5-8.8 MK

0900000601500S

Unavailable

24

Passenger strap

A60707048050

Unavailable

21

Passenger footpeg disassembly

A60703055000

Unavailable
