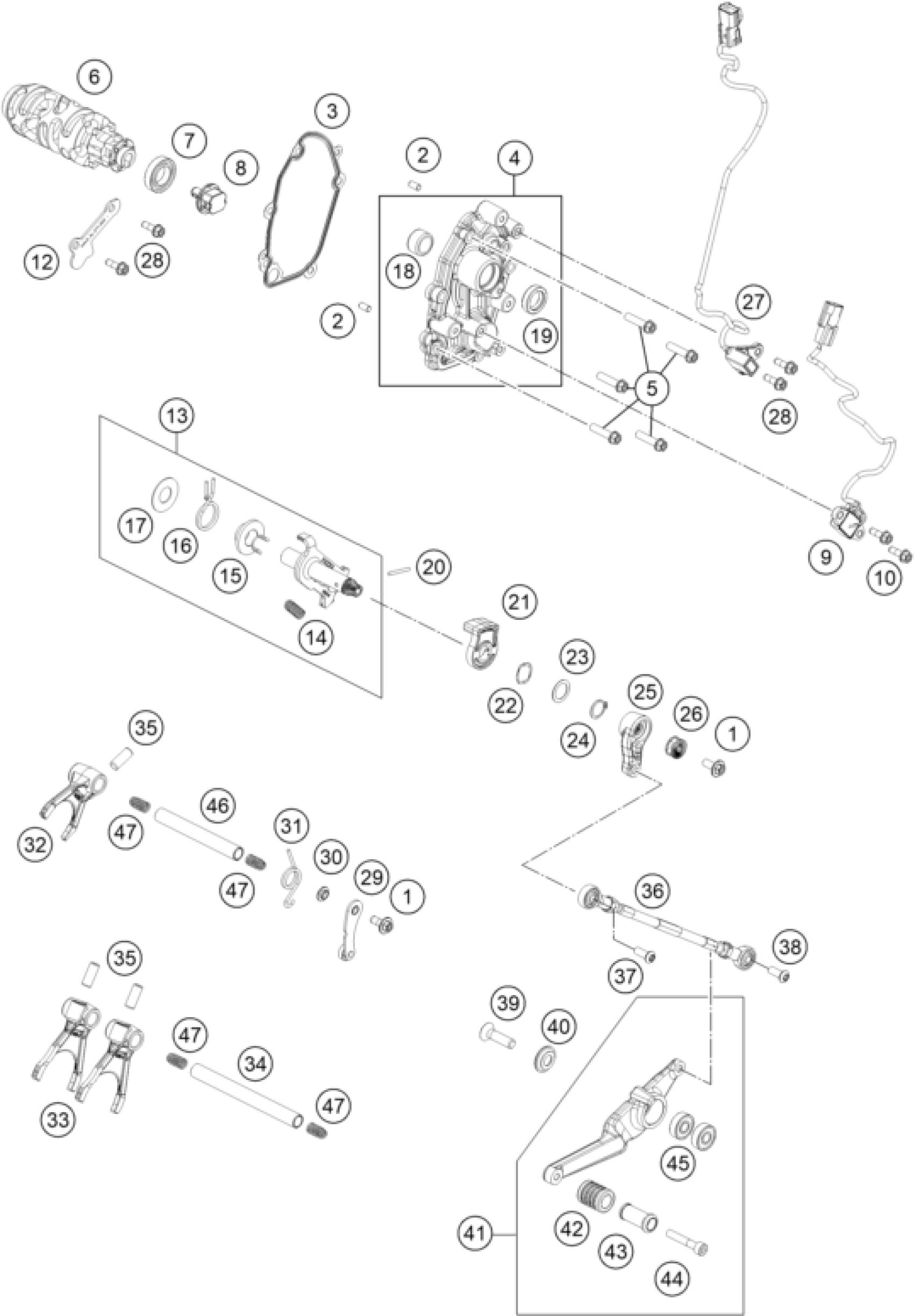

KTM 990 DUKE, black 2024 SHIFTING MECHANISM Diagram

#

Description

Price

6

Shift drum

A64034012000

Unavailable

7

GOOVED BALL BEAR. 6903 JR C4

0625069030

Unavailable

8

Magnet bracket

A64034050000

Unavailable

9

gear position sensor

79211023000

Unavailable

10

CYLIND. SCR. DIN6912 M5X12 8.8

0984050123S

Unavailable

13

Combustion chamber insert

A64034005033

Unavailable

14

TENSIONING SPRING 0,8MM

56534013100

Unavailable

15

SPRING GUIDE

54634020000

Unavailable

16

RETURNSPRING 2MM

61234014000

Unavailable

17

STOP DISK 14X30X1

54634050000

Unavailable

18

needle sleeve HK 1412 14x20x12

54632095000

Unavailable

19

radial shaft seal 14x24x6 B

0760142460

Unavailable

20

dowel pin DIN 7 A1 2.5m6x24

0007025241

Unavailable

21

magnet holder

63534050000

Unavailable

22

wave spring Smalley SSB-0075-S

63534050010

Unavailable

23

Thrust washer DIN 988 14x20x0.

0988142005

Unavailable

24

retaining ring DIN 471 14x1

0471140100

Unavailable

25

Shift shaft linkage

A60734030000C1

Unavailable

26

PAIR NORDLOCK WASHER M6

50233041500

Unavailable

27

Shift assistant sensor

63534051000

Unavailable

28

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

29

detent arm cpl.

63534024000

Unavailable

30

step washer

63534052000

Unavailable

31

Detent arm rotary spring

0102701502200

Unavailable

32

shift fork 5-6 gear

63534002000

Unavailable

33

Shift fork

63534001100

Unavailable

34

Shift fork shaft

75034019200

Unavailable

35

needle roller D8x20

0402080200

Unavailable

36

Shift rod cmpl.

A60734036044

Unavailable

37

Oval head screw ISR M6x20-A2-7

0738060205S

Unavailable

38

Oval head screw TX M6x16 A2-70

0738060165S

Unavailable

39

COUNTER-SUNK SCREW ISA45 M8X30

0019080306S

Unavailable

40

Fasson Disc D=23x5

64134031020

Unavailable

41

Gear shift lever cmpl.

A60734031033C1

Unavailable

42

RUBBER FOR SHIFT LEVER 05

61034035000

Unavailable

43

STEP PLATE SHIFTING LEVER

69034032000

Unavailable

44

AH SCREW DIN0912-M 6X35

0912060353

Unavailable

45

Grooved ball bearing 608 2RS C

0625006087

Unavailable

1

HH collar screw M6x15 TX30

0024060156S

Unavailable

46

SHIFTING MAIN L=93MM 05

77034019000

Unavailable

2

needle roller DIN 5402 5x9.8

0402050980

Unavailable

3

Shift cover gasket

A64030072000

Unavailable

4

Shift cover cmpl.

A6403007103324

Unavailable

5

HH collar screw M6x25 TX30

0025060256

Unavailable

12

Retaining bracket, shift rail

A64034011000

Unavailable

47

Compression spring L=25mm D=0.

58038023400

Unavailable
