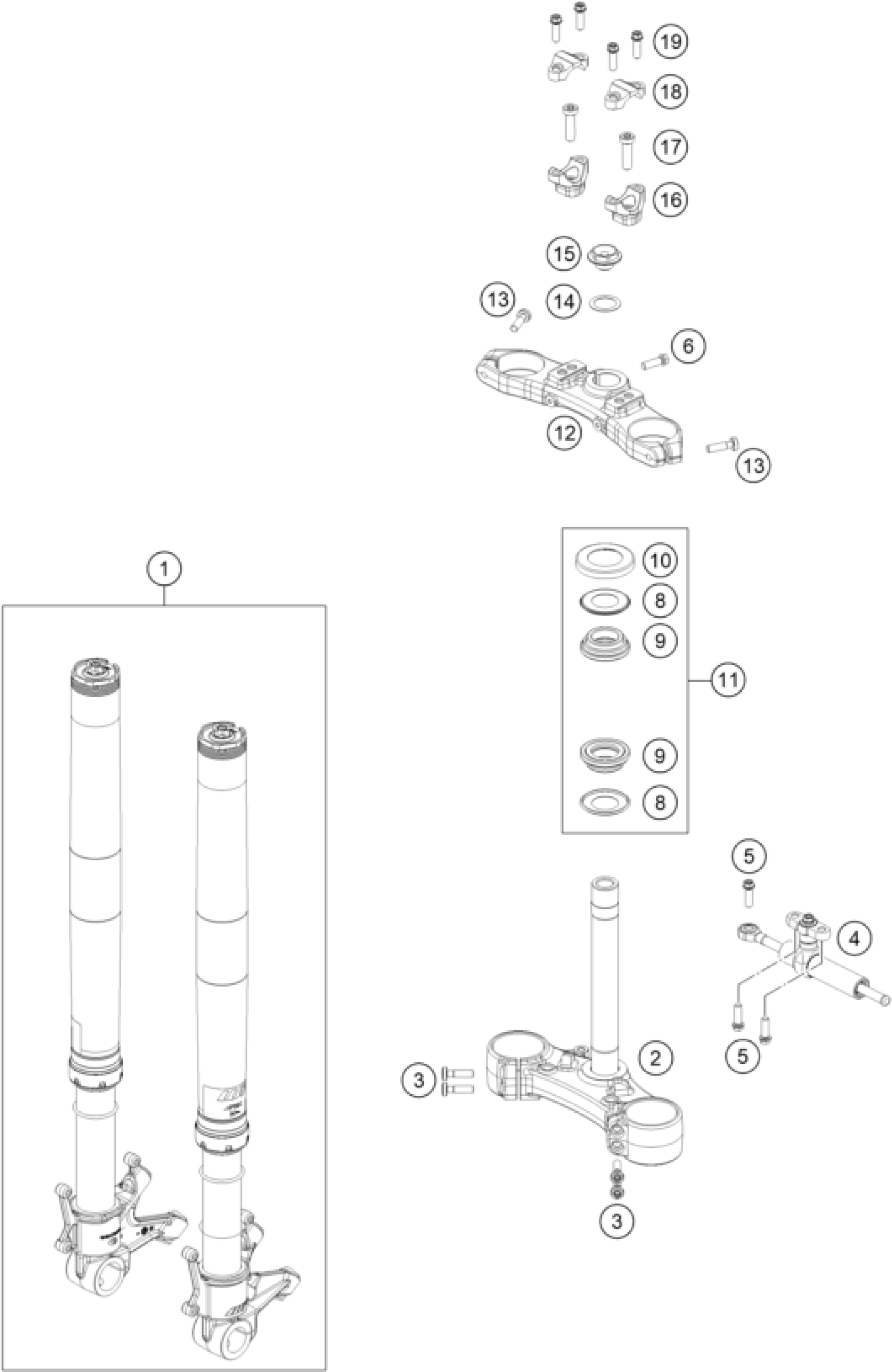

KTM 990 DUKE, black 2024 FRONT FORK, TRIPLE CLAMP Diagram

#

Description

Price

1

FORK KTM 990 Duke 2024

A607C126X201102

Unavailable

2

Triple clamp bottom cmpl. X=32

6360103203230S

Unavailable

3

AH collar screw M8x30 ISA45

0035080306

Unavailable

4

Steering damper cpl.

16181R54E

Unavailable

5

HH COLLAR SCREW M8X25 TX40

0025080256S

Unavailable

8

Stearing head gasket

69001084100

Unavailable

9

STEERINGHEAD KPL.17

69001181000

Unavailable

10

PROT. RING STEER. HEAD BEARING

69001086100

Unavailable

11

Stearing head rep. Kit

69001181010

Unavailable

12

Top triple clamp x=32 mm

A60701034032C1

Unavailable

13

ISA collar screw M8x25 ISA45

0035080256S

Unavailable

14

Shim ring

63601042000

Unavailable

15

Steering head screw M20x1.5 SW

54801036300C1

Unavailable

16

HANDLEB.SUPP. D=28MM H=37MM

5940103903730

Unavailable

17

AH-COLLAR SCREW M10X40 ISA45

0032100406S

Unavailable

18

HANDLEBAR CLAMP 28MM

7720103800030

Unavailable

19

HH collar screw M8x25

0025080256

Unavailable

6

HH COLLAR SCREW M8X25 WS=10

0015080256S

Unavailable
