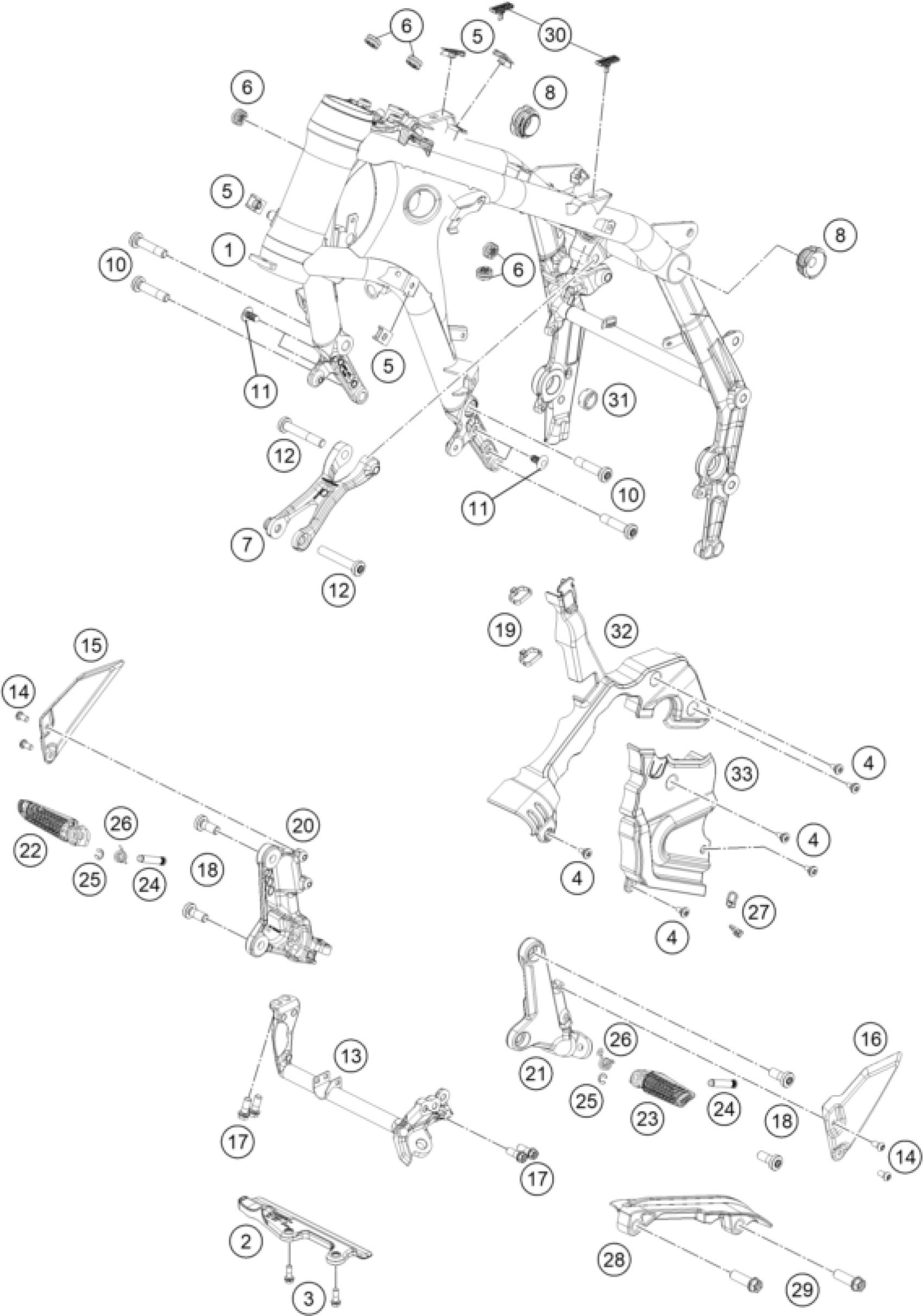

KTM 990 DUKE, black 2024 FRAME Diagram

#

Description

Price

1

Frame

A60703001000C1

Unavailable

2

Cross pipe protector

A60703094000

Unavailable

3

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

4

special screw M5x12

69008021160

Unavailable

5

clip nut M6

54603048100

Unavailable

6

DAMP. COMPONENT ABS MODUL

62142041000

Unavailable

7

Engine brace

A60703013000C1

Unavailable

8

Plug D=34

A60703088000

Unavailable

11

PLUG FOR M8

61103165000

Unavailable

12

AH-COLLAR SCREW M10X60 ISA45

0035100609S

Unavailable

13

Querverbindung

A60703001056C1

Unavailable

15

Heel protector

A60703039010C1

Unavailable

16

Heel protector left

A60703038010C1

Unavailable

19

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

17

HH collar screw M8x20 TX40 SL

0025080206S

Unavailable

14

Round head screw ISR M6x12-A2-

0738010601200S

Unavailable

33

Front sprocket cover

A60703096000

Unavailable

10

ISA screw M10x45 ISA45 fully t

0035100459S

Unavailable

18

HH collar screw M10x24 ISA45 S

0035100249S

Unavailable

20

Footpeg bracket front right

A60703039000C1

Unavailable

21

Footpeg bracket front left

A60703038000C1

Unavailable

22

Front footpeg right

61703041000C1

Unavailable

23

Front footpeg left

61703040000C1

Unavailable

24

Footpeg bolt

61703043000

Unavailable

25

retaining washer DIN 6799 - 6

0799060003

Unavailable

26

Spring footrest front

61703042000

Unavailable

27

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

28

Chain slider

A60703070000

Unavailable

29

HH COLLAR SCREW M8X25 TX40

0025080256S

Unavailable

30

Seat cowl pad, left, elastomer

61907040055

Unavailable

31

ADJUSTING RING M24X1 , 5 07

75004046000

Unavailable

32

Cable cover

A60703096030

Unavailable
