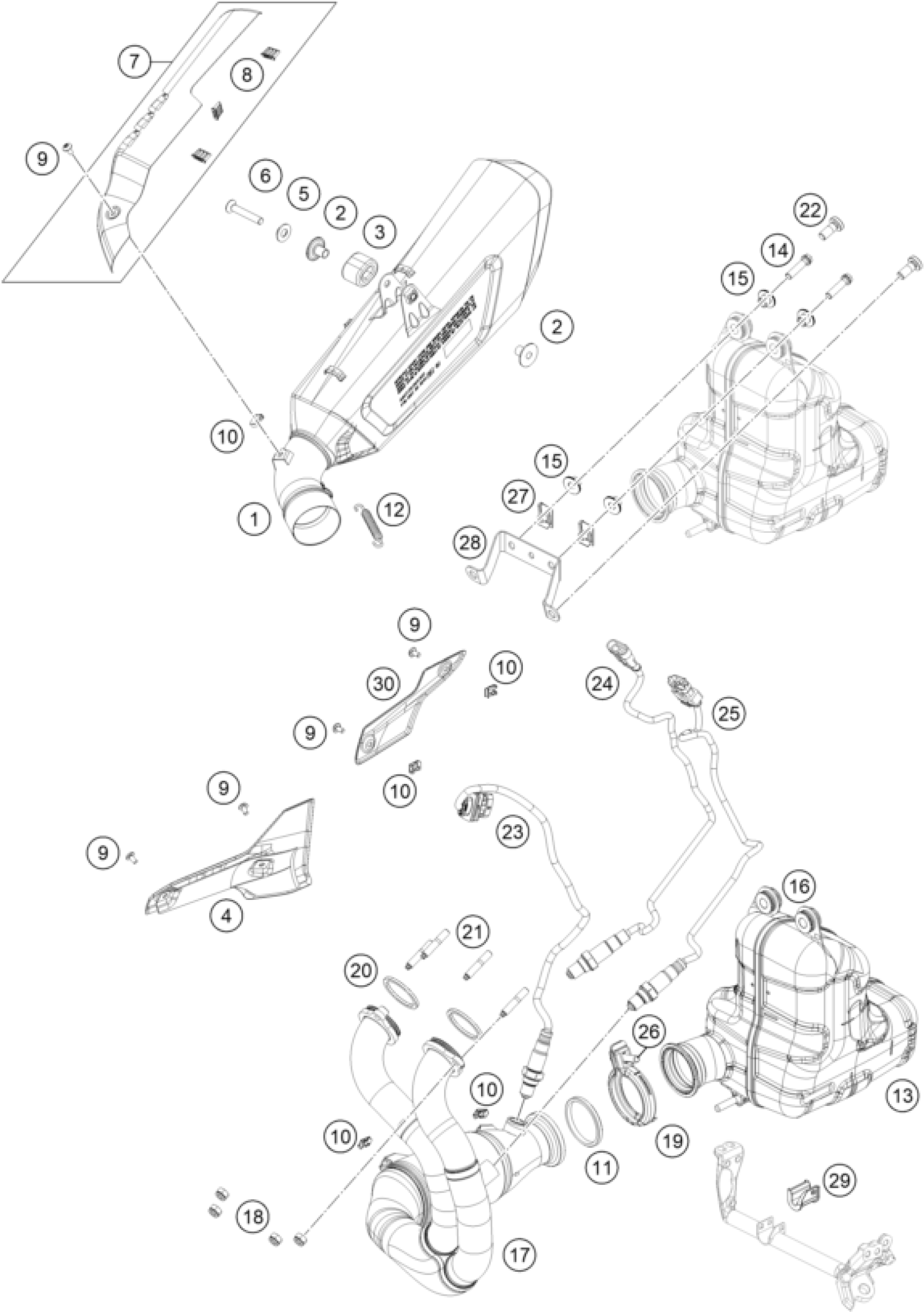

KTM 990 DUKE, black 2024 EXHAUST SYSTEM Diagram

#

Description

Price

1

Silencer

A60705083000

Unavailable

2

Bushing 8.5X11X29

61305069000

Unavailable

3

DAMPING RUBBER

61305068000

Unavailable

5

Shape disc Alu

60405069000

Unavailable

6

COUN.-SUNK SCREW M8X50 ISA10.9

0019080506

Unavailable

7

Heat protection preassembled b

A60705090033C1

Unavailable

8

DAMPING ELEMENT SILICON

27005011011

Unavailable

9

SCREW TORX M5X10

78105081010

Unavailable

10

RANGE CHANGE METAL NUT M5 INOX

54603048600

Unavailable

11

Seal ring, mica 50 mm

0780005406200

Unavailable

12

Tension spring L=62mm

A46005016000

Unavailable

13

Premuffler preass.

A64005050033

Unavailable

14

HH collar screw M8x35 TX40

0025080356

Unavailable

15

Collar bushing 8.5x12.5x23.5x1

61705069000

Unavailable

16

damp. component silicone grey

54305068100

Unavailable

17

Header

A64005007000

Unavailable

18

self-locking nut M8 Cu

51010086100

Unavailable

20

Exhaust gasket

A64005005000

Unavailable

21

stud screw 835 M8x25 - 10.9

63505015000

Unavailable

22

HH collar screw M10x24 ISA45 S

0035100249S

Unavailable

23

Oxygen sensor

A60741090000

Unavailable

24

O2 Sensor LSF 4

63541090000

Unavailable

25

Oxygen sensor

63541190100

Unavailable

26

Hex collar screw M8x40 ISA40

0000240804000

Unavailable

27

RANGE CHANGE METAL NUT M8

54603048000

Unavailable

19

Clamp, Norma VPP 71

0310001807100

Unavailable

4

Heat protection front

A60705011000

Unavailable

28

Premuffler bracket

A64005050075

Unavailable

29

Rubber silencer bracket

A64005013000

Unavailable

30

Heat shield

A60705030000C1

Unavailable
