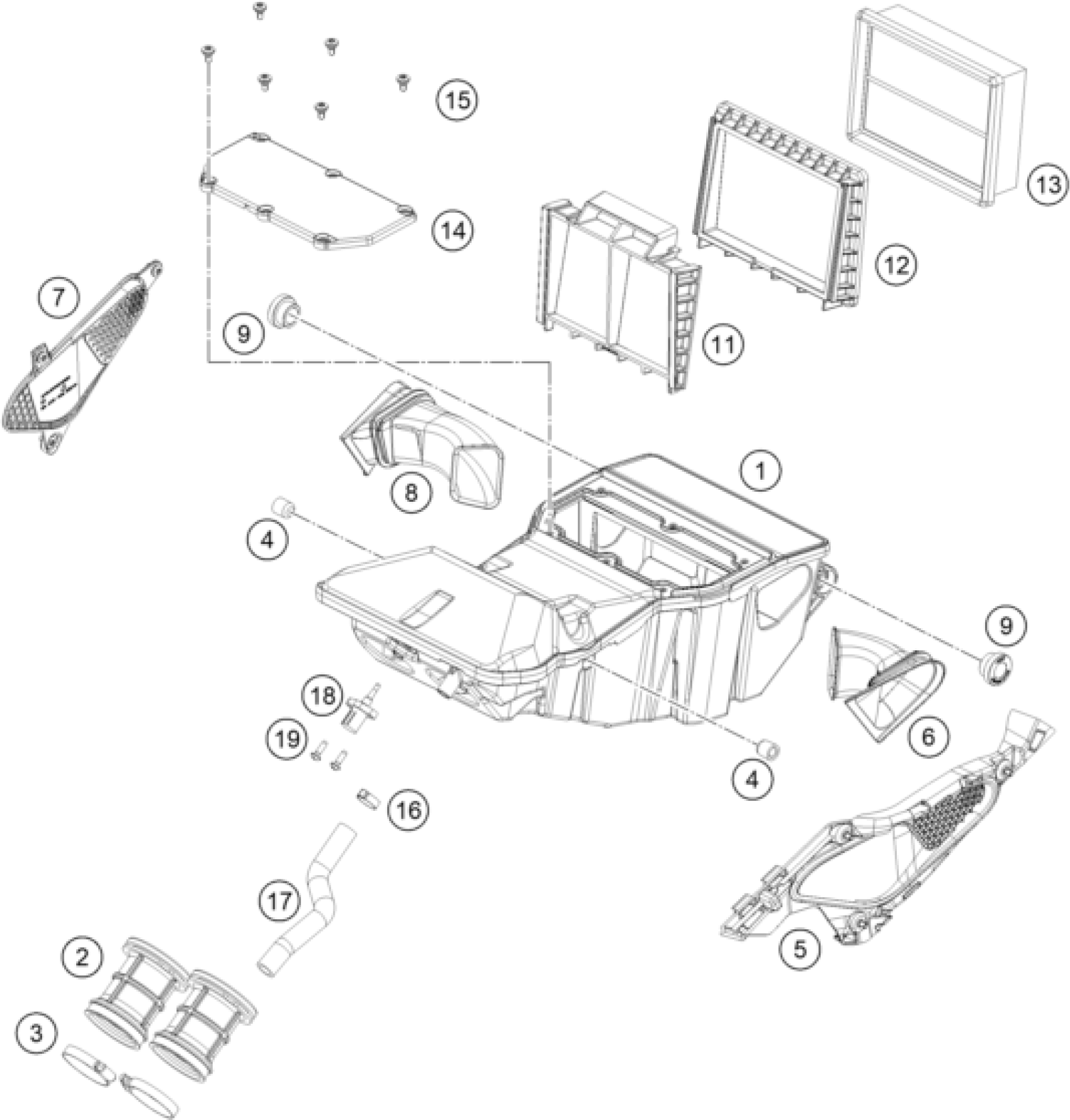

KTM 990 DUKE, black 2024 AIR FILTER Diagram

#

Description

Price

1

Air filter box

A60706001000

Unavailable

2

Intake trumpet

63606026000

Unavailable

3

Hose clip GEMI 58

77236048000

Unavailable

4

rubber grommet

76006014000

Unavailable

6

Intake snorkel left

A60706040000

Unavailable

8

Intake snorkel right

A60706041000

Unavailable

11

Filter clamp, wedge

A60706017000

Unavailable

12

Filter clamp frame

A60706016000

Unavailable

13

Air Filter

64106015000

Unavailable

14

Air filter box, cover

A60706002000

Unavailable

15

special screw M5x12

69008021160

Unavailable

16

VARIABLE ONE-EAR CLAMP 19,8MM

00050198706

Unavailable

17

Engine vent hose

A60730087000

Unavailable

18

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

Unavailable

19

EJOT PT SCREW K50X16 1451

0081050161

Unavailable

5

Screen, intak port, right

A60706040050

Unavailable

7

Intake port screen left

A60706041050

Unavailable

9

collar bushing, front tank hol

61007065000

Unavailable
