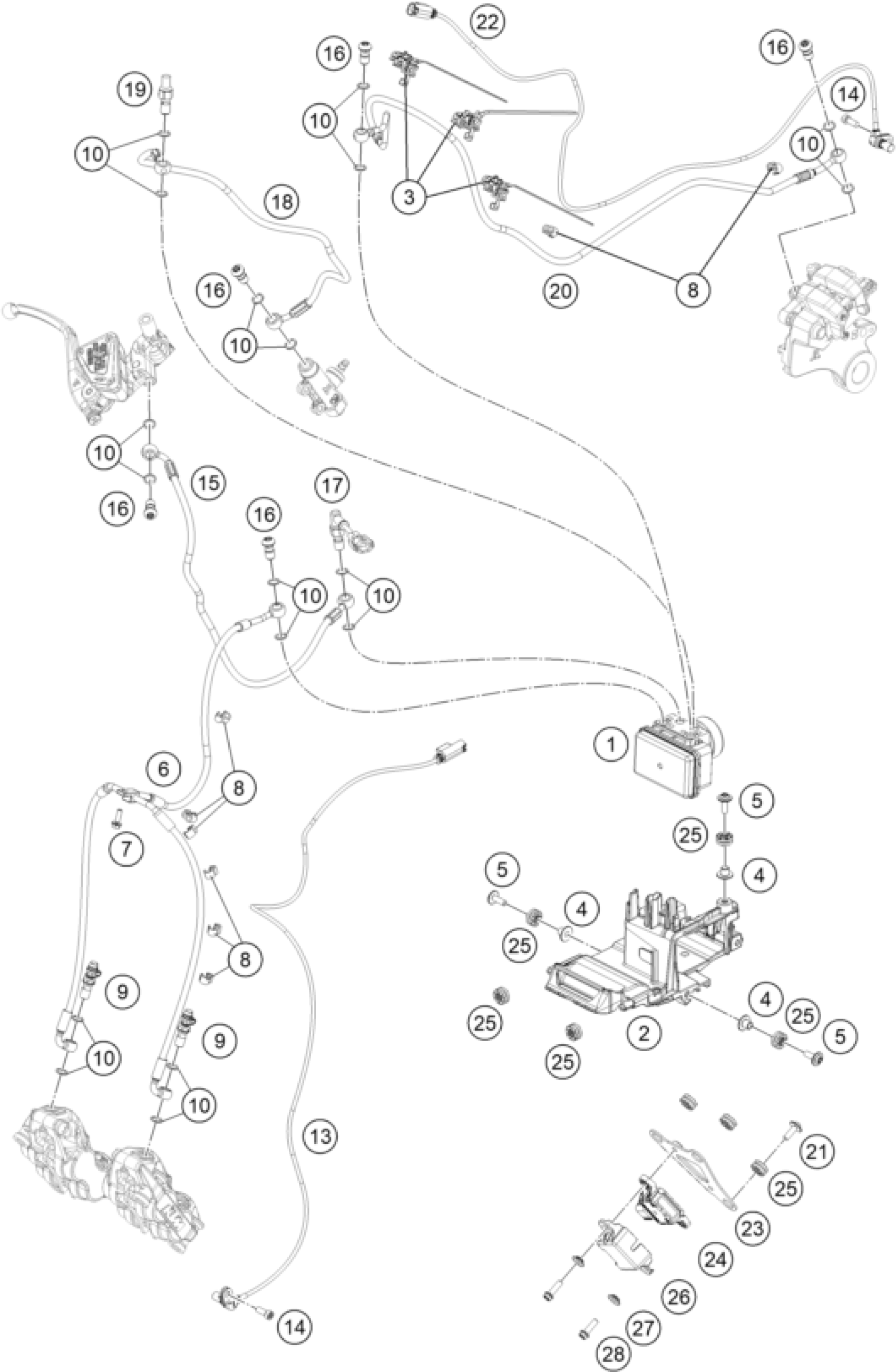

KTM 990 DUKE, black 2024 ABS Diagram

#

Description

Price

1

ABS module filled

A61042031044

Unavailable

2

ABS modulator bracket

A60742040000

Unavailable

3

Wire/cable holder

A60742051010

Unavailable

4

Collar bushing 6.5X9X18X8.5

61342041000

Unavailable

5

SPECIAL SCREW M6X18 ISA30 08

69014017000

Unavailable

6

Front brake line

A60742003000

Unavailable

7

HH collar screw M5x16 TX30

0025050166

Unavailable

8

BAR SPACER 4/7 BLACK

60111094100

Unavailable

9

BLEEDER SCREW CPL. 05

62513020000

Unavailable

10

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

13

Wheel speed sensor

A60742025000

Unavailable

14

Cap head bold ISO 14580 M6x16

014580060166

Unavailable

15

Front brake line

A60742001000

Unavailable

16

banjo bolt M10x1x19.5

62113020100

Unavailable

17

Brake light switch

63711051000

Unavailable

18

Rear brake line

A60742002000

Unavailable

19

BRAKE LIGHT SWITCH REAR

60311051000

Unavailable

20

Rear brake line

A60742004000

Unavailable

22

Wheel speed sensor DF30

A61042025000

Unavailable

23

Retaining bracket IMU

A60742091050

Unavailable

24

Angle sensor

61542090000

Unavailable

25

Damper 40 SHORE

62142041100

Unavailable

26

COVER SENSOR BOX

61342090050

Unavailable

27

Collar bushing 6x11x16x5 MM

79608152000

Unavailable

28

HH collar screw M6x20 TX30

0025060206S

Unavailable

21

SPECIAL SCREW M6X18 ISA30 08

69014017000

Unavailable
