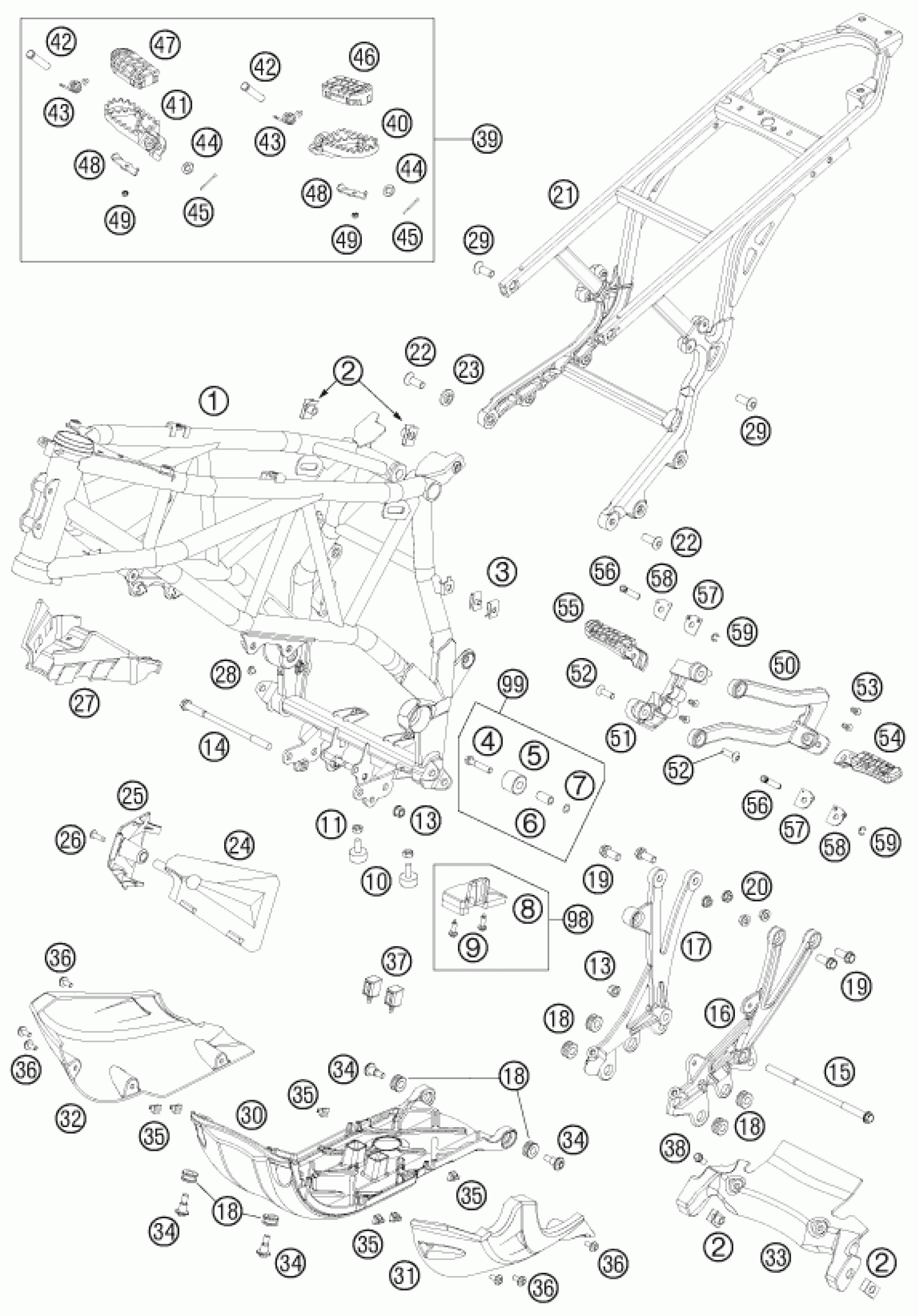

KTM 990 ADV. ORANGE ABS SPEC.EDIT <2012> FRAME Diagram

#

Description
Price

1

FRAME ''601KA'' BLACK

6010300120033

Unavailable

2

RANGE CHANGE METAL NUT M8

54603048000

Unavailable

3

clip nut M6

54603048100

Unavailable

4

HH COLLAR SCREW M8X40 TX40

0025080406

Unavailable

5

CHAIN ROLL 12X29X22,5 '98

58403060000

Unavailable

6

BUSH CHAIN ROLL 8X12X23 '98

58403060065

Unavailable

7

LOCK WASHER 8MM

36003014000

Unavailable

8

CHAIN SLIDING BLOCK 05

60004076100

Unavailable

9

EJOT PT SCREW K60X20 ALU WS=6

0017060204

Unavailable

10

BUMP RUBBER M8X25MM

58303070100

Unavailable

11

Hexagon nut DIN934 M8

0934080003

Unavailable

13

COLLAR NUT M10 WS=13

54630044000

Unavailable

14

ENGINE BRAC. SCREW M10X172 03

60003013000

Unavailable

15

ENGINE BRAC. SCREW M10X206 03

60003014000

Unavailable

16

ENGINE SUPPORT LEFT 07

6000300500001

Unavailable

17

ENGINE SUPPORT RIGHT 07

6000300600001

Unavailable

18

RUBBER SLEEVE 03

60003098000

Unavailable

19

AH collar screw M10x24 ISA45

0035100249

Unavailable

20

SELF LOCKING NUT M10 CU WS=14

54310086100

Unavailable

21

SUB FRAME BLACK 09

6000300200033

Unavailable

22

COUNTERSUNK SCREW ISA45 M10X23

0019100239S

Unavailable

23

COLLAR BUSHING 10X15X25X4 03

60003001051

Unavailable

24

COVER FRAME L/S FRONT 05

62503085000

Unavailable

25

COVER FRAME R/S FRONT 05

62503086000

Unavailable

26

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

27

SPLASH PROTECTOR FRAME 05

60003087000

Unavailable

28

PLUG ZK 8/5 06

60103088000

Unavailable

29

COUNTERSUNK SCREW ISA45 M10X28

0019100289S

Unavailable

30

UNDERRIDE PROTECTION 10

6000309100092

Unavailable

31

UNDERRIDE PROTECTION LEFT 06

60003092100

Unavailable

32

UNDERRIDE PROTECTION RIGHT 06

60003093100

Unavailable

33

LOWER TANK HOLDER FRONT 10

6000309400092

Unavailable

34

COLLAR SCREW M8 03

60003097000

Unavailable

35

CAGE NUT M6 SL 4MM 03

60003095000

Unavailable

36

HH collar screw M6x15 TX30

0024060156

Unavailable

37

VIBRATION DAMPER 03

60003096000

Unavailable

38

HH COLLAR SCREW M8X16 TX40

0025080166

Unavailable

39

FOOTPEG L/S+R/S CPL. 03

60003040033

Unavailable

40

FOOT PEG L/S SILVER 02

59003040250

Unavailable

41

FOOT PEG R/S SILVER 02

59003041250

Unavailable

42

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

Unavailable

43

FOOTREST SPRING L/S & R/S

54603041000

Unavailable

44

washer DIN 125 A 10.5

0125100003

Unavailable

45

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

46

FOOTREST RUBBER FRONT L/S 03

60003040010

Unavailable

47

FOOTREST RUBBER FRONT R/S 03

60003041010

Unavailable

48

CLOSING PANEL FRONT L/S R/S 03

60003044010

Unavailable

49

Self locking nut DIN 985 M5

0985050003

Unavailable

50

FOOTREST BRACKET REAR L/S 09

6000304800033S

Unavailable

51

FOOTREST BRACKET REAR R/S 09

6000304900033S

Unavailable

52

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

Unavailable

53

PLASTIC CAP SFL10

54403135000

Unavailable

54

FOOTREST CPL. L/S REAR 03

60003050000

Unavailable

55

Footrest cmpl. r/s rear 03

60003051000

Unavailable

56

BOLT FOR FOOTREST REAR 03

60003044000

Unavailable

57

ENGAGE PANEL FOOTREST L/S 03

60003152000

Unavailable

58

ENGAGE PANEL FOOTREST R/S 03

60003052000

Unavailable

59

retaining washer DIN 6799 - 6

0799060003

Unavailable

98

CHAIN SLIDING KIT BELOW

60004076110

Unavailable

99

CHAIN ROLL KIT 06-13

58403060010

Unavailable
