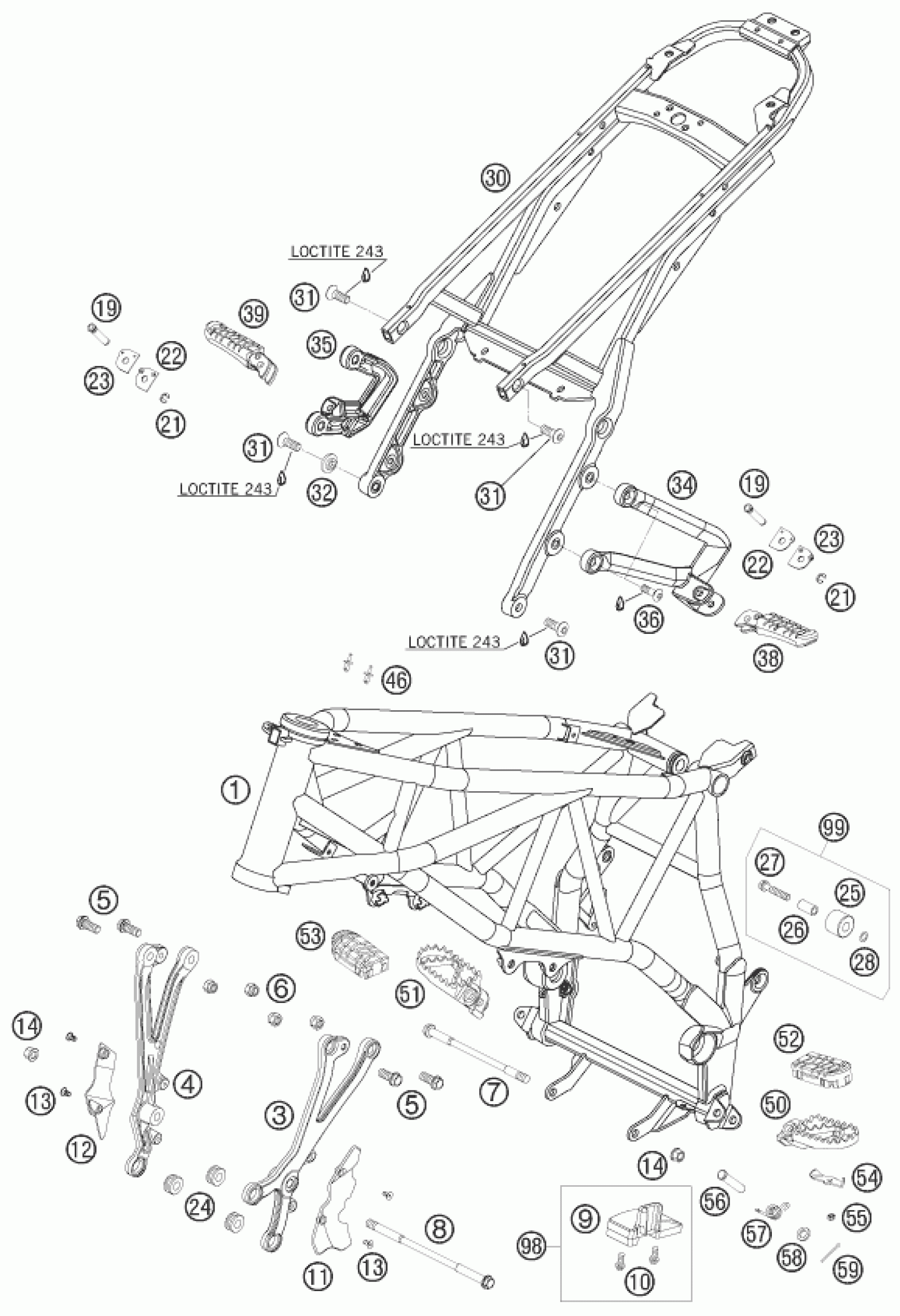

KTM 950 SUPERMOTO BLACK 2005 FRAME Diagram

#

Description
Price

1

FRAME ''FC05'' 950SM SILVER

6250300100093

Unavailable

3

ENGINE SUPPORT LEFT 05

62503005000

Unavailable

4

ENGINE SUPPORT RIGHT 05

62503006000

Unavailable

5

HH COLLAR SCREW M10X24 WS=13

0015100243

Unavailable

6

SELF LOCKING NUT M10 CU WS=14

54310086100

Unavailable

7

ENGINE BRAC. SCREW M10X172 03

60003013000

Unavailable

8

ENGINE BRAC. SCREW M10X206 03

60003014000

Unavailable

9

CHAIN SLIDING BLOCK 05

60004076100

Unavailable

10

EJOT PT SCREW K60X20 ALU WS=6

0017060204

Unavailable

11

COVER ENGINE SUPPORT LEFT 05

62503005050

Unavailable

12

COVER ENGINE SUPPORT RIGHT 05

62503006050

Unavailable

13

Flat head screw DIN7991 M5X10

0991050102

Unavailable

14

COLLAR NUT M10 WS=13

54630044000

Unavailable

19

BOLT FOR FOOTREST REAR 03

60003044000

Unavailable

21

retaining washer DIN 6799 - 6

0799060003

Unavailable

22

ENGAGE PANEL FOOTREST L/S 03

60003152000

Unavailable

23

ENGAGE PANEL FOOTREST R/S 03

60003052000

Unavailable

24

RUBBER SLEEVE 03

60003098000

Unavailable

25

CHAIN ROLL 12X29X22,5 '98

58403060000

Unavailable

26

BUSH CHAIN ROLL 8X12X23 '98

58403060065

Unavailable

27

HH COLLAR SCREW M 8X40 WS=10

0015080403

Unavailable

30

SUB FRAME ALUMINIUM 05

62503002000

Unavailable

31

FL.HEAD SCREW M10X1,25 L=27 03

60003004027

Unavailable

32

COLLAR BUSHING 10X15X25X4 03

60003001051

Unavailable

34

FOOTREST BRACKET REAR L/S 05

62503048000

Unavailable

35

FOOTREST BRACKET REAR R/S 05

62503049000

Unavailable

36

SPROCKET SCREW-AH M8X26 WS=6

54510052100

Unavailable

38

FOOTREST CPL. L/S REAR 03

60003050000

Unavailable

39

Footrest cmpl. r/s rear 03

60003051000

Unavailable

46

PLASTIC CAP FOR M6 03

60003088000

Unavailable

50

FOOT PEG L/S SILVER 02

59003040250

Unavailable

51

FOOT PEG R/S SILVER 02

59003041250

Unavailable

52

FOOTREST RUBBER FRONT L/S 03

60003040010

Unavailable

53

FOOTREST RUBBER FRONT R/S 03

60003041010

Unavailable

54

CLOSING PANEL FRONT L/S R/S 03

60003044010

Unavailable

55

Self locking nut DIN 985 M5

0985050003

Unavailable

56

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

Unavailable

57

FOOTREST SPRING L/S & R/S

54603041000

Unavailable

58

washer DIN 125 A 10.5

0125100003

Unavailable

59

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

28

LOCK WASHER 8MM

36003014000

Unavailable

99

CHAIN ROLL KIT 06-13

58403060010

Unavailable

98

CHAIN SLIDING KIT BELOW

60004076110

Unavailable
