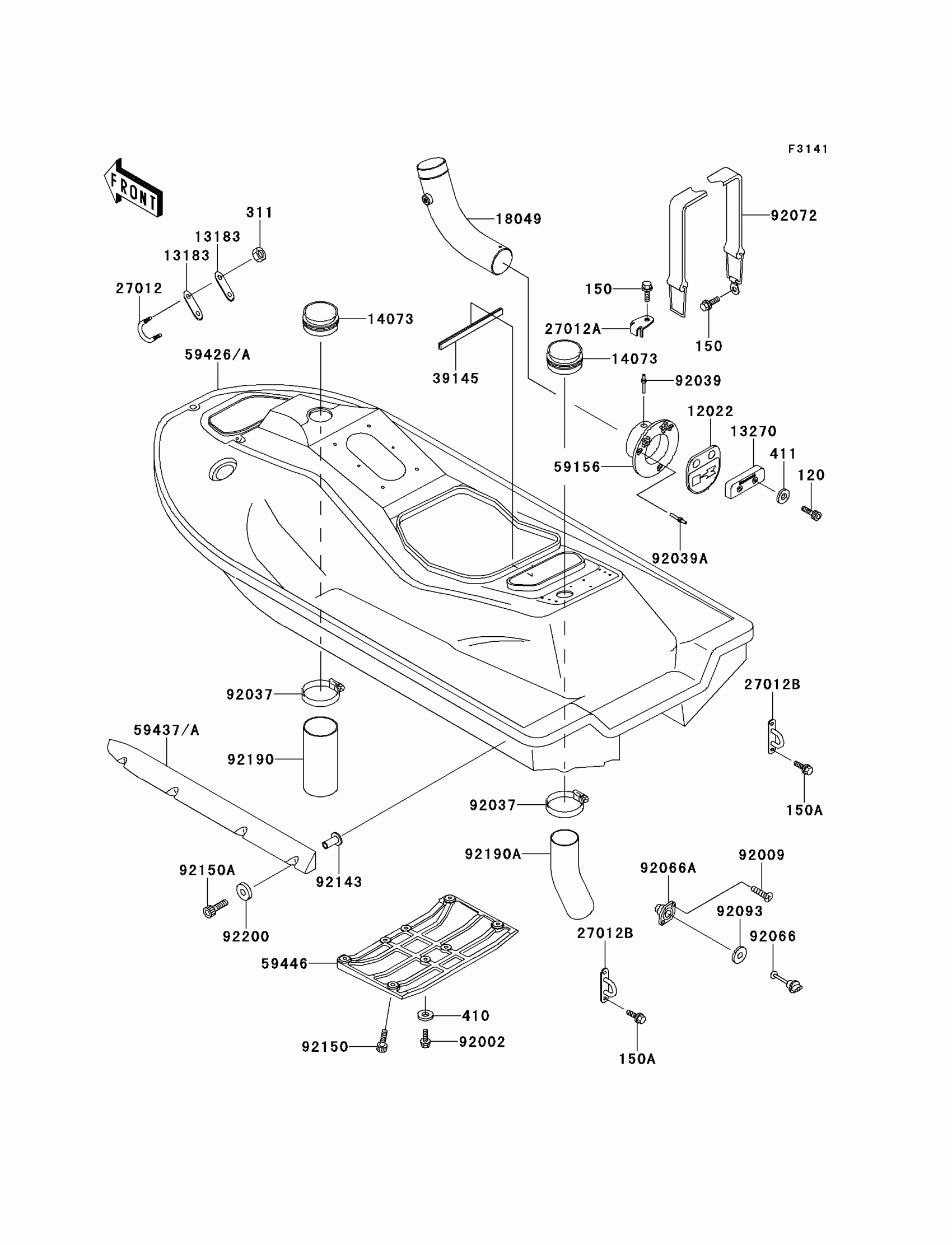

Kawasaki 900 ZXi Hull(JH900-A1/A2) Diagram

#

Description
Price

120

BOLT-SOCKET,6X16

120R0616

$2.76

150

BOLT-WS,6X14

150R0614

$5.22

150A

BOLT-WS,6X18

150R0618

$4.15

311

NUT-HEX,6MM

311R0600

$0.65

410

WASHER-PLAIN-SMALL,6MM

410S0600

Unavailable

411

WASHER-PLAIN,6MM

411S0600

$1.49

12022

VALVE-REED

12022-3705

Unavailable

13183

PLATE

13183-3809

$5.61

13270

PLATE

13270-3785

$7.97

14073

DUCT,AIR INTAKE

14073-3750

$13.56

18049

PIPE-EXHAUST

18049-3755

$87.83

27012

HOOK

27012-3761

$37.38

27012A

HOOK,WATER MUFFLER

27012-3777

$5.71

27012B

HOOK,REAR

27012-3782

$11.88

39145

TRIM-SEAL,L=280

39145-3745

Unavailable

59156

PIPE-TAIL

59156-3711

Unavailable

59437

STABILIZER,J.S.VIOLET

59437-3708-RE

Unavailable

59446

COVER-JET PUMP,J.S.VIOLET

59446-3728-23

Unavailable

92002

BOLT,6X20

92002-3755

$3.57

92009

SCREW,TAPPING,4X14

92009-3755

$2.10

92037

CLAMP

92037-541

$7.79

92039

RIVET,4.8MM

92039-3719

$5.42

92039A

RIVET

92039-3741

$1.23

92066

PLUG,RR,DRAIN

92066-3744

$16.76

92066A

PLUG,DRAIN

92066-3749

Unavailable

92072

BAND,WATER MUFFLER

92072-3781

$13.64

92093

SEAL

92093-3720

$2.75

92143

COLLAR

92143-3739

Unavailable

92150

BOLT,SOCKET,6X18

92150-3775

$3.57

92150A

BOLT,SOCKET,6X40

92150-3847

$4.24

92190

TUBE

92190-3962

Unavailable

92190A

TUBE

92190-3963

Unavailable

92200

WASHER,6.5X16X1.0

92200-3712

$2.84

59426A

HULL-COMP,J.S.VIOLET

59426-3836-23

$2,745.33
