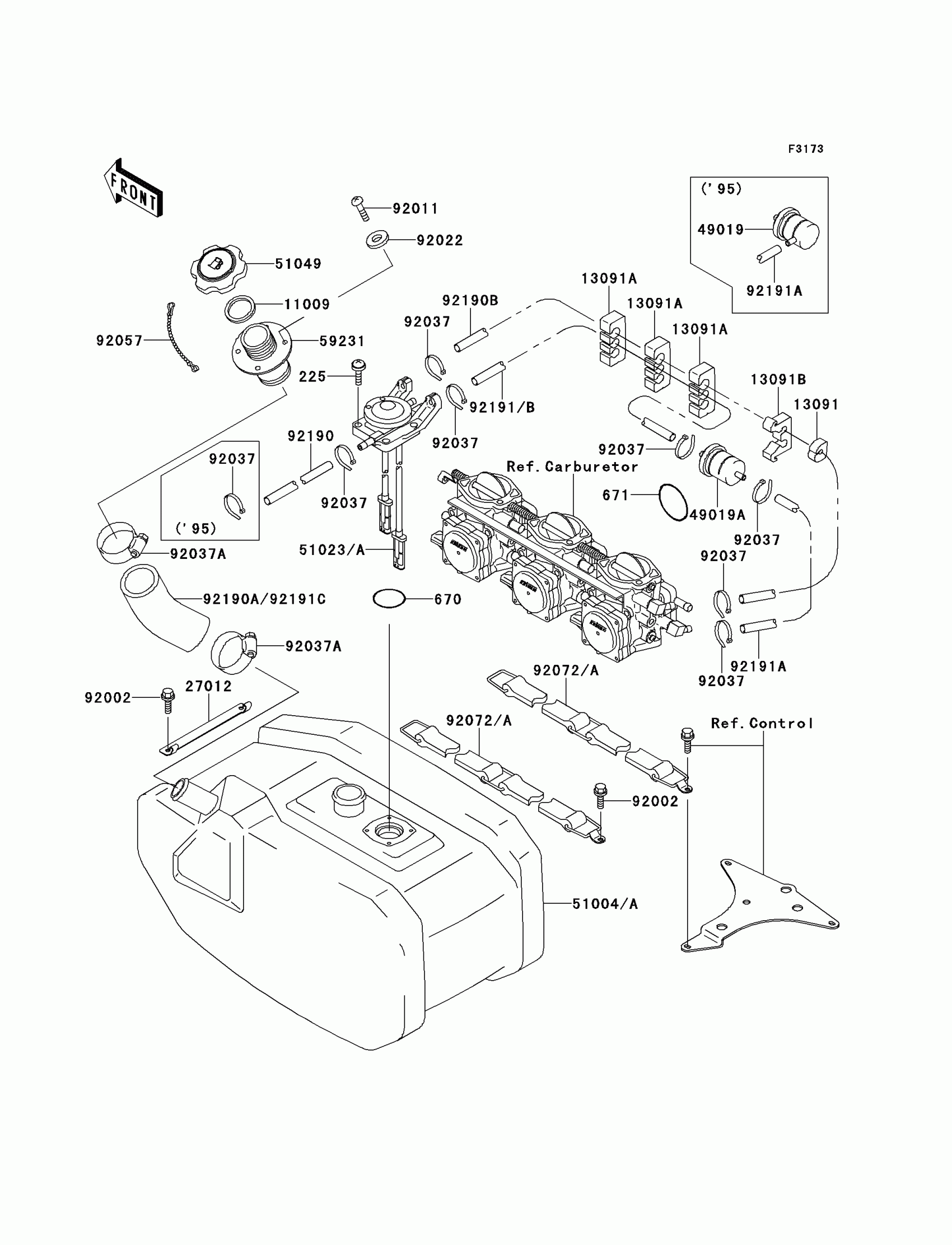

Kawasaki 900 ZXi Fuel Tank Diagram

#

Description
Price

225

SCREW-PAN-WSP-CROS,5X20

225R0520

$4.14

670

"0" RING,36MM

670B3036

$0.84

671

O RING,65MM

671B2565

$6.75

11009

GASKET,TANK CAP

11009-3020

$10.26

13091

HOLDER

13091-3712

$4.14

13091A

HOLDER,TUBE

13091-3758

$10.75

13091B

HOLDER,FILTER

13091-3795

$9.47

27012

HOOK,BOW EYE

27012-3766

$19.51

49019A

FILTER-FUEL

49019-3712

$44.32

51004A

TANK-FUEL

51004-3723

Unavailable

51023A

TAP-ASSY,FUEL

51023-3724

$136.92

51049

CAP-TANK,FUEL

51049-3719

$26.28

59231

FILLER,FUEL TANK

59231-3001

$13.40

92002

BOLT,6X16

92002-3728

$3.24

92011

SCREW

92011-562

$1.23

92022

WASHER

92022-563

$0.90

92037

CLAMP

92037-1173

$2.58

92037A

CLAMP

92037-3009

$3.25

92057

CHAIN,COVER,L=100

92057-3704

$14.56

92072A

BAND,FUEL TANK

92072-3797

$54.88

92190

TUBE,5.8X10.8X860

92190-3853

$28.90

92190B

TUBE,"RETURN"

92190-3988

$58.32

92191

TUBE,"ON",5.8X10.8X270

92191-3708

$12.17

92191A

TUBE,"ON",5.8X10.8X940

92191-3715

$25.07

92191C

TUBE,FUEL TANK-FILLER

92191-3755

Unavailable
