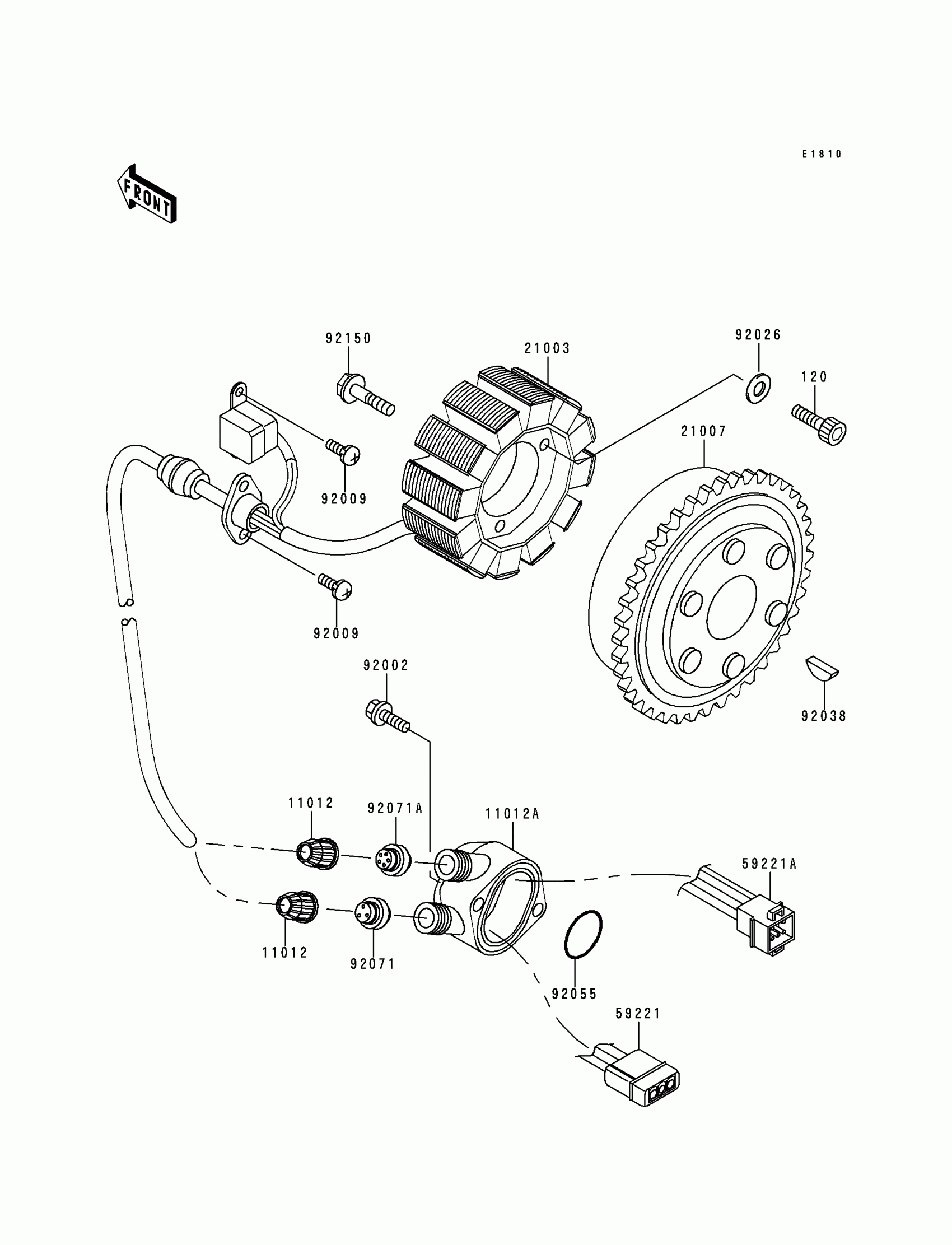

Kawasaki 900 STX Generator Diagram

Description

Price

120

BOLT-SOCKET,6X30

120P0630

Unavailable

11012

CAP

11012-3005

$4.18

11012A

CAP,ELECTRIC CASE

11012-3761

$16.88

21003

STATOR

21003-3730

$912.16

21007

ROTOR,MAGNETO

21007-3720

$827.67

59221

CONNECTOR-CORD

59221-3703

Unavailable

59221A

CONNECTOR-CORD

59221-506

Unavailable

92002

BOLT,6X35

92002-3715

$5.75

92009

SCREW,5X12

92009-1296

$3.53

92026

SPACER,6.3X12X1.0

92026-094

$8.92

92038

KEY,WOODRUFF

92038-001

$3.78

92055

RING-O

92055-3706

$3.55

92071

GROMMET

92071-3784

Unavailable

92071A

GROMMET

92071-3804

$3.51

92150

BOLT

92150-3843

$19.36
