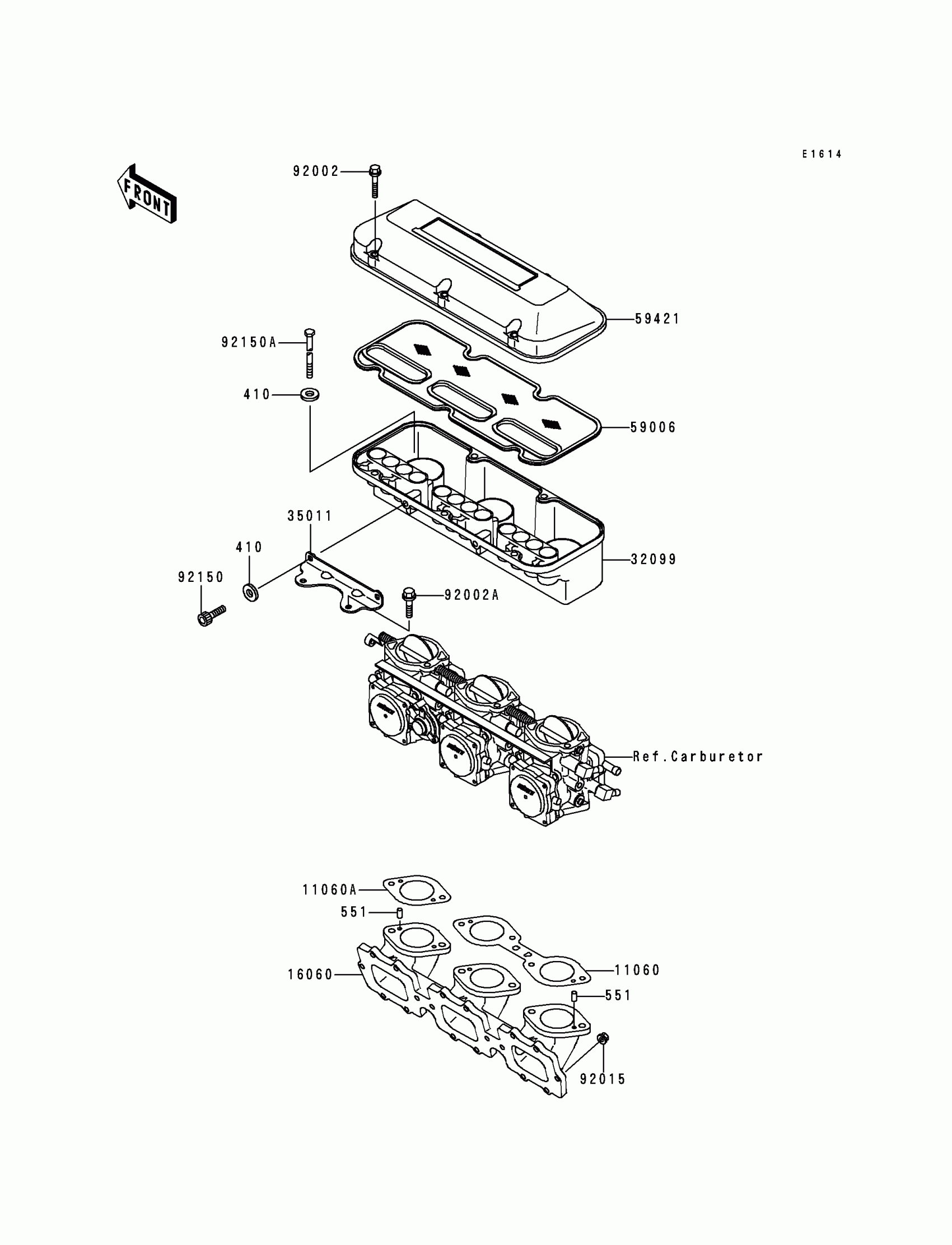

Kawasaki 900 STX Flame Arrester Diagram

Description

Price

410

WASHER-PLAIN-SMALL,6MM

410S0600

Unavailable

551

PIN-DOWEL

551R0408

$4.09

11060

GASKET,CARBURETOR

11060-3775

$21.73

11060A

GASKET

11060-3776

$10.24

16060

PIPE-INTAKE

16060-3705

Unavailable

32099

CASE

32099-3827

Unavailable

35011

STAY

35011-3713

Unavailable

59006

ARRESTER-FLAME

59006-3714

Unavailable

59421

COVER-INTAKE

59421-3727

Unavailable

92002

BOLT,6X30

92002-3726

$3.57

92002A

BOLT,6X16

92002-3728

$3.24

92015

NUT,6MM

92015-3767

$3.57

92150

BOLT,SOCKET,6X18

92150-3795

$3.57

92150A

BOLT,6X125

92150-3824

Unavailable
