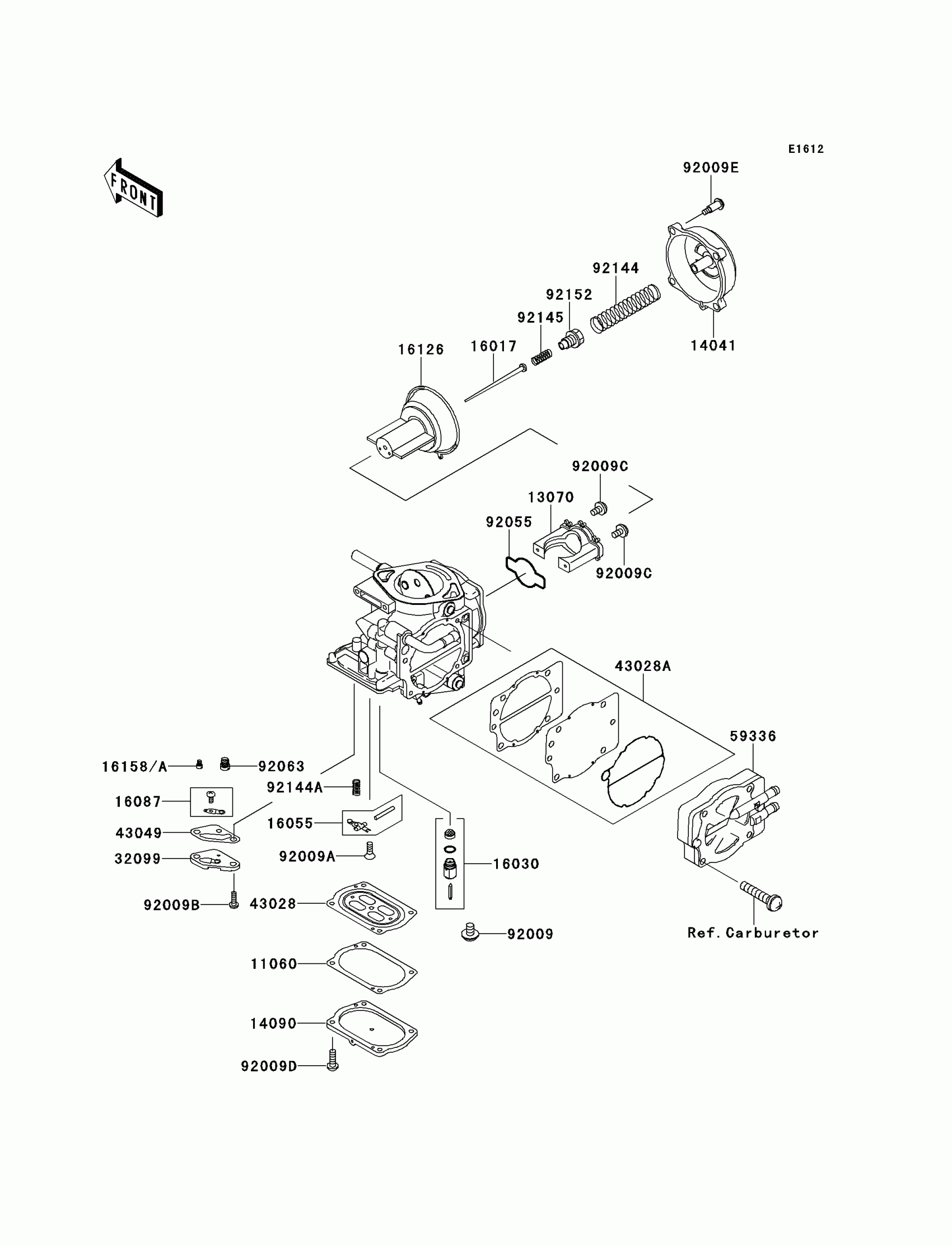

Kawasaki 900 STX Carburetor Parts(JT900-B1) Diagram

#

Description
Price

11060

GASKET,DIAPHRAGM COVER

11060-3789

$10.25

13070

GUIDE,VACUUM VALVE

13070-3726

$42.50

14041

COVER-COMP,MIXING

14041-1100

$88.63

14090

COVER,DIAPHRAGM

14090-3816

$36.55

16017

JET-NEEDLE,N7FB

16017-3704

$46.38

16030

VALVE-FLOAT

16030-3704

$47.47

16055

ARM-FLOAT

16055-3702

Unavailable

16087

VALVE-CHECK

16087-3706

Unavailable

16126

VALVE,VACUUM

16126-3705

Unavailable

16158

JET-SLOW,#38

16158-3722

$24.14

16158A

JET-SLOW,#35

16158-3726

$23.29

32099

CASE,JET

32099-3833

Unavailable

43028

DIAPHRAGM,CARBURETOR

43028-3711

$81.34

43028A

DIAPHRAGM

43028-3718

$66.39

43049

PACKING,JET CASE

43049-3713

$8.34

59336

CASE-PUMP

59336-3716

Unavailable

92009

SCREW

92009-1771

Unavailable

92009A

SCREW,3X8

92009-3712

$2.05

92009B

SCREW,4X8

92009-3804

$4.61

92009C

SCREW,VALVE GUIDE

92009-3839

$9.19

92009D

SCREW,DIAPHRAGM COVER

92009-3840

$2.42

92009E

SCREW,MIXING COVER

92009-3841

$2.62

92055

RING-O,VACUUM VALVE GUIDE

92055-3749

Unavailable

92063

JET-MAIN,#165

92063-3720

$21.46

92144

SPRING,VACUUM VALVE

92144-1962

$24.24

92144A

SPRING,FLOAT ARM

92144-3764

Unavailable

92145

SPRING,JET NEEDLE

92145-3707

Unavailable

92152

COLLAR,JET NEEDLE

92152-3706

$24.24
