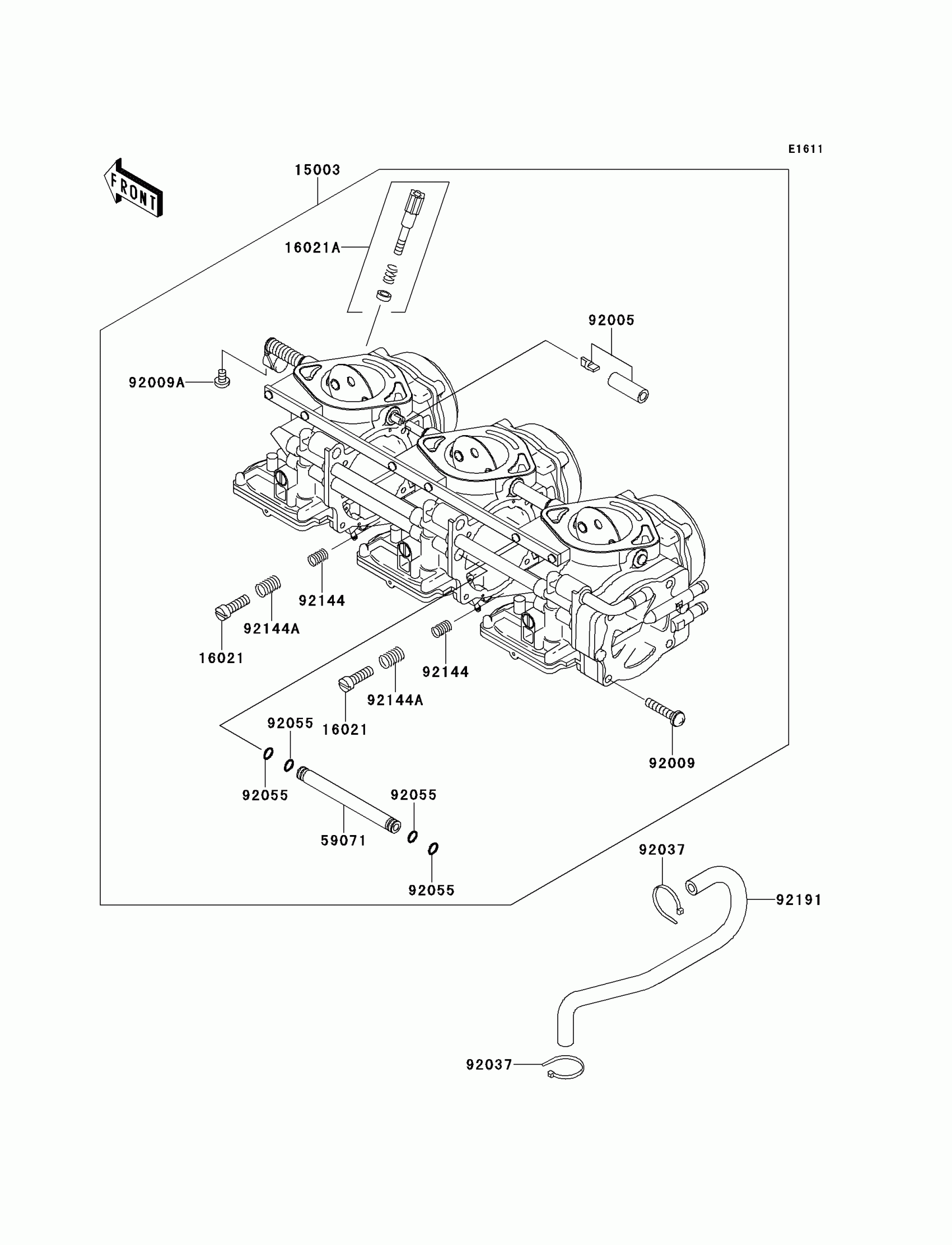

Kawasaki 900 STX Carburetor(JT900-B1) Diagram

Description

Price

15003

CARBURETOR-ASSY

15003-3727

$1,324.73

16021

SCREW-THROTTLE STOP

16021-3704

$43.71

16021A

SCREW-THROTTLE STOP

16021-3707

$51.79

59071

JOINT

59071-3762

$139.65

92005

FITTING

92005-3729

Unavailable

92009

SCREW,5X28

92009-3783

Unavailable

92009A

SCREW,4X6

92009-3786

$4.15

92037

CLAMP

92037-1173

$2.92

92055

RING-O

92055-1246

$3.57

92144

SPRING,ADJUST SCREW

92144-3704

Unavailable

92144A

SPRING,THROTTLE STOP SCREW

92144-3745

$7.81

92191

TUBE

92191-3852

Unavailable
