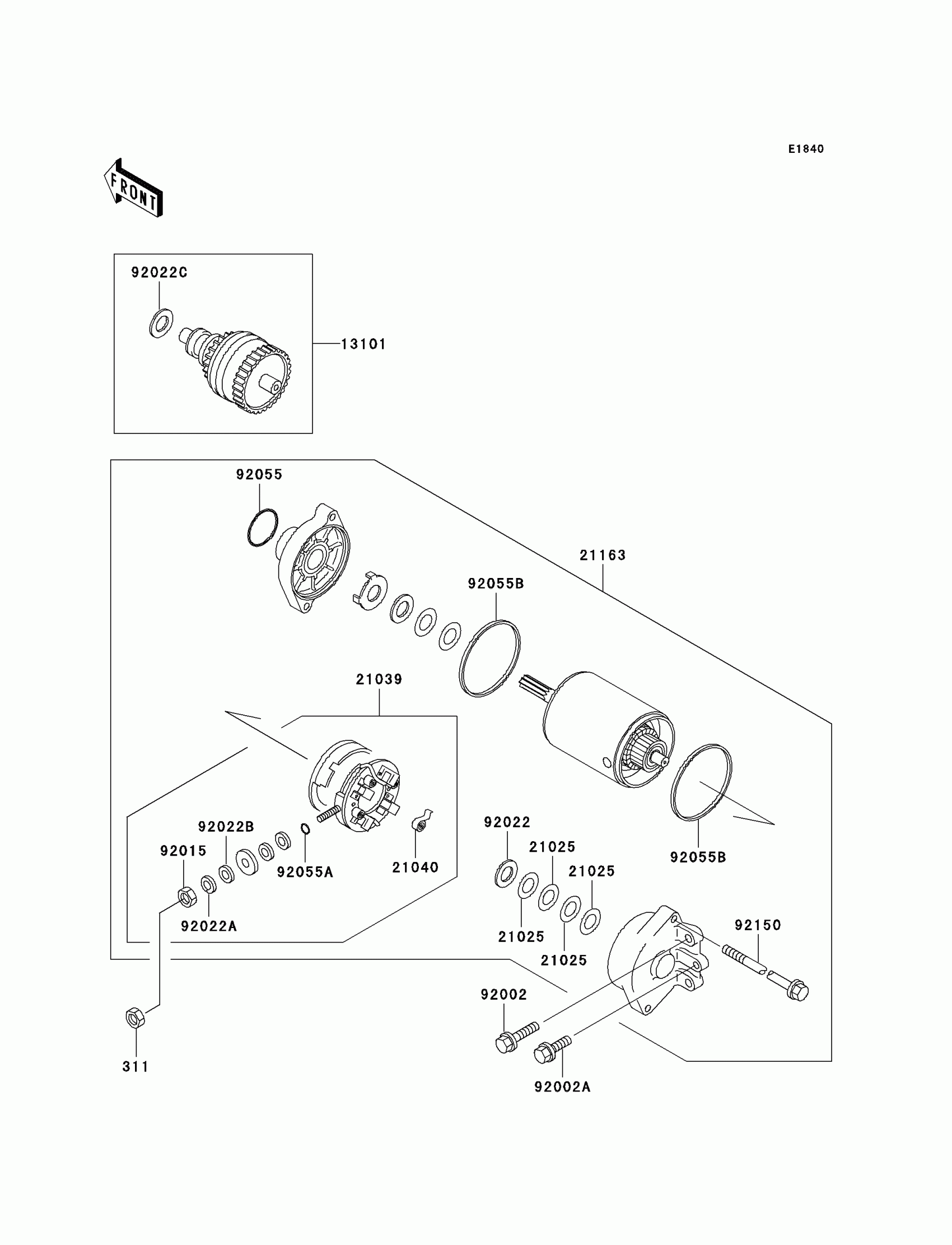

Kawasaki 900 STS Starter Motor Diagram

Description

Price

311

NUT-HEX,6MM

311R0600

$0.65

13101

GEAR-ASSY

13101-3708

$468.90

21025

WASHER,9.1X18X0.2

21025-011

$4.67

21039

BRUSH,CARBON

21039-3703

$85.95

21040

SPRING-BRUSH

21040-1055

$8.24

21163

STARTER-ELECTRIC

21163-3709

Unavailable

92002

BOLT,6X25

92002-3714

$3.81

92002A

BOLT,6X12

92002-3763

$3.57

92015

NUT,6MM

92015-3710

$3.75

92022

WASHER,9.1X18X0.8

92022-1132

$5.42

92022A

WASHER,6MM

92022-3711

$3.75

92022B

WASHER,6MM

92022-3713

$2.19

92022C

WASHER,12X24X1.0

92022-3731

$4.93

92055

RING-O

92055-1276

$7.54

92055A

RING-O,4.5X2.0

92055-1370

$4.17

92055B

RING-O,STARTER MOTOR

92055-1381

$9.58

92150

BOLT

92150-3772

$24.61
