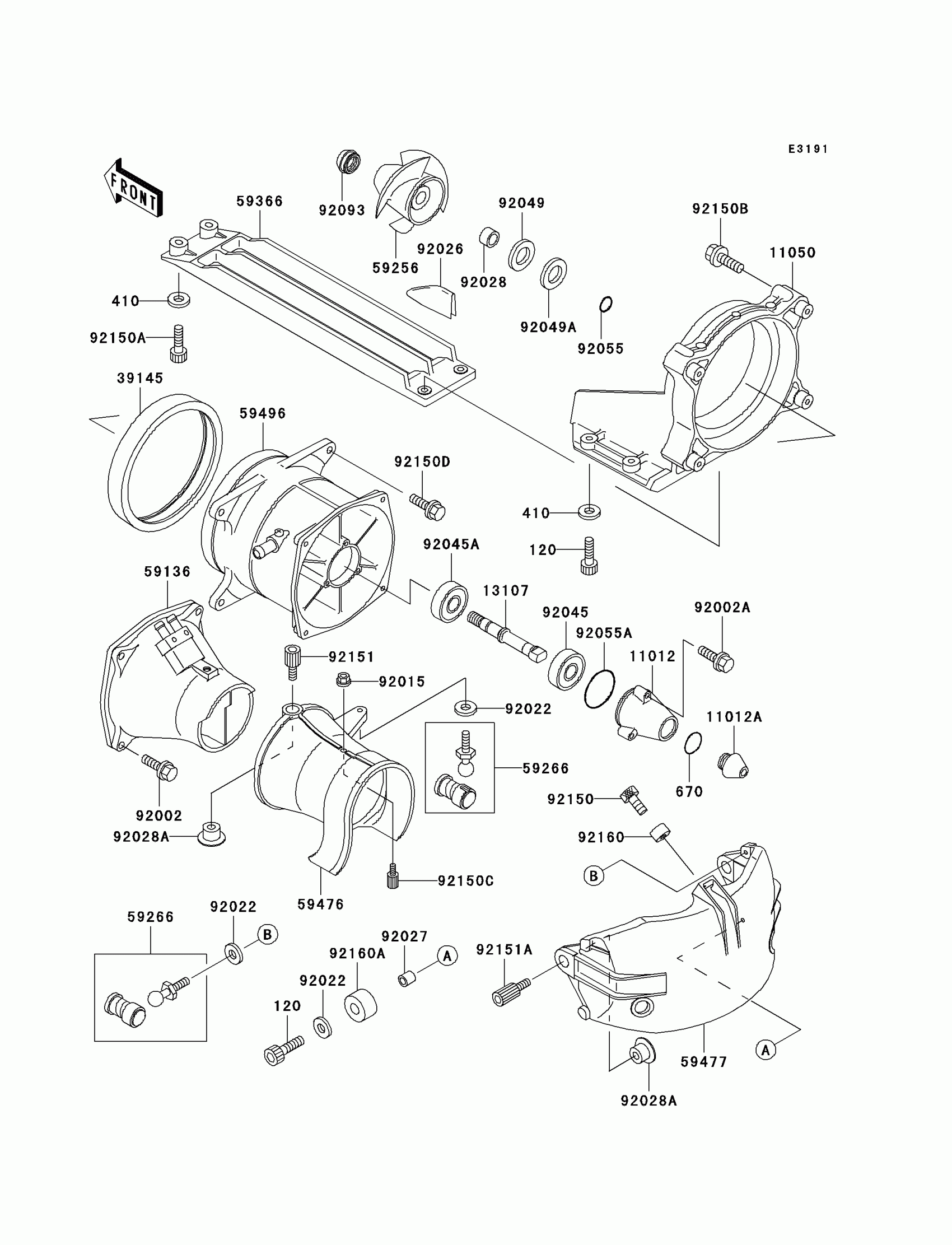

Kawasaki 900 STS Jet Pump Diagram

#

Description
Price

120

BOLT-SOCKET,6X20

120R0620

$2.74

410

WASHER-PLAIN-SMALL,6MM

410S0600

Unavailable

670

O RING,20MM

670B2020

$0.97

11012

CAP

11012-3771

$51.36

11012A

CAP

11012-3772

Unavailable

11050

BRACKET

11050-3784

$341.23

13107

SHAFT,JETPUMP

13107-3737

$83.04

39145

TRIM-SEAL

39145-3742

$40.42

59136

NOZZLE-PUMP

59136-3745

Unavailable

59256

IMPELLER

59256-3752

Unavailable

59266

JOINT-BALL

59266-3707

$59.33

59366

GRATE

59366-3712

$105.63

59476

NOZZLE-STRG

59476-3733

$146.96

59477

BUCKET-REVERSE

59477-3707

$514.56

59496

VANE-GUIDE

59496-3713

$1,130.73

92002

BOLT,6X35

92002-3715

$5.75

92002A

BOLT,6X30

92002-3726

$3.57

92015

NUT,6MM

92015-3767

$3.57

92022

WASHER

92022-567

$1.89

92026

SPACER

92026-3731

$12.78

92027

COLLAR,6.2X10X10

92027-3705

$8.63

92028

BUSHING

92028-3750

$36.81

92028A

BUSHING

92028-3757

$6.72

92045

BEARING-BALL,62022RD

92045-3721

$18.00

92045A

BEARING-BALL,6303-132RD

92045-3722

Unavailable

92049

SEAL-OIL

92049-3717

$29.85

92049A

SEAL-OIL

92049-3718

$33.00

92055

RING-O,13.0X1.9

92055-1011

$5.81

92055A

RING-O

92055-3741

$2.30

92093

SEAL

92093-3749

$3.78

92150

BOLT,SOCKET,6X10

92150-3759

$4.15

92150A

BOLT,SOCKET,6X18

92150-3775

$3.57

92150B

BOLT,FLANGED,8X30

92150-3803

$5.61

92150C

BOLT

92150-3808

Unavailable

92150D

BOLT,8X30

92150-3828

$5.75

92151

BOLT

92151-3710

$16.88

92151A

BOLT

92151-3716

$16.88

92160

DAMPER

92160-3738

$13.64

92160A

DAMPER

92160-3739

$4.92
