2002 Kawasaki 900 STS Hull Fittings Diagram

← All diagrams

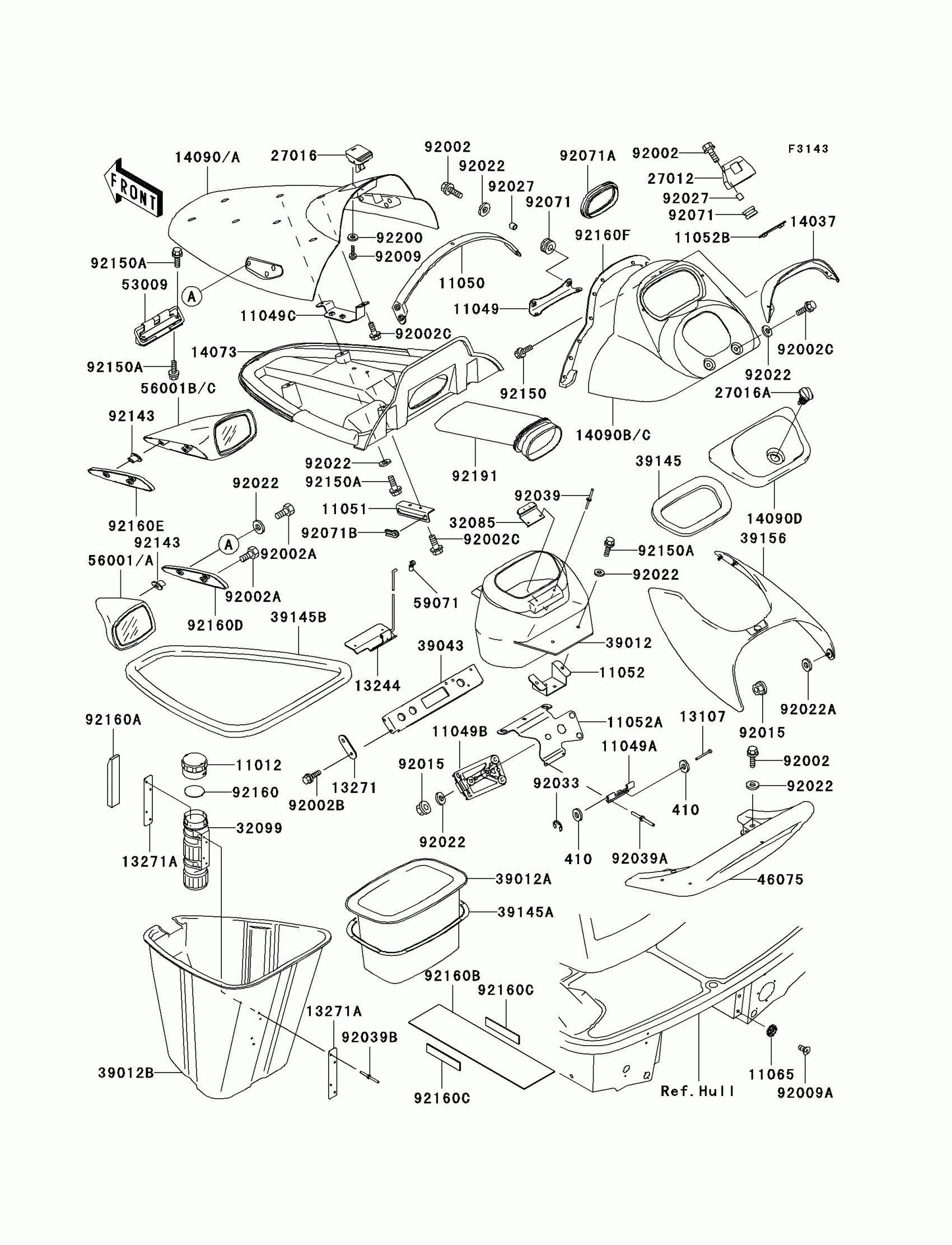

Find the part on the Hull Fittings diagram for your 2002 Kawasaki 900 STS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Kawasaki 900 STS Hull Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,FIRE EXTINGUISHER

11012-3766

1
Out of stock

11049

BRACKET,HANDLE COVER

11049-3716

1
Out of stock

11049A

BRACKET

11049-3717

1
Out of stock

11049B

BRACKET

11049-3718

1
Out of stock

11049C

BRACKET,HATCH COVER

11049-3736

1
Out of stock

11050

BRACKET,HATCH COVER

11050-3739

1
Out of stock

11051

BRACKET,HATCH COVER

11051-3725

1
Out of stock

11052

BRACKET,FUEL FILTER

11052-3715

1
Out of stock

11052A

BRACKET

11052-3716

1
Out of stock

11052B

BRACKET,HATCH COVER LOCK

11052-3727

1
Out of stock

11065

CAP,STEP NUT

11065-3712

1
Out of stock

13107

SHAFT,3X32

13107-3745

1
Out of stock

13244

STOPPER-ASSY,HATCH COVER

13244-3701

1
Out of stock

13271

PLATE

13271-3738

1
Out of stock

13271A

1

$12.07

In stock

14037

SCREEN,METER,F.BLACK

14037-3710-6Z

1
Out of stock

14073

DUCT,FR

14073-3758

1

$138.44

In stock

14090

COVER,HATCH,F.RED

14090-3769-B1

1
Out of stock

14090B

COVER,HANDLE,F.RED

14090-3770-B1

1
Out of stock

14090D

COVER,CENTER STORAGE,J.WHITE

14090-3771-8C

1
Out of stock

27012

HOOK,HATCH COVER LOCK

27012-3803

1
Out of stock

27016

LOCK-ASSY,HATCH COVER

27016-3737

1
Out of stock

27016A

LOCK-ASSY,STORAGE COVER

27016-3743

1
Out of stock

32085

STOPPER,STORAGE LOCK

32085-3726

1
Out of stock

32099

CASE,FIRE EXTINGUISHER

32099-3769

1
Out of stock

39012

CASE-STORAGE,CNT

39012-3719

1
Out of stock

39012A

CASE-STORAGE,RR

39012-3720

1
Out of stock

39012B

CASE-STORAGE,FR

39012-3726

1
Out of stock

39043

CROSSMEMBER-COMP

39043-3703

1

$104.42

In stock

39145

TRIM-SEAL

39145-3754

1
Out of stock

39145A

TRIM-SEAL,STORAGE CASE

39145-3755

1
Out of stock

39145B

TRIM-SEAL,L=1380

39145-3773

1

$79.19

In stock

39156

PAD,KNEE,BEIGE/BOULOGNE

39156-3811-PQ

1
Out of stock

46075

GRIP,TAIL,F.BLACK

46075-3745-6Z

1

$243.30

In stock

53009

HINGE,HATCH COVER

53009-3725

1

$120.15

In stock

56001

MIRROR-ASSY,LH,F.RED

56001-3709-6L

1
Out of stock

56001B

MIRROR-ASSY,RH,F.RED

56001-3710-6L

1
Out of stock

410

W-PLAIN-S,3MM

410S0300

1
Out of stock

59071

JOINT

59071-3743

1
Out of stock

92002

BOLT,6X25

92002-3714

1
Out of stock

92002A

BOLT,6X40

92002-3716

1
Out of stock

92002B

BOLT,6X20

92002-3755

1
Out of stock

92002C

BOLT,6X12

92002-3763

1
Out of stock

92009

SCREW,5X16

92009-3789

1
Out of stock

92009A

SCREW,6X12

92009-3852

1
Out of stock

92015

NUT,6MM

92015-3767

1
Out of stock

92022

WASHER,6.5X20X1.5

92022-3710

1
Out of stock

92022A

WASHER,6.2X20X2

92022-3714

1
Out of stock

92027

COLLAR,6.2X10X10

92027-3705

1
Out of stock

92033

RING-SNAP,2MM

92033-3711

1
Out of stock

92039

RIVET,4MM

92039-3703

1
Out of stock

92039A

RIVET

92039-3748

1
Out of stock

92039B

RIVET

92039-3755

1
Out of stock

92071

GROMMET

92071-3716

1
Out of stock

92071A

GROMMET

92071-3812

1
Out of stock

92071B

GROMMET

92071-3816

1
Out of stock

92143

COLLAR

92143-3763

1
Out of stock

92150

BOLT,5X14

92150-3702

1
Out of stock

92150A

BOLT,6X18

92150-3729

1
Out of stock

92160

DAMPER

92160-3814

1
Out of stock

92160A

DAMPER

92160-3821

1
Out of stock

92160B

DAMPER

92160-3839

1
Out of stock

92160C

DAMPER

92160-3840

1
Out of stock

92160D

DAMPER,MIRROR,LH,F.BLACK

92160-3869-6Z

1
Out of stock

92160E

DAMPER,MIRROR,RH,F.BLACK

92160-3870-6Z

1
Out of stock

92160F

DAMPER,HANDLE COVER

92160-3897

1
Out of stock

92191

TUBE

92191-3867

1
Out of stock

92200

WASHER,5.9X16X1.5

92200-3714

1
Out of stock
