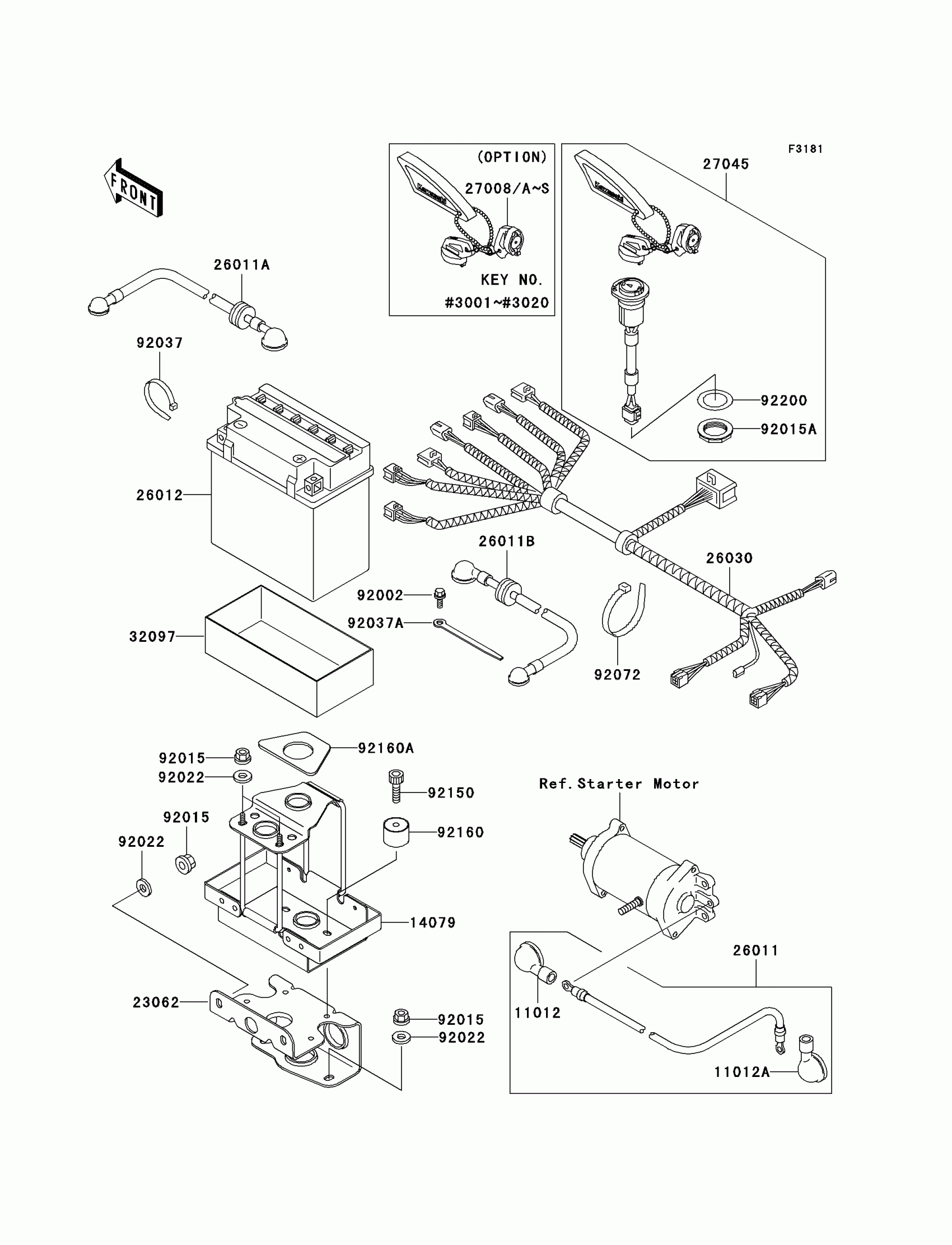

Kawasaki 900 STS Electrical Equipment Diagram

#

Description
Price

11012

CAP

11012-3004

$7.44

11012A

CAP,LEAD WIRE

11012-3726

$7.71

14079

HOLDER-ASSY,BATTERY MOUNT

14079-3715

Unavailable

23062

BRACKET-COMP,BATTERY MOUNT

23062-3720

Unavailable

26011

WIRE-LEAD,RELAY-STARTER

26011-3797

$66.79

26011A

WIRE-LEAD,BATTERY(-)-STARTER

26011-3850

$130.43

26011B

WIRE-LEAD,BATTERY(+)-RELAY

26011-3851

$75.63

26012

BATTERY,YTX20L-BS,12V 18AH

26012-3728

$150.70

26030

HARNESS,MAIN

26030-3741

$451.85

27008

KEY-LOCK,MAGNETIC SW,#3001

27008-3745

$75.48

27008A

KEY-LOCK,MAGNETIC SW,#3002

27008-3746

Unavailable

27008B

KEY-LOCK,MAGNETIC SW,#3003

27008-3747

Unavailable

27008C

KEY-LOCK,MAGNETIC SW,#3004

27008-3748

$75.48

27008D

KEY-LOCK,MAGNETIC SW,#3005

27008-3749

$75.48

27008E

KEY-LOCK,MAGNETIC SW,#3006

27008-3750

$75.48

27008F

KEY-LOCK,MAGNETIC SW,#3007

27008-3751

Unavailable

27008G

KEY-LOCK,MAGNETIC SW,#3008

27008-3752

$75.48

27008H

KEY-LOCK,MAGNETIC SW,#3009

27008-3753

$75.48

27008I

KEY-LOCK,MAGNETIC SW,#3010

27008-3754

Unavailable

27008J

KEY-LOCK,MAGNETIC SW,#3011

27008-3755

$75.48

27008K

KEY-LOCK,MAGNETIC SW,#3012

27008-3756

$75.48

27008L

KEY-LOCK,MAGNETIC SW,#3013

27008-3757

$75.48

27008M

KEY-LOCK,MAGNETIC SW,#3014

27008-3758

Unavailable

27008N

KEY-LOCK,MAGNETIC SW,#3015

27008-3759

Unavailable

27008O

KEY-LOCK,MAGNETIC SW,#3016

27008-3760

$75.48

27008P

KEY-LOCK,MAGNETIC SW,#3017

27008-3761

Unavailable

27008Q

KEY-LOCK,MAGNETIC SW,#3018

27008-3762

Unavailable

27008R

KEY-LOCK,MAGNETIC SW,#3019

27008-3763

$75.48

27008S

KEY-LOCK,MAGNETIC SW,#3020

27008-3764

Unavailable

27045

SWITCH-ASSY,MAIN

27045-3716

$362.14

32097

CASE-BATTERY,BOTTOM

32097-1034

Unavailable

92002

BOLT,6X16

92002-3728

$3.24

92015

NUT,6MM

92015-3767

$3.57

92015A

NUT

92015-3848

$4.85

92022

WASHER,6.5X20X1.5

92022-3710

$2.76

92037

CLAMP

92037-1173

$2.58

92037A

CLAMP,L=100

92037-3736

$4.85

92072

BAND,L=201

92072-3778

$1.61

92150

BOLT,SOCKET,6X18

92150-3775

$3.57

92160

DAMPER

92160-3738

$13.64

92160A

DAMPER,BATTERY

92160-3909

$3.58

92200

WASHER

92200-3736

$2.66
