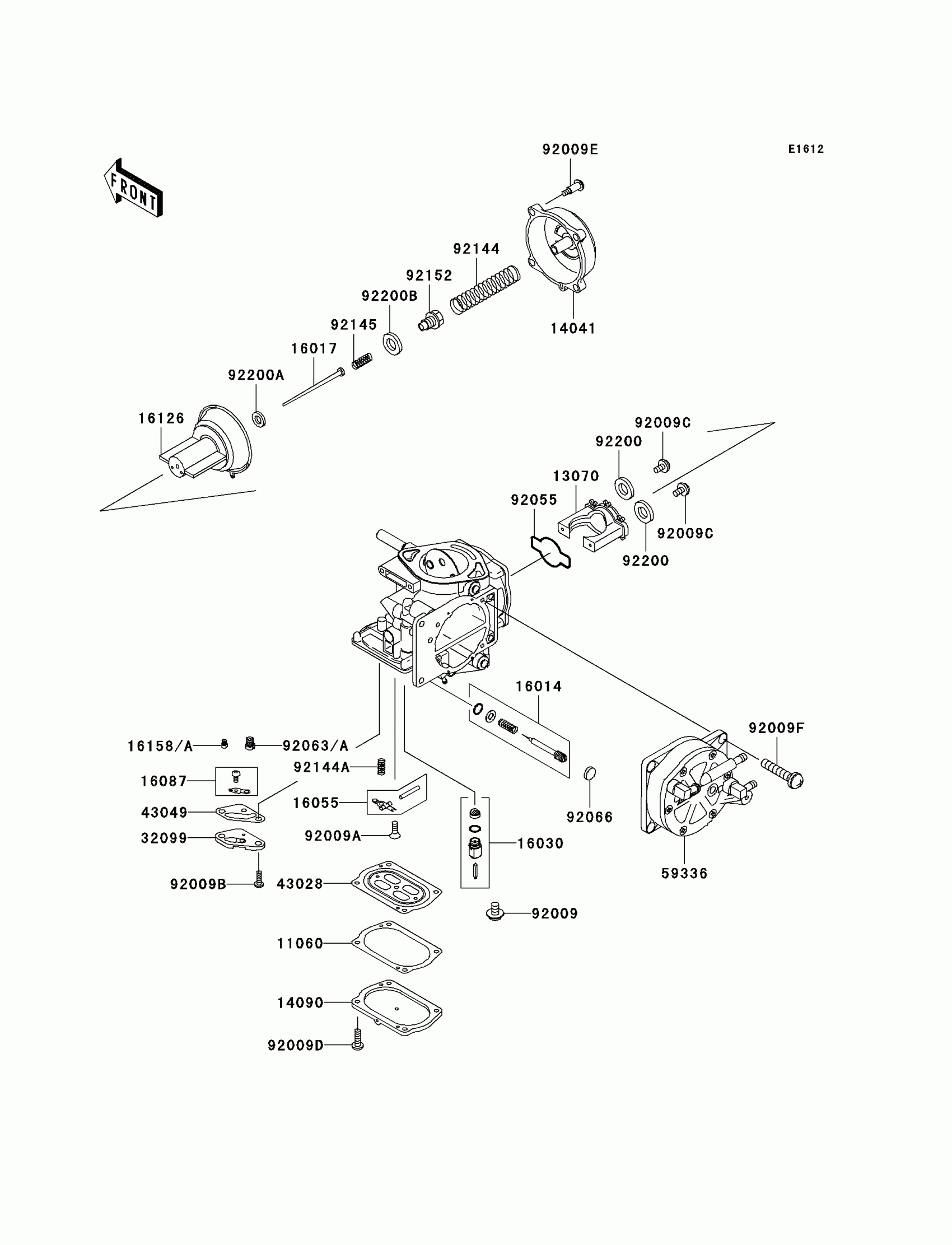

Find the part on the Carburetor Parts diagram for your 2002 Kawasaki 900 STS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Kawasaki 900 STS Carburetor Parts Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

1

$10.25

In stock

13070

GUIDE,VACUUM VALVE

13070-3726

1

$42.50

In stock

14041

COVER-COMP,MIXING

14041-1100

1

$88.63

In stock

14090

COVER,DIAPHRAGM

14090-3816

1

$36.55

In stock

16014

SCREW-PILOT AIR

16014-3702

1
Out of stock

16017

JET-NEEDLE,N7FC

16017-3707

1

$47.36

In stock

16030

VALVE-FLOAT

16030-3704

1

$47.47

In stock

16055

ARM-FLOAT

16055-3702

1
Out of stock

16087

VALVE-CHECK

16087-3706

1
Out of stock

16126

VALVE,VACUUM

16126-3705

1
Out of stock

16158

JET-SLOW,#38

16158-3722

1

$24.14

In stock

16158A

JET-SLOW,#35

16158-3726

1

$23.29

In stock

32099

CASE,JET

32099-3833

1
Out of stock

43028

1

$81.34

In stock

43049

PACKING,JET CASE

43049-3713

1

$8.34

In stock

59336

CASE-PUMP,DIAPHRAGM

59336-3718

1

$182.58

In stock

92009

SCREW

92009-1771

1
Out of stock

92009A

SCREW,3X8

92009-3712

1
Out of stock

92009B

SCREW,4X8

92009-3804

1
Out of stock

92009C

SCREW,VALVE GUIDE

92009-3839

1
Out of stock

92009D

SCREW,DIAPHRAGM COVER

92009-3840

1
Out of stock

92009E

SCREW,MIXING COVER

92009-3841

1
Out of stock

92009F

SCREW,6X16

92009-3865

1
Out of stock

92055

RING-O,VACUUM VALVE GUIDE

92055-3749

1
Out of stock

92063

JET-MAIN,#165

92063-3720

1

$21.46

In stock

92063A

JET-MAIN,#155

92063-3723

1

$18.42

In stock

92066

1

$3.83

In stock

92144

SPRING,VACUUM VALVE

92144-1962

1

$24.24

In stock

92144A

SPRING,FLOAT ARM

92144-3764

1
Out of stock

92145

SPRING,JET NEEDLE

92145-3719

1

$9.71

In stock

92152

COLLAR,JET NEEDLE

92152-3706

1
Out of stock

92200

WASHER,VALVE GUIDE

92200-3772

1
Out of stock

92200A

WASHER,JET NEEDLE

92200-3773

1
Out of stock

92200B

WASHER,JET NEEDLE COLLAR

92200-3774

1
Out of stock
