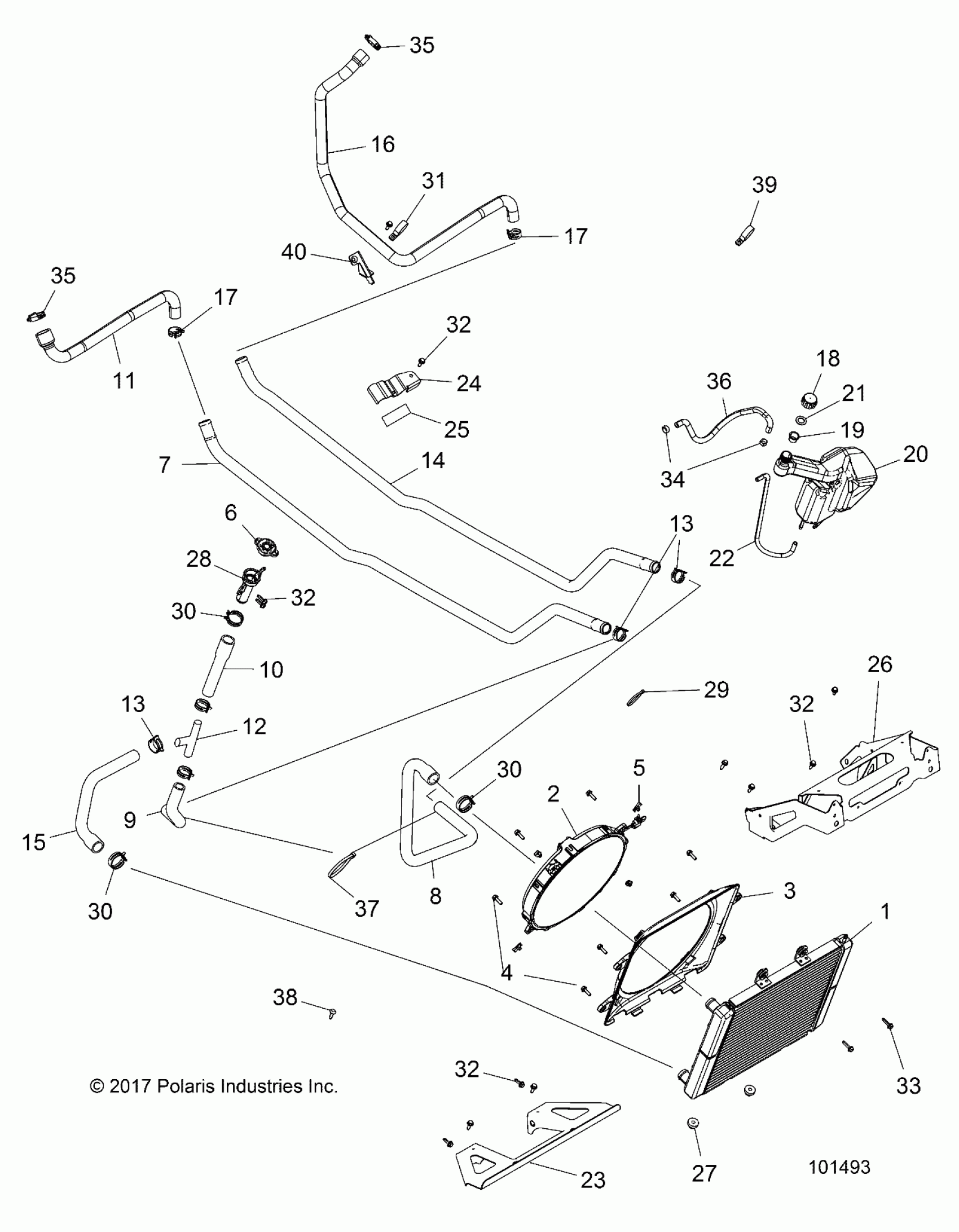

Polaris 900 ACE EPS XC (R08) - A18DCE87BB ENGINE, COOLING SYSTEM - A18DCE87BB (101493) Diagram

#

Description
Price

1

ASM-RADIATOR,CORE

1241093

$580.94

2

FAN-11" ASSEMBLY,ATV,PKRD

2410413

$267.13

3

SHROUD-FAN,RADIATOR

5453434

$32.37

5

CLIP-"U",M6.0X1.0

7547366

$5.99

6

CAP-PRESSURE

1240300

$40.46

7

TUBE-COOLANT,3/4,ENG IN

5140812

Unavailable

8

HOSE-RADIATOR,COOLANT IN

5416015

$48.56

9

HOSE-COOLANT,FRONT

5416006

$15.37

10

HOSE-COOLANT,FRONT

5416053

$15.37

11

HOSE-COOLANT,REAR,ENG IN

5415528

$36.41

12

CONNECTOR-TEE, 3/4", BARB

7052093

$8.73

13

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.14

13

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.14

14

TUBE-COOLANT,3/4,ENG OUT

5140811

Unavailable

15

HOSE-RADIATOR,COOLANT OUT

5416014

$40.46

16

HOSE-COOLANT,REAR,ENG OUT

5415527

$56.65

17

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.14

17

SPRINGBAND-CLAMP 27/12,GREEN

7080841

$7.14

18

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

19

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

20

TANK-COOLANT

5452401

$76.89

21

GASKET-OVERFLOW CAP

5810279

$2.41

22

HOSE-POLY,CLEAR,3/8 OD,1/4 ID

8450003-47

$5.65

23

MNT-RADIATOR,LOWER,ECOAT

5262812-329

$97.76

24

CLAMP-COOLANT LINES

5258169

$11.11

25

PAD-BATTERY

5810290

Unavailable

26

MNT-RADIATOR,UPPER,E-COAT

5262813-329

$97.76

27

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.56

28

FILLER-REMOTE,COOLANT,SMALL

5439079

$32.37

29

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.41

30

SPRINGBAND-CLAMP 32/12,BROWN

7080843

$3.97

30

SPRINGBAND-CLAMP 32/12,BROWN

7080843

$3.97

30

SPRINGBAND-CLAMP 32/12,BROWN

7080843

$3.97

31

CLAMP-HOSE,1.312 VINYL COATED

7080851

Unavailable

32

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

32

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

32

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

32

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

33

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.99

34

HOSE CLAMP, RED

7080003

$1.19

35

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.94

35

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.94

36

LINE

8450120-40

$72.84

37

TIEWRAP-EVAP

7080924

$7.94

38

SCR-TXPH-#14X3/4 HI/LO CLR

7519290

$3.97

39

CLAMP-VINYL COATED,1.00IN ID

7081854

$5.56

40

BRKT-HOSE,COOLANT

5264570

$10.51
