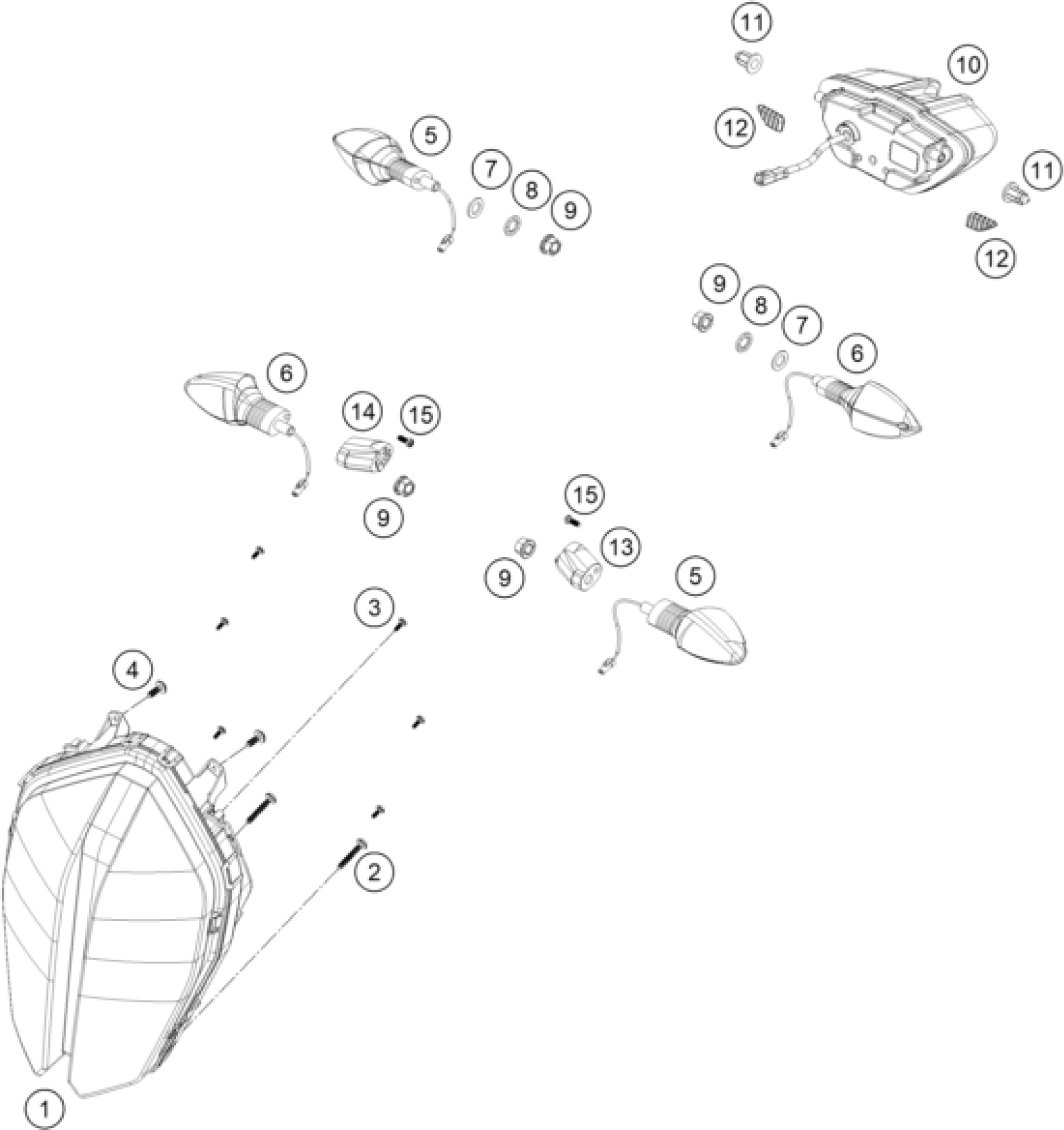

KTM 890 Duke R 2020 LIGHTING SYSTEM Diagram

#

Description

Price

1

Headlight

63614001000

Unavailable

2

Ejot PT screw 4x25 WN 5451

0081040253

Unavailable

3

Ejot PT screw 3x8 WN 5451 blac

0081030081

Unavailable

4

SCREW FOR PLASTIC K45X12 T20

0081045121

Unavailable

5

FLASHER CPL.FRONT L/S REAR R/S

60114025000

Unavailable

6

FLASHER CPL.FRONT R/S REAR L/S

60114026000

Unavailable

7

Washer DIN0433-M10

0433100003

Unavailable

8

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

9

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

10

Tail light

64114040000

Unavailable

11

Rubber damper top

64108015060

Unavailable

12

Rubber damper bottom

64108015070

Unavailable

13

Indicator carr. extension USA

61614525030

Unavailable

14

Indicator Extension USA right

61614525040

Unavailable

15

SCREW FOR PLASTIC PT K50X14T25

0081250141

Unavailable
