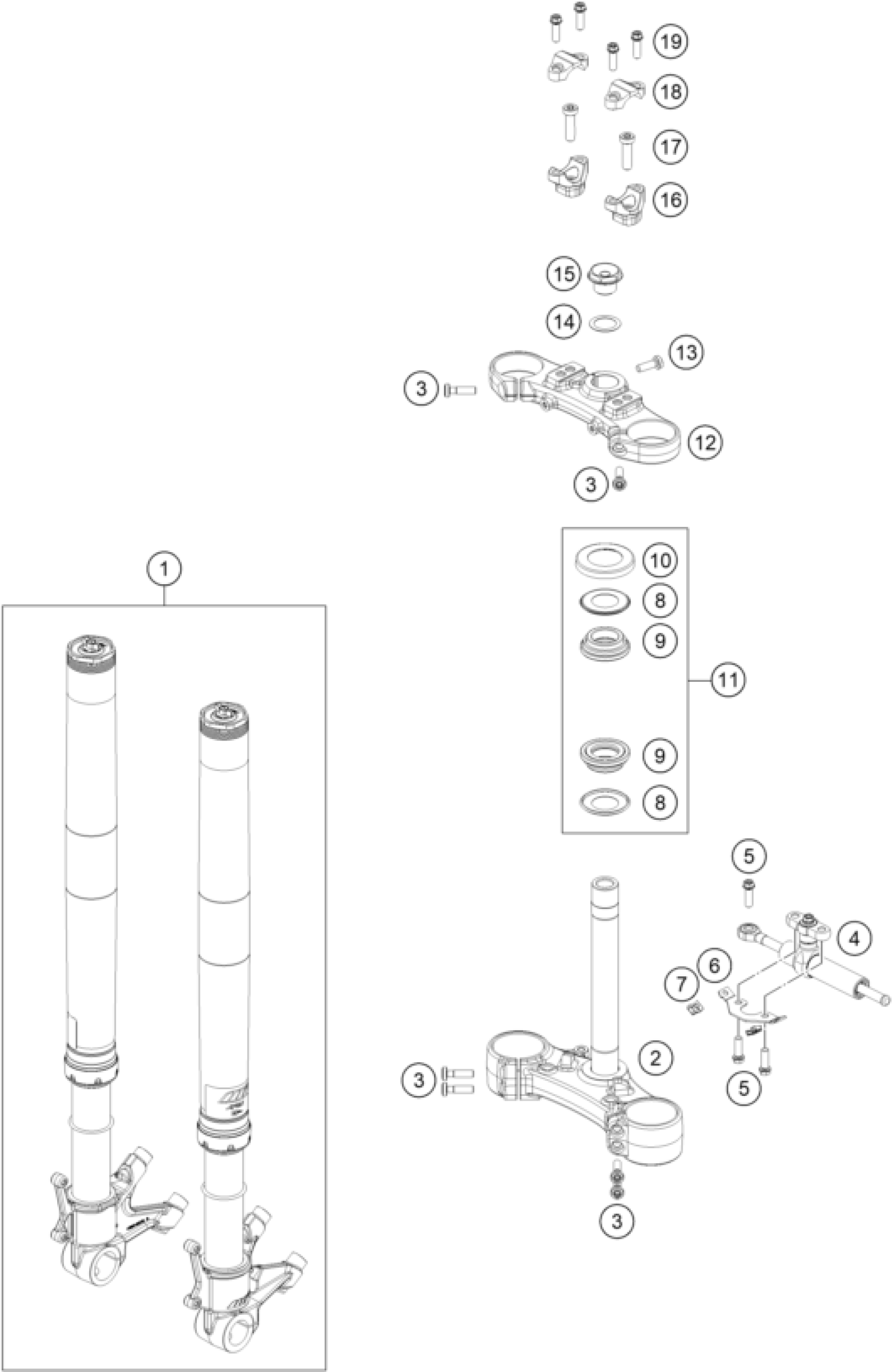

KTM 890 Duke R 2020 FRONT FORK, TRIPLE CLAMP Diagram

#

Description

Price

1

Fork KTM 890 Duke R 20

05588T4901

Unavailable

2

Triple clamp bottom cmpl. X=32

6360103203230S

Unavailable

3

AH collar screw M8x30 ISA45

0035080306

Unavailable

4

Steering damper cpl.

16181R54E

Unavailable

5

HH COLLAR SCREW M8X25 TX40

0025080256S

Unavailable

6

Retaining bracket brake line g

6410104400033

Unavailable

7

clip nut M5

69008021080

Unavailable

8

Stearing head gasket

69001084100

Unavailable

9

STEERINGHEAD KPL.17

69001181000

Unavailable

10

PROT. RING STEER. HEAD BEARING

69001086100

Unavailable

11

Stearing head rep. Kit

69001181010

Unavailable

12

Upper Triple Clamp

6410103403230S

Unavailable

13

ISA collar screw M8x25 ISA45

0035080256S

Unavailable

14

Shim ring

63601042000

Unavailable

15

Steering head screw M20x1.5 WS

54801036000C1

Unavailable

16

HANDLEB.SUPP. D=28MM H=37MM

5940103903730

Unavailable

17

AH-COLLAR SCREW M10X40 ISA45

0032100406S

Unavailable

18

HANDLEBAR CLAMP 28MM

7720103800030

Unavailable

19

HH collar screw M8x25

0025080256

Unavailable
