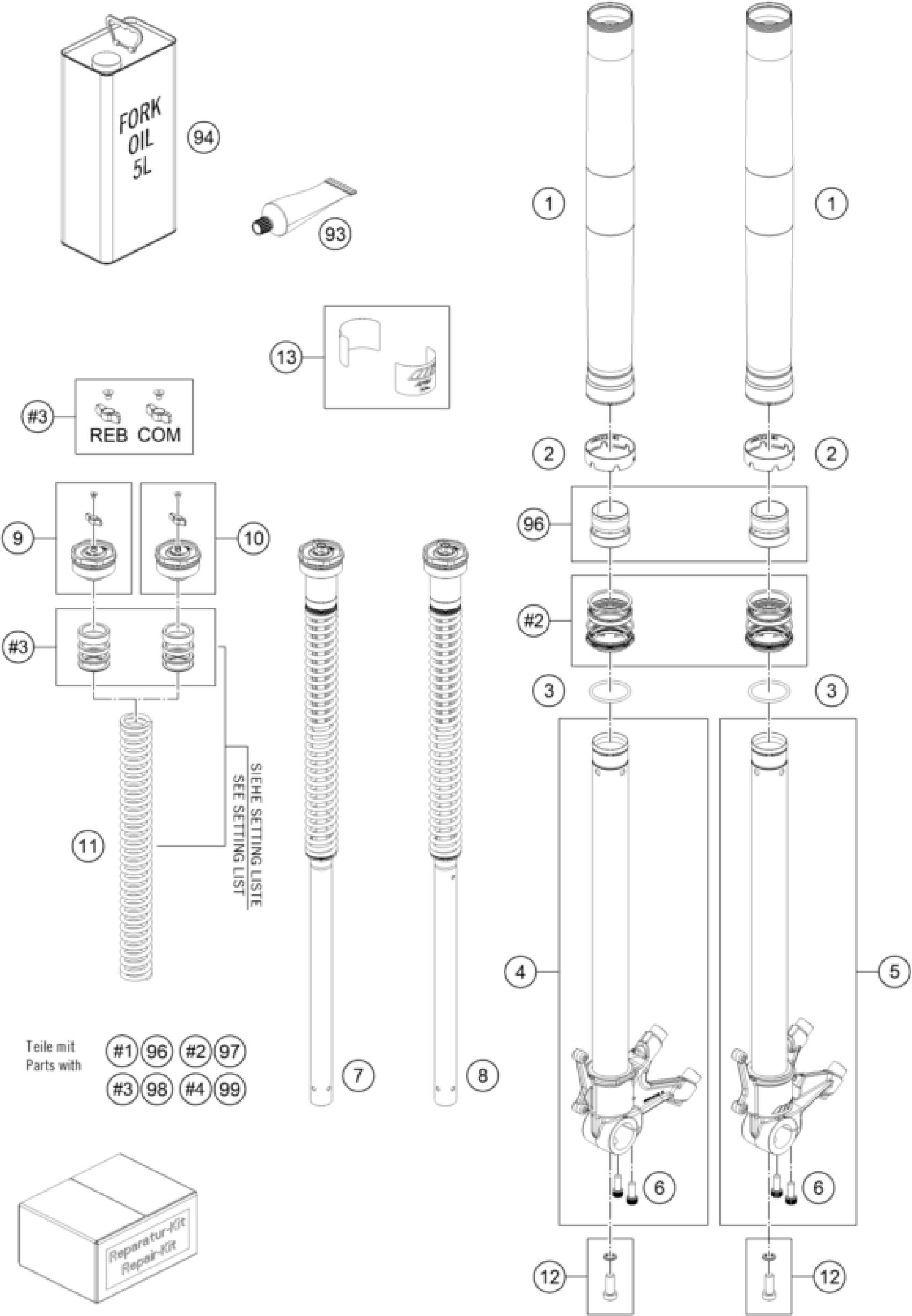

KTM 890 Duke R 2020 FRONT FORK DISASSEMBLED Diagram

#

Description

Price

1

Fork outer tube 44,13x540 dt54

43578241

Unavailable

2

Fork protection ring d43

43578206

Unavailable

96

GUIDE BUSHING SET

R14042T

Unavailable

97

Fork sealing kit 43mm

R516T

Unavailable

3

O-ring 40x2,5 VMQ70 red ISO 36

43578219

Unavailable

4

Axle clamp right d43mm schwarz

43578260S1

Unavailable

5

Axle clamp left d43mm schwarz

43578259S1

Unavailable

6

HH collar screw M8x20

0025080206

Unavailable

12

HS cylinder-head screw M10x25

43578177S1

Unavailable

7

Cartridge right 890 Duke R 20

43578244S1

Unavailable

8

Cartridge left 890 Duke R cpl.

43578195S4

Unavailable

9

Screw cap M51x1.5 black right

43578240S

Unavailable

10

Screw cap M51x1.5 black left c

43578239S

Unavailable

98

Shim Kit Fork

RP80002

Unavailable

11

mainspring (38.2) 6.5-350 set

95010100S

Unavailable

11

main spring (38.2) 7.5-320 for

43578297S

Unavailable

11

mainspring (38.2) 8.5-350 set

95010101S

Unavailable

99

Adjuster kit fork

RP10026T

Unavailable

13

Sticker set APEX OC 90x40

52000210SET

Unavailable

93

Fuchs grease IPR (250g)

T14034

Unavailable

94

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable
