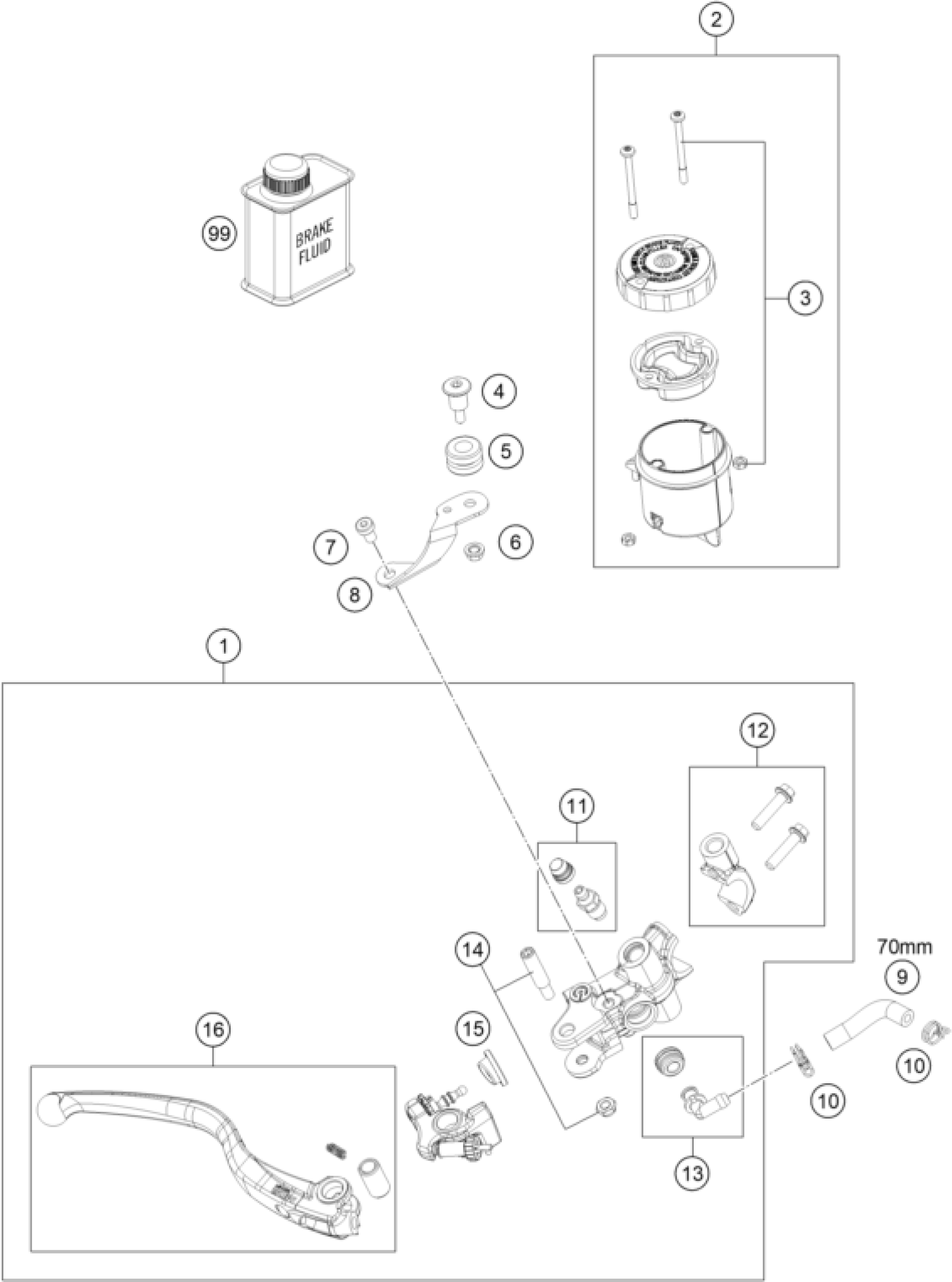

KTM 890 Duke R 2020 FRONT BRAKE CONTROL Diagram

#

Description

Price

1

Brake cylinder

63613001000C1

Unavailable

2

BRAKE FLUID RESERV. BLACK CPL.

61313029000

Unavailable

3

SCREW + NUT F. RESERVOIR

61013009203

Unavailable

4

SCREW RET.PANEL-RESERVOIR

61013013050

Unavailable

5

RUBBER BUSH 05

61013013000

Unavailable

6

NUT FOR RESERVOIR

61013009004

Unavailable

7

SCREW RET.PANEL-BRAKE CYLINDER

61013021000

Unavailable

8

Retaining brkt., front brake f

61513028000

Unavailable

9

HOSE FOR RESERVOIR 6X1,5

69013069001

Unavailable

10

YDNAC-clamp 10101 (10.4MM)

58007017000

Unavailable

11

BLEEDER SCREW WITH CAP

60013020000

Unavailable

12

CLAMP CPL. 16

76013005100

Unavailable

13

ANGLE PIECE

54513155000

Unavailable

14

LEVER SCREW CPL. 05

61013006000

Unavailable

15

RUBBER CUP 05

61013008000

Unavailable

16

Hand brake lever black

63613002000C1

Unavailable

99

Brake fluid DOT5.1 0,25L

00062030000

Unavailable
