REAR WHEEL

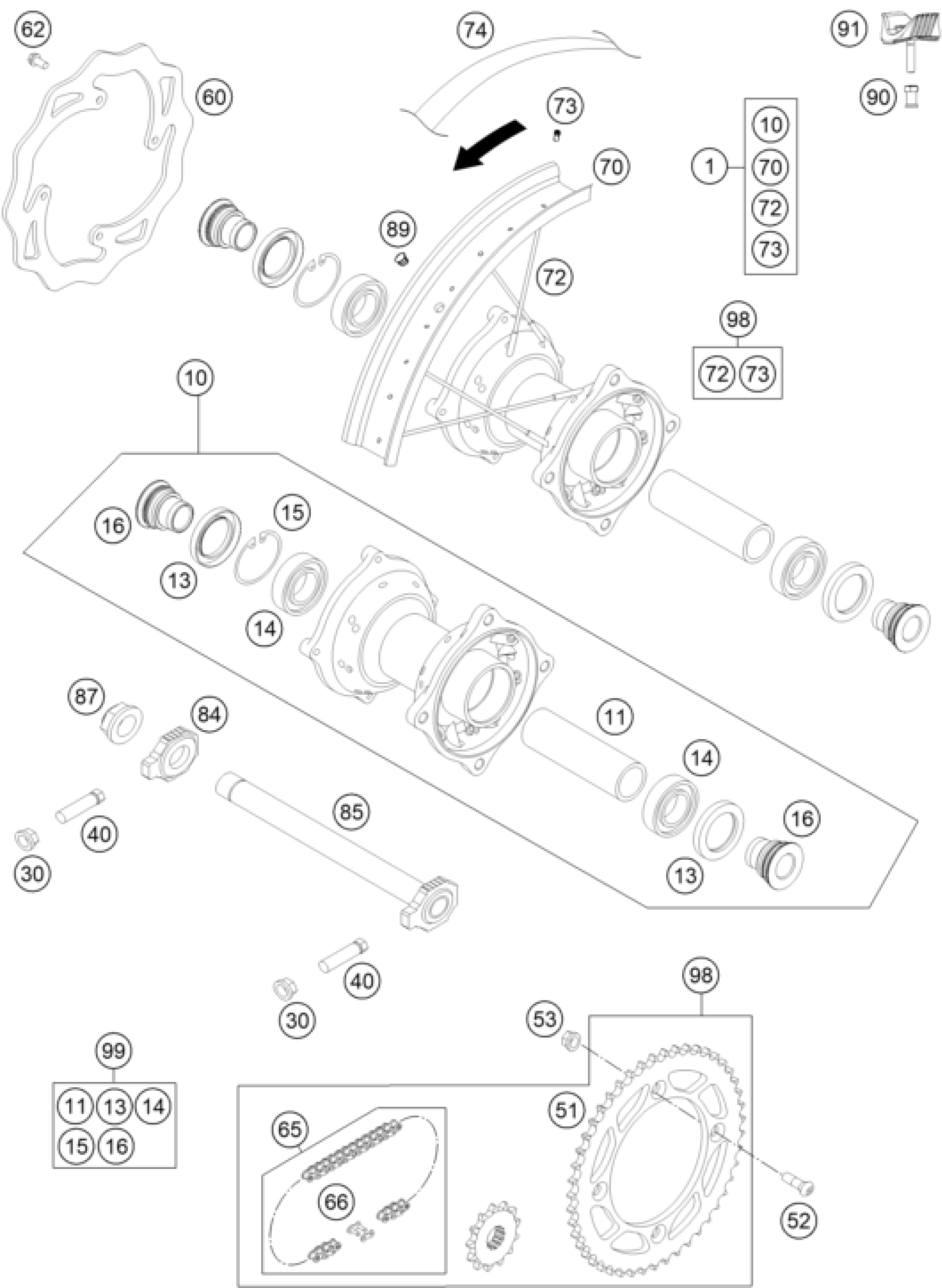

KTM 85 SX 19/16 2015 REAR WHEEL Diagram
#
10
REAR WHEEL HUB CPL. 12
70010010044
Unavailable
11
BEAR.SPACER TUBE ´12
70010011000
Unavailable
13
Radial shaft seal 32X47X7 BSL
0760324771
Unavailable
14
Grooved ball bear.6005 DDU2CG2
0625060058
Unavailable
15
CIRCLIP DIN0472-47X1,75
0472047175
Unavailable
16
BUSHING FOR HUB 08
78010016000
Unavailable
30
flanged nut M8 WS10
46030045000
Unavailable
40
HH SCREW M8X40 WS=10
50203030090
Unavailable
1
REAR WHEEL CPL. 16'' 201
47110001144
Unavailable
51
REAR SPROCKET 44-T 85 SX 03
47010051044
Unavailable
51
REAR SPROCKET 45-T 85 SX 03
47010051045
Unavailable
51
REAR SPROCKET 46-T 85 SX 03
47010051046
Unavailable
51
REAR SPROCKET 47-T 85 SX 03
47010051047
Unavailable
51
REAR SPROCKET 48-T 85 SX 03
47010051048
Unavailable
51
REAR SPROCKET 49-T 85 SX 03
47010051049
Unavailable
51
REAR SPROCKET 50-T 85 SX 03
47010051050
Unavailable
51
REAR SPROCKET 51-T 85 SX 06
47010051051
Unavailable
52
COUNTER-SUNK SCREW ISA45 M8X26
0019080266S
Unavailable
53
Self locking nut M8 10.9
54310086200
Unavailable
60
REAR BRAKE DISC
47010060500
Unavailable
62
SPECIAL SCREW M6X16 WS=8 10.9
59009062016
Unavailable
65
CHAIN 124 ROLLS 85 SX
47010165124
Unavailable
66
CONNECTING LINK 85 SX
47010166000
Unavailable
70
RIM REAR AL4 16X1,85-32
47110070100
Unavailable
72
Spoke M4.5X168-16" black
4711007116830
Unavailable
73
Spoke nipple M4.5 AL
77109072000
Unavailable
74
Tube protector 85 SX 16"
47010073200
Unavailable
84
Chain tensioner right 12
70010084000
Unavailable
85
WHEEL SPINDLE REAR CPL. 12
70010085044
Unavailable
87
Hexagon nut M20x1.5
50310099000
Unavailable
89
PLUG FOR RIM
55003135000
Unavailable
90
NUT FOR WHEEL HOLDER
77110090050
Unavailable
91
Rim lock 1.85"
70010090000
Unavailable
98
DRIVETRAIN KIT 105 SX 14T/49T
00050002003
Unavailable
99
REAR WHEEL REP. KIT
70010015000
Unavailable
97
SPOKE KIT REAR ''16'' 85 SX 13
00050000968
Unavailable
